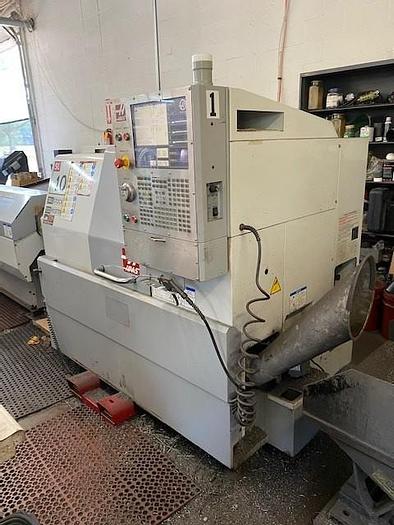

2007 Haas SL-10T
No longer available
2007 Haas SL-10T
$27,950 (USD)
Location:Wichita, KS
Description

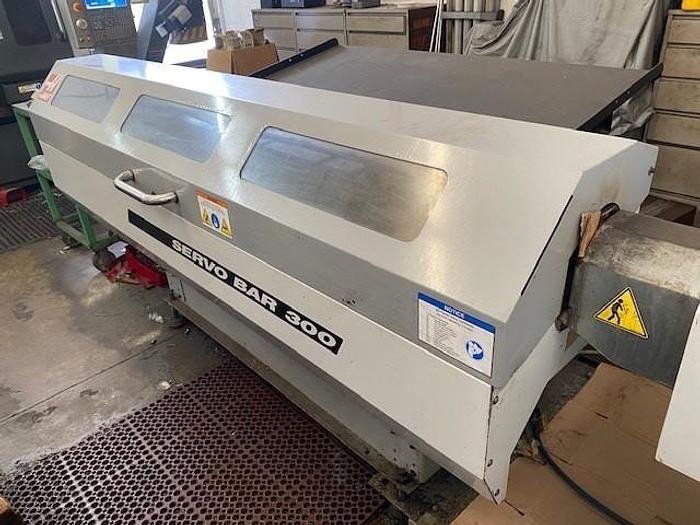

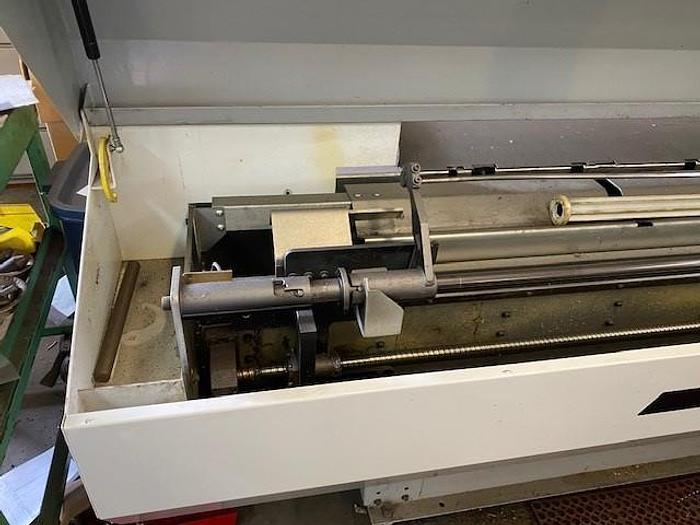

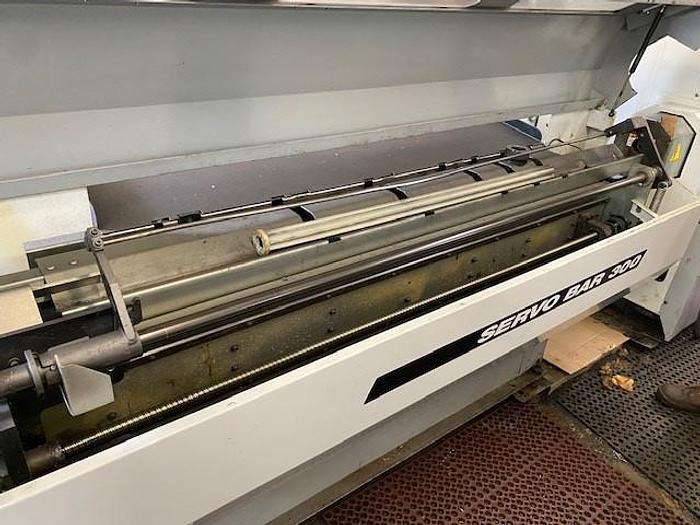

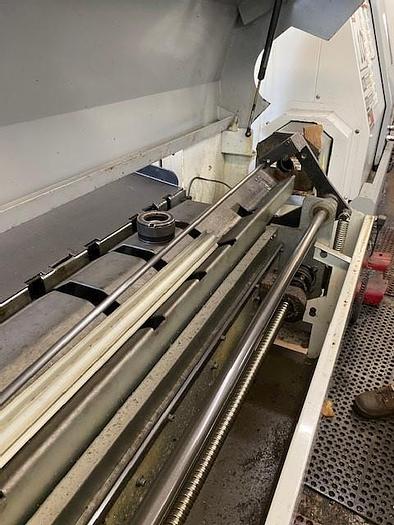

Haas Servo Bar 300 Barfeed
Tool Presetter
Tailstock
Chip Auger
Collet Chuck
6" 3-Jaw Hydraulic Chuck
Parts Catcher
Floppy Disk Drive
Rigid Tapping
Color LCD Monitor
16 MB Memory
Spindle Orientation
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | SL-10T |
| Year | 2007 |
| Condition | Used |
| Stock Number | 117678 |

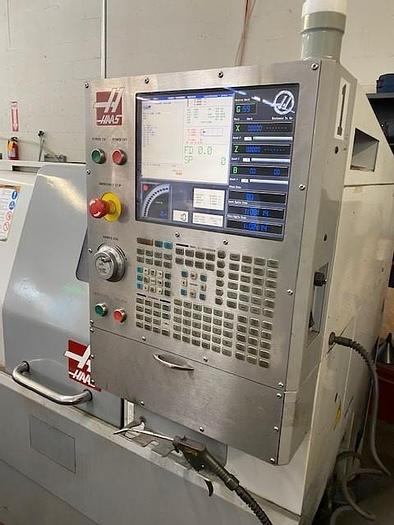

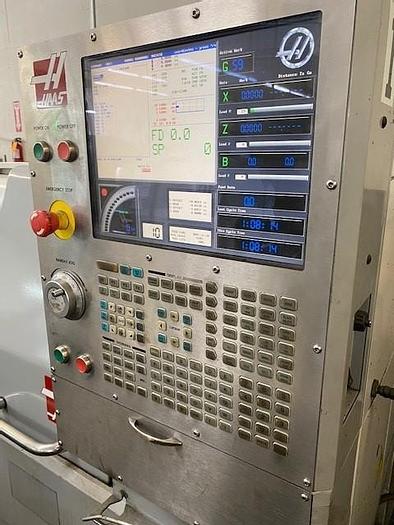

| Machine Control | Haas 32 Bit |
| Chuck Size | Collet Chuck |
| Maximum Swing | 16.25 |
| Maximum Swing Over Cross Slide | 8" |
| Maximum Machining Diameter | 11" |
| Distance Between Centers | 16.5" |
| X-axis travel | 6.25" |
| Z-Axis Travel | 14" |
| Spindle Speeds | 6,000 rpm |
| Spindle Nose / Spindle Bore | A2-5 / 2.31" |
| Spindle Motor | 15 hp |

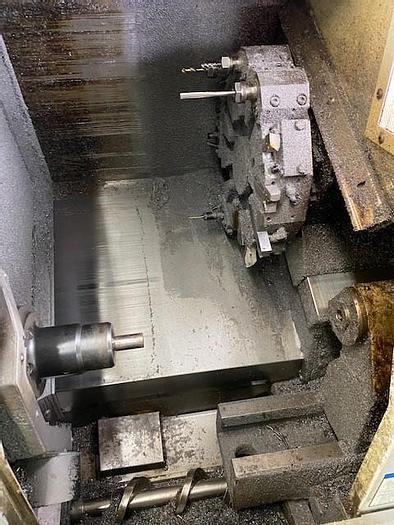

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1,200 ipm |
| Tailstock Center / Diameter | #3 MT / NA |
| Tailstock Quill Travel | 4" |
| Machine Dimensions LxWxH | 96"x54"x70" |
| Machine Weight | 6,000 lbs |
