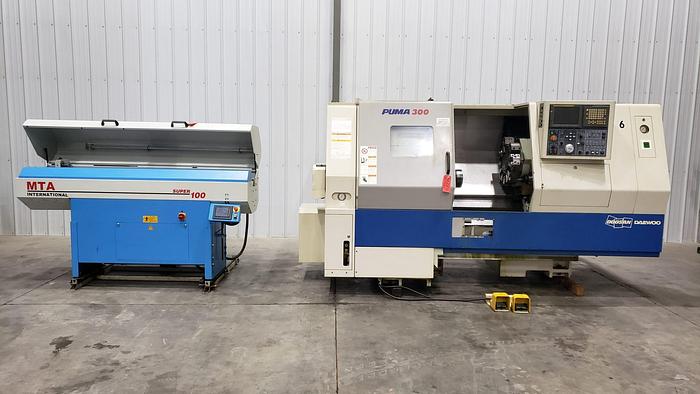

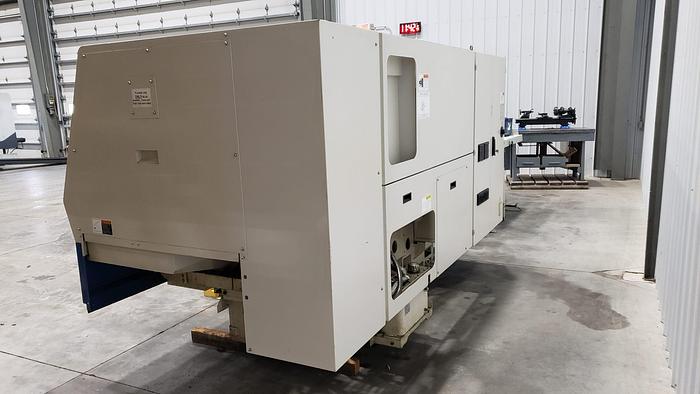

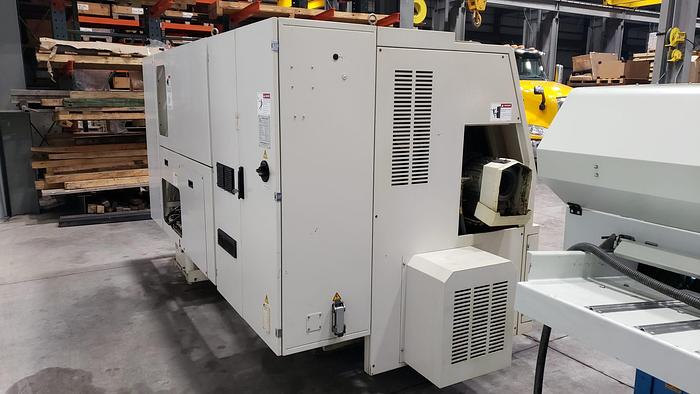

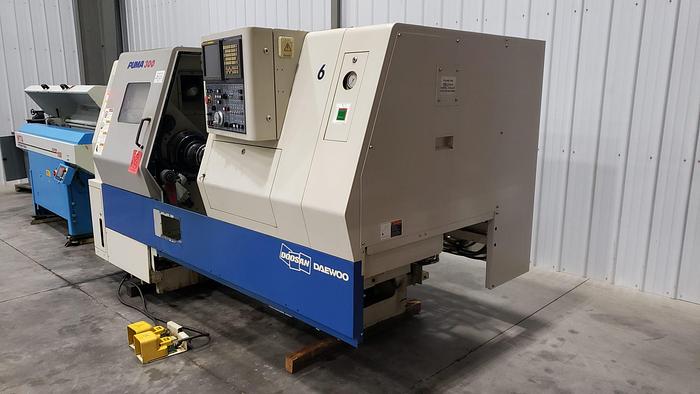

2006 Doosan Puma 300C
No longer available
2006 Doosan Puma 300C
Location:Michigan
Description

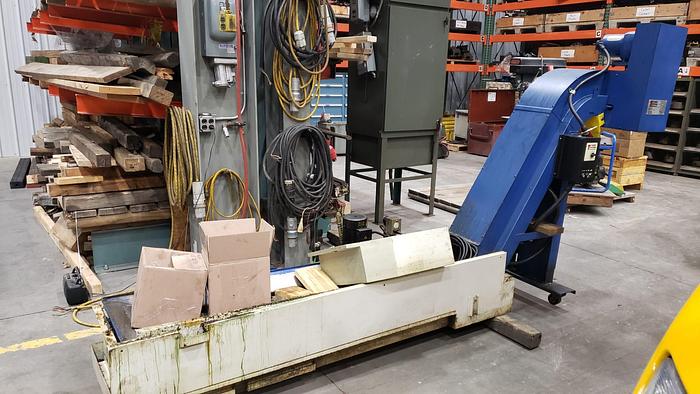

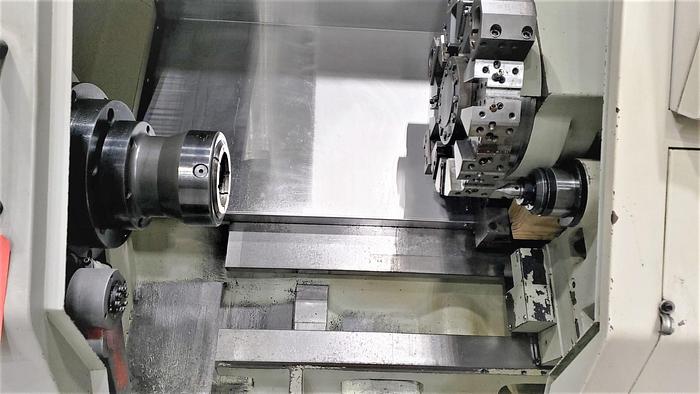

12" 3 Jaw Kitagawa Hydraulic Chuck-New in Box Tailstock with Programmable Quill Chip Conveyor
Tool Presetter
Parts Catcher

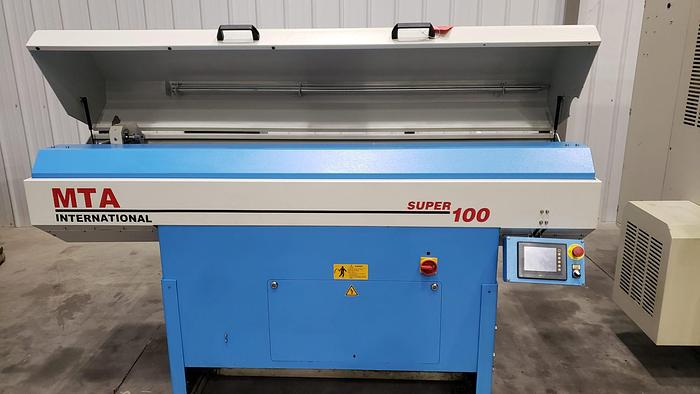

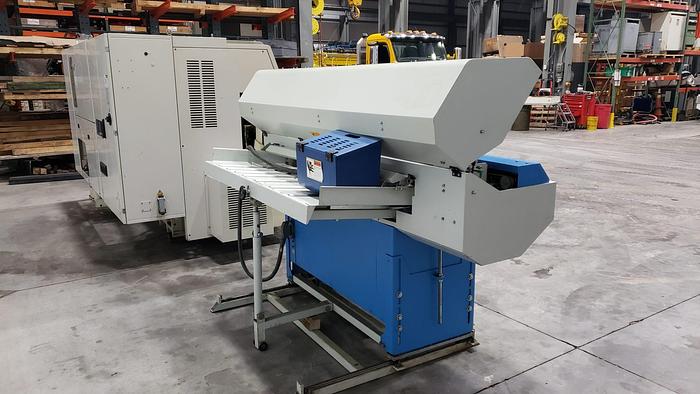

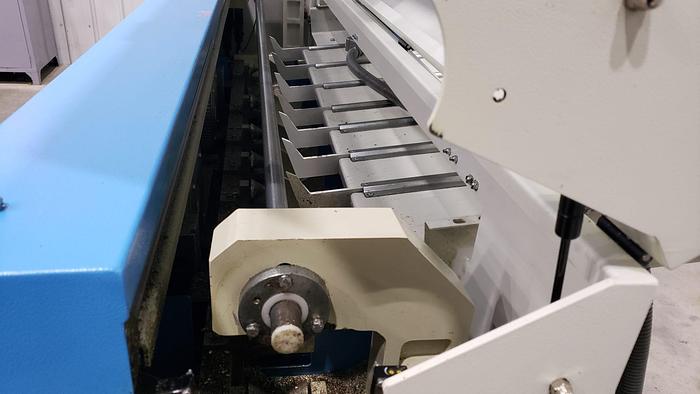

MTA International Super 100 Short Load Barfeeder - 86.5" x 42.5" footprint
Barfeed Interface
2 Speed Gearbox Coolant Tank with Pump RS 232 Port Interface
Ethernet Interface
All Available Tooling

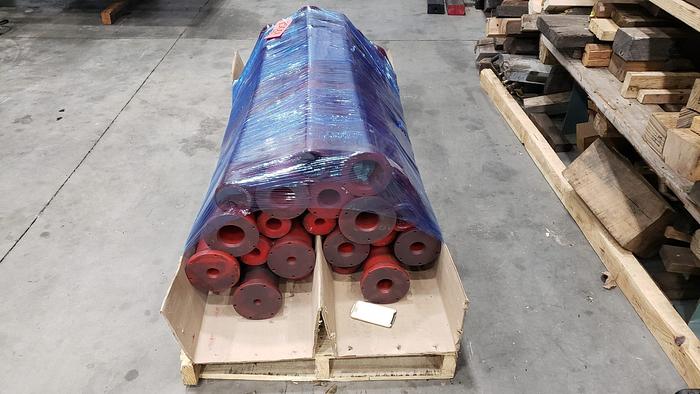

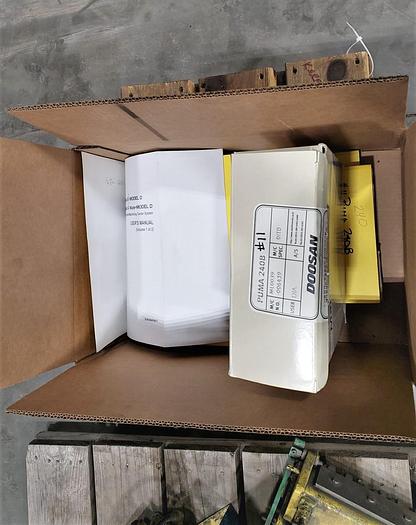

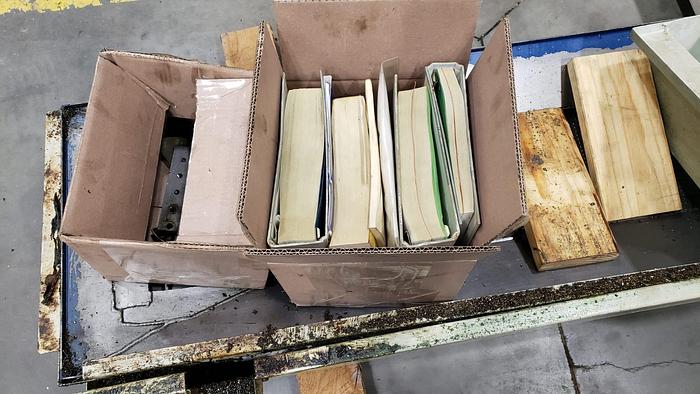

Miscellaneous Spindle Liners All Available Manuals

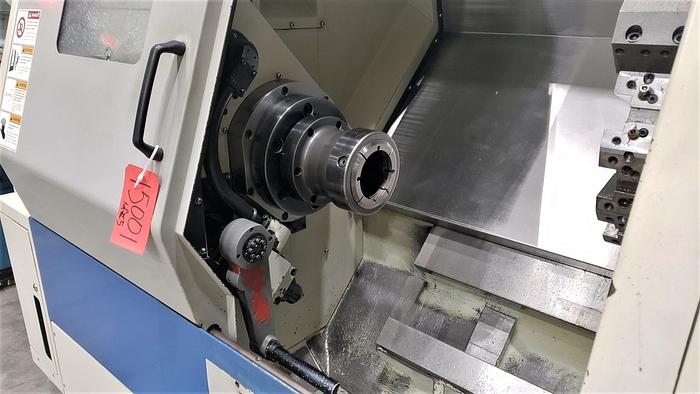

*Collet Chuck in photos does NOT go with
Specifications
| Manufacturer | Doosan |
| Model | Puma 300C |
| Year | 2006 |
| Condition | Used |
| Stock Number | 117586 |
| Quantity | 1 |
| Control | Fanuc 21i-TB |
| Chuck Size | 12" 3 Jaw Chuck |
| Maximum Swing over Bed | 23" |
| Maximum Swing Over Cross Slide | 14.5" |
| Maximum Turning Diameter | 15.7" |
| Maximum Turning Length | 24.8" |
| Maximum Bar Capacity | 4.58" |
| X-Axis Travel | 11.3" |
| Z-Axis Travel | 26.8" |
| Spindle Nose / Spindle Bore | A2-11" / 4.53" |
| Spindle Speeds | 28 - 2,800 RPM |
| Spindle Motor | 35 HP |
| Transmission | 2 Speed Gearbox |

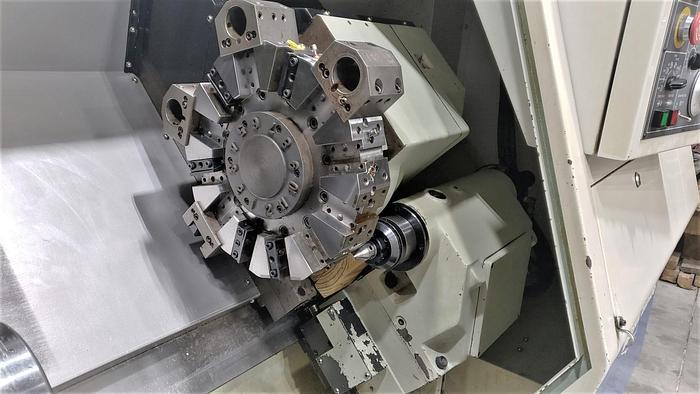

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 787 IPM / 945 IPM |
| Tailstock Quill Diameter / Travel | 3.94" / 3.94" |
| Machine Dimensions | 135" x 77" x 80" |
| Machine Weight | 16,000 lbs. |
