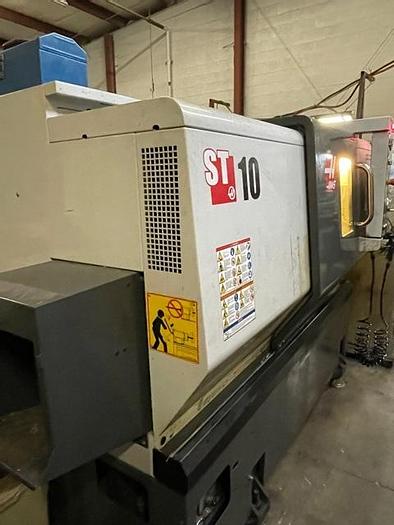

2014 Haas ST-10 Chucker
Sold
2014 Haas ST-10 Chucker
$37,500 (USD)
Location:Texas
Description

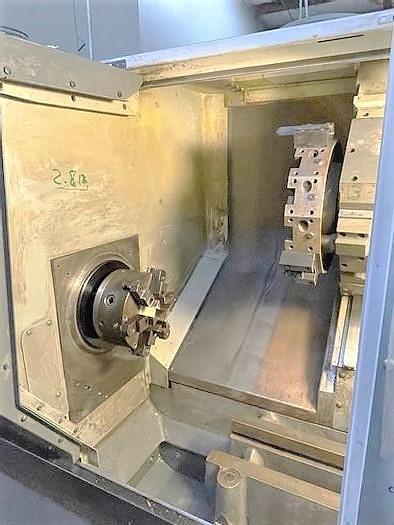

6.5" Hydraulic Chuck
CNC Control Cabinet Cooler
Adaptor Plate for 8" Chuck
Rigid Tapping
Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface
15" LCD Color Monitor
Memory Lock Keyswitch
195-260 V 3-Phase
All Available Manuals

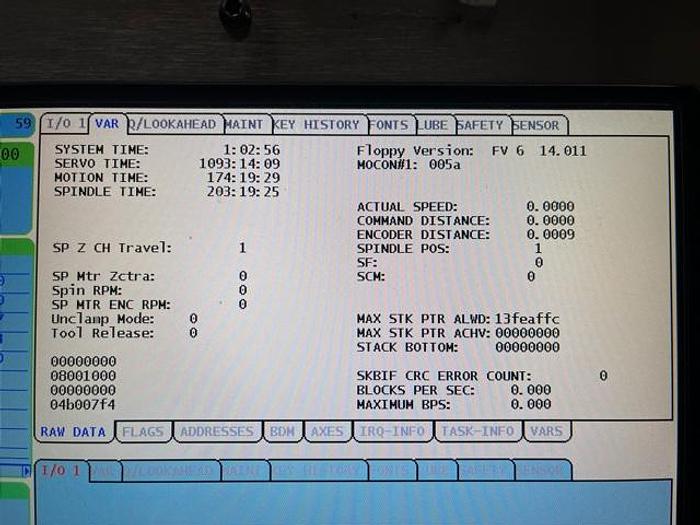

ONLY 203 Spindle Run Hours
Specifications
| Manufacturer | Haas |
| Model | ST-10 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 117585 |

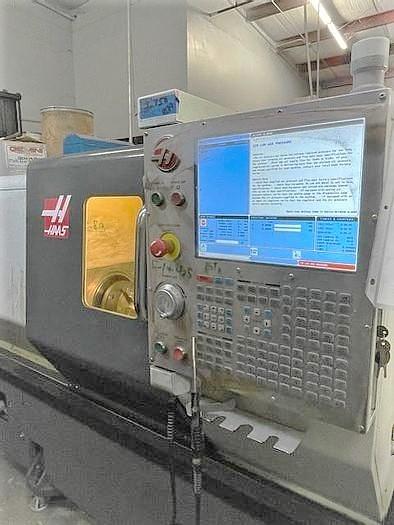

| Machine Control | Haas CNC Control |
| Chuck Size | 6.5" /1.75" Thru hole |
| Maximum Swing | 25.25" |
| Maximum Swing Over Cross Slide | 16.25" |
| Maximum Machining Diameter | 14" |
| Maximum Machining Length | 14" |
| X-Axis Travel | 7.88" |
| Z-Axis Travel | 14" |
| Spindle Nose / Bore / Bar Capacity | A2-5" / 2.31" / 1.75" |
| Spindle Motor | 20 HP / 15 HP |
| Spindle Speeds | 6,000 rpm |

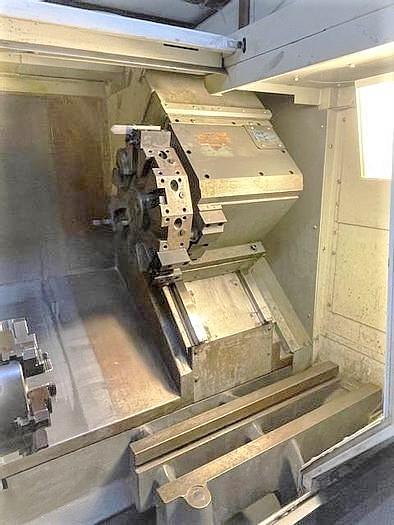

| Number of Turret Positions | 12 Bolt on Style |
| Spindle Torque | 75 ft/lbs. |
| Rapid Traverse Rates | 1,200 IPM |
| Machine Dimensions LxWxH | 92"x55"x69" |
| Machine Weight | 6,420 lbs |
