2007 Haas SL-10T
No longer available
2007 Haas SL-10T
Texas
Description
Chip Conveyor
Barfeed Interface
Haas Servo 300 Barfeeder

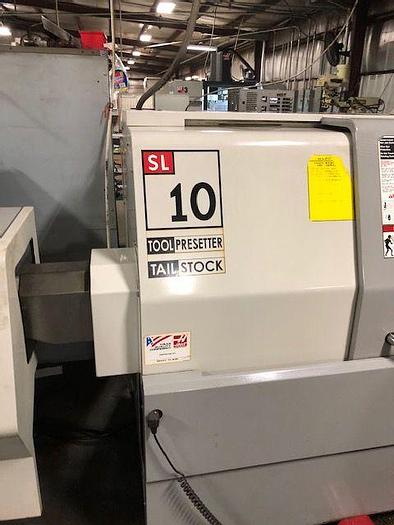

Tool Presetter
Tailstock

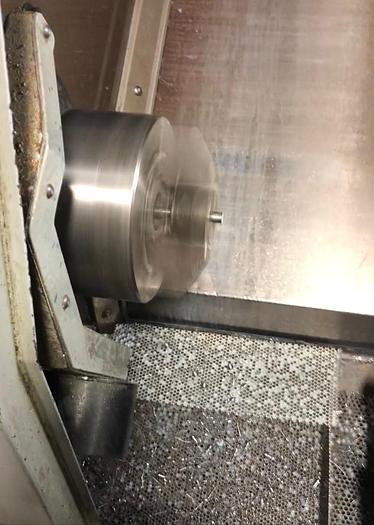

6.5" 3 Jaw Hydraulic Chuck

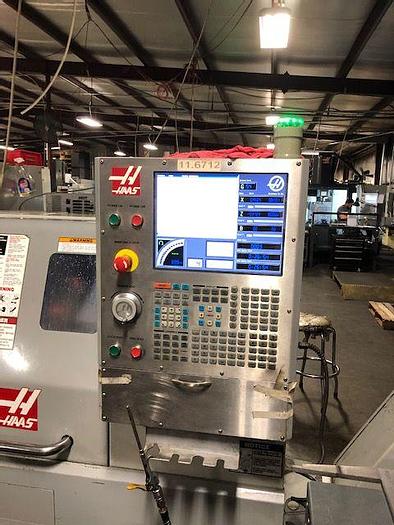

Color LCD Monitor
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Rigid Tapping
All Available Tool Blocks
All Available Manuals

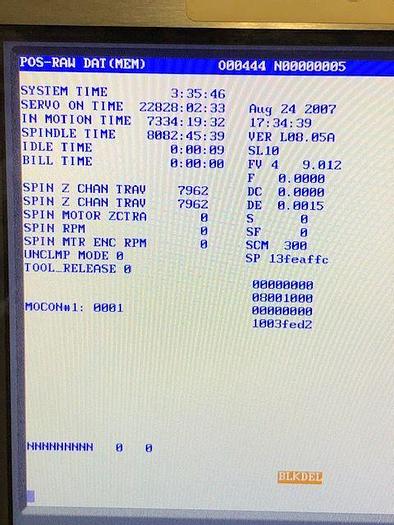

7,334 In Motion Hours
8,082 Spindle Hours
Specifications
| Manufacturer | Haas |
| Model | SL-10T |
| Year | 2007 |
| Condition | Used |
| Stock Number | 117583 |
| Machine Control | Haas 32 Bit |
| Chuck Size | 6.5" /1.75" Thru hole |
| Maximum Swing | 16.25 |
| Maximum Swing Over Cross Slide | 8" |
| Maximum Machining Diameter | 11" |
| Distance Between Centers | 16.5" |
| X-axis travel | 6.25" |
| Z-Axis Travel | 14" |
| Spindle Speeds | 6,000 rpm |
| Spindle Nose / Spindle Bore | A2-5 / 2.31" |
| Spindle Motor | 15 hp |

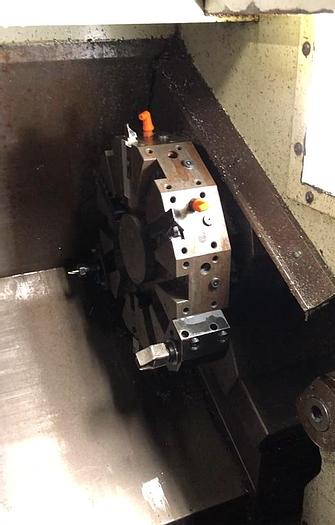

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 1,200 ipm |
| Tailstock Center / Diameter | #3 MT / NA |
| Tailstock Quill Travel | 4" |
| Machine Dimensions LxWxH | 96"x54"x70" |
| Machine Weight | 6,000 lbs |
