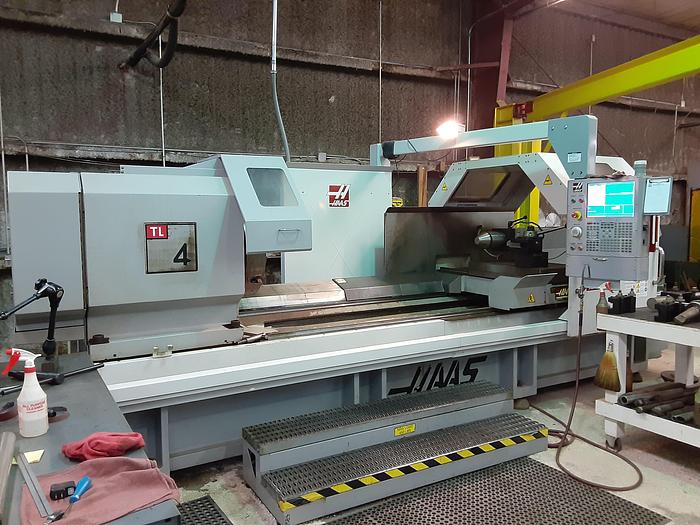

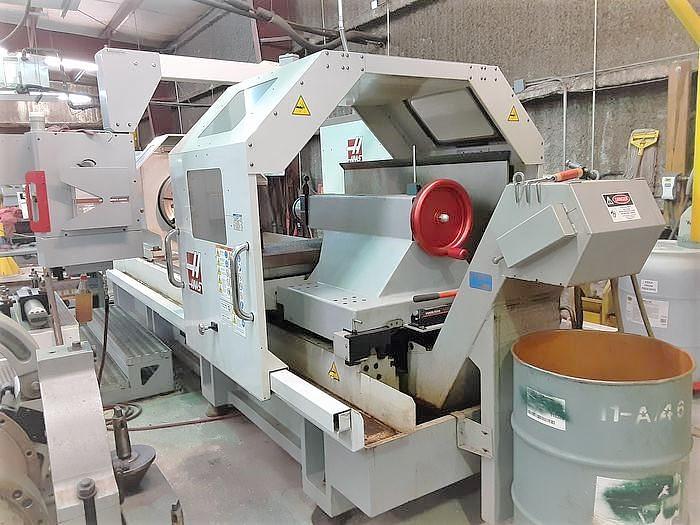

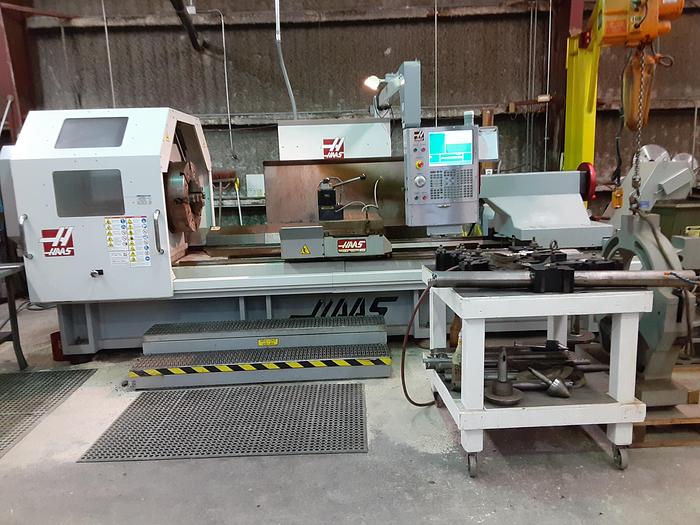

2009 Haas TL-4
Sold
2009 Haas TL-4
$119,500 (USD)
Location:Texas
Description
Front & Rear Chuck

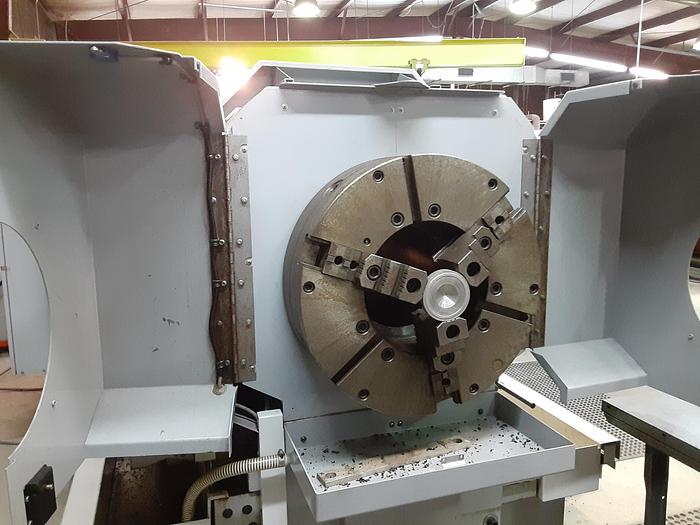

24" 3-Jaw w/12.5" Thru Hole

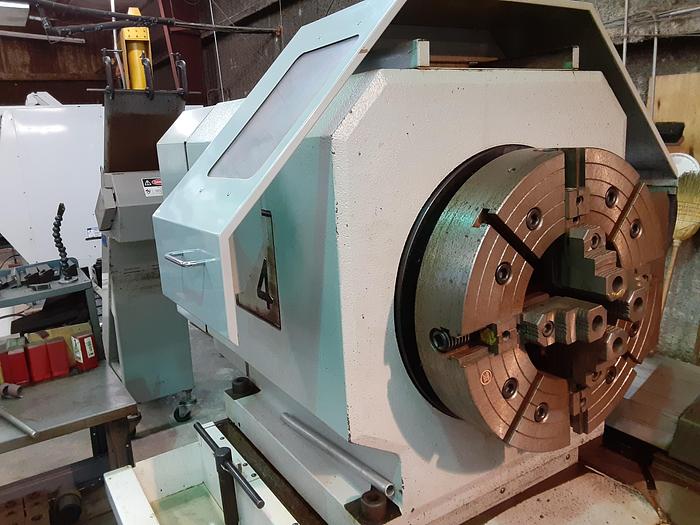

24" 4-Jaw w/12.5" Thru Hole

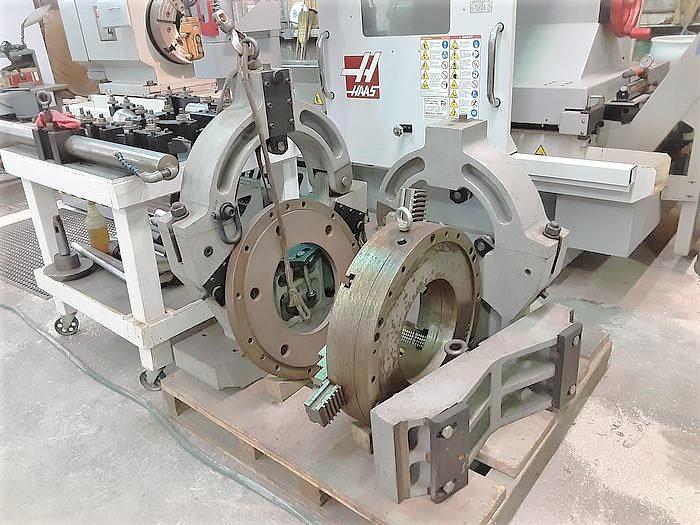

2-Steady Rests

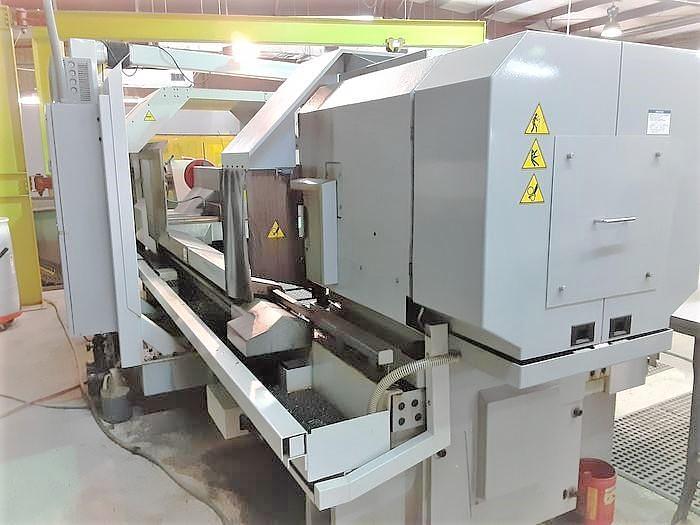

Chip Conveyor

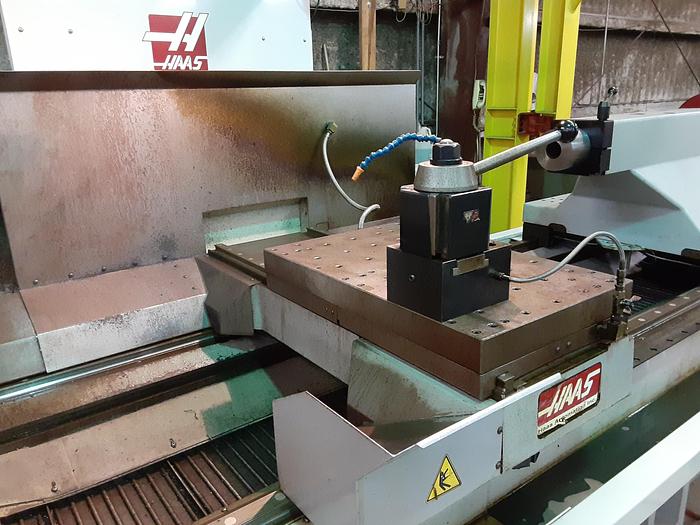

Tool Post

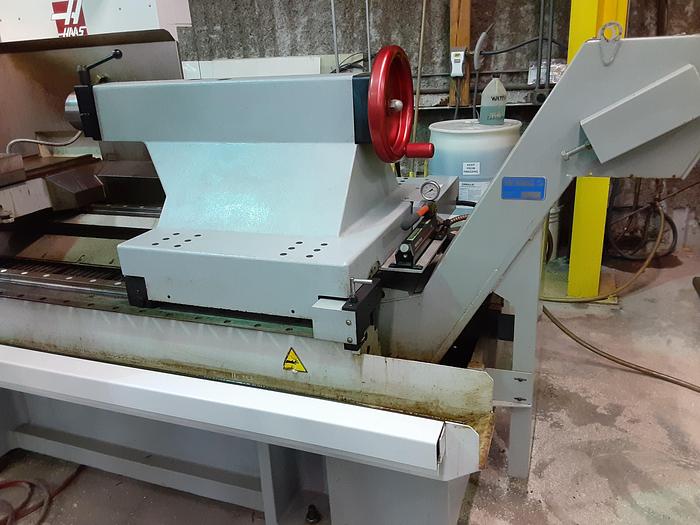

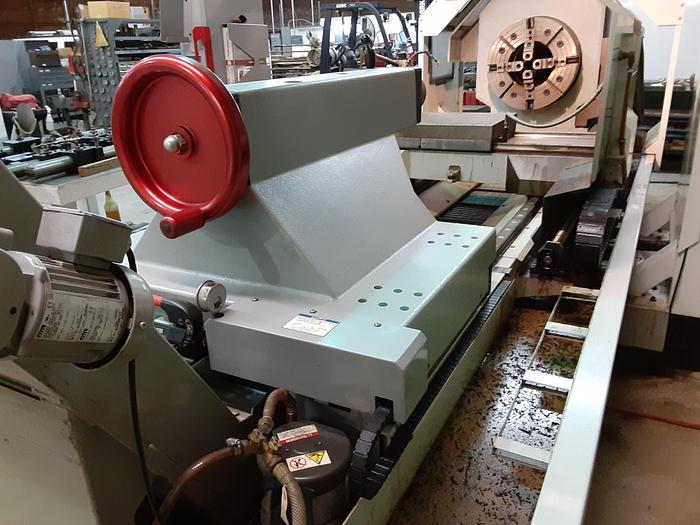

Tailstock
15" LCD Color Monitor
USB Port Interface
RS 232 Port Interface
Intuitive Programming System
Spindle Orientation
Rigid Tapping
Coolant System with Tank & Pump
Work Light
195/260 Volts 3-Phase

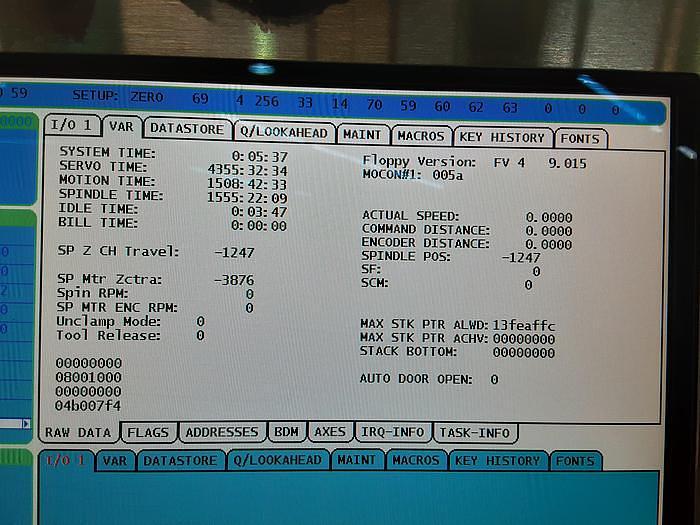

Only 1,555 Spindle Run Time

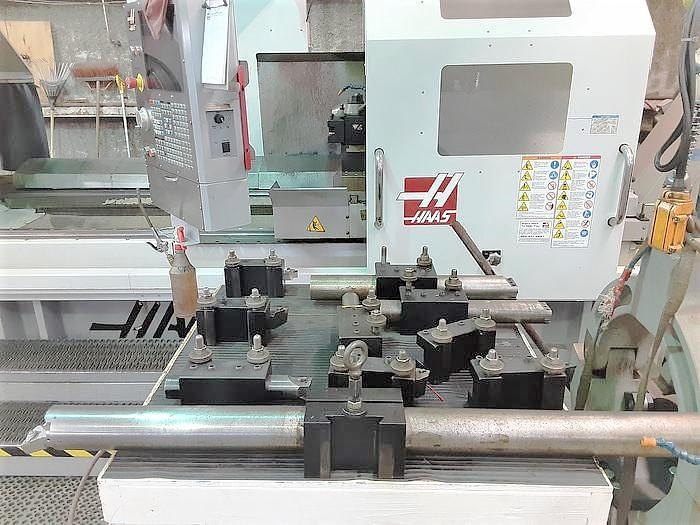

10-Aloris Tool Holders
(6) EA-1
(2) EA-104
(1) EA-100
(1) EA-141
**Long bore bar in the picture does not go with the machine**
Specifications
| Manufacturer | Haas |
| Model | TL-4 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 117581 |
| Machine Control | Haas 32 BIT |
| Chuck Size | 24" Front & Rear |
| Maximum Swing | 35" |
| Maximum Swing Over Cross Slide | 16" |
| Maximum Cutting Diameter | 35" |
| Distance Between Centers | 91" |
| X-Axis Travel | 18" |
| Z-Axis Travel | 80" |
| Spindle Speeds | 0 - 500 RPM |
| Spindle Nose / Spindle Bore | A1-20" / 10.81" |
| Spindle Motor | 55 HP |
| Number of Tool Positions | Tool Post |
| Tailstock Bore Taper | #5 MT |
| Machine Dimensions LxWxH | 240" x 102" x 87" |
| Machine Weight | 29,380 lbs |
