2006 Kingston LD-45-120
No longer available
2006 Kingston LD-45-120
Location:Texas
Description

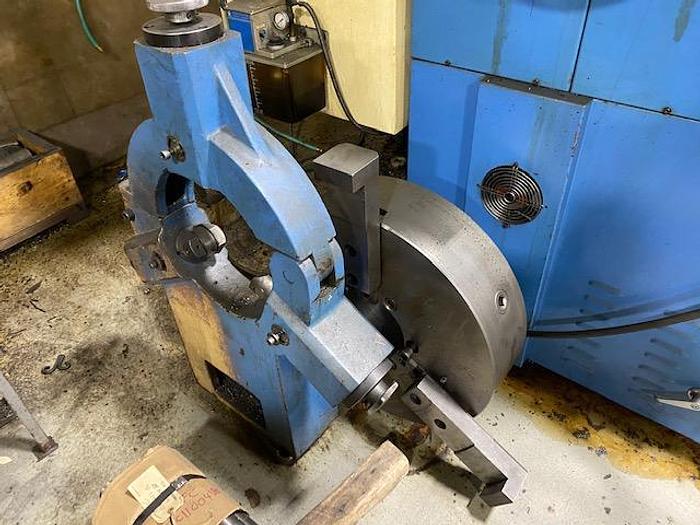

12" Diameter Steady Rest
Chip Conveyor
220V/3P/60HZ
Hydraulic Unit

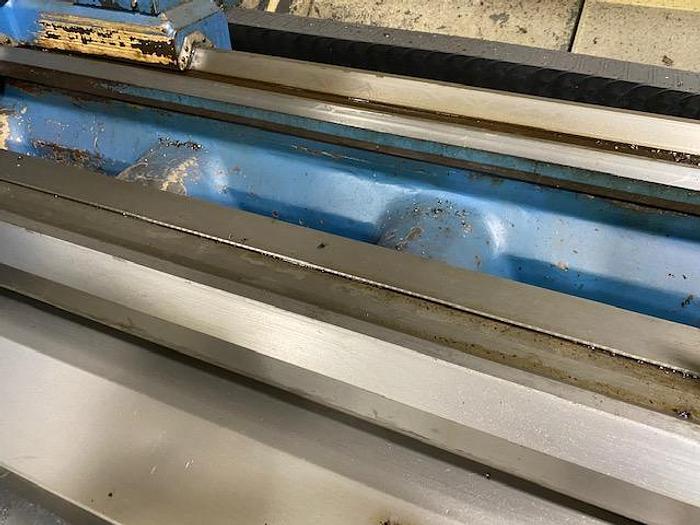

Boxed Ways Cross Slide and Carriage
All Available Manuals
Specifications
| Manufacturer | Kingston |
| Model | LD-45-120 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 117577 |

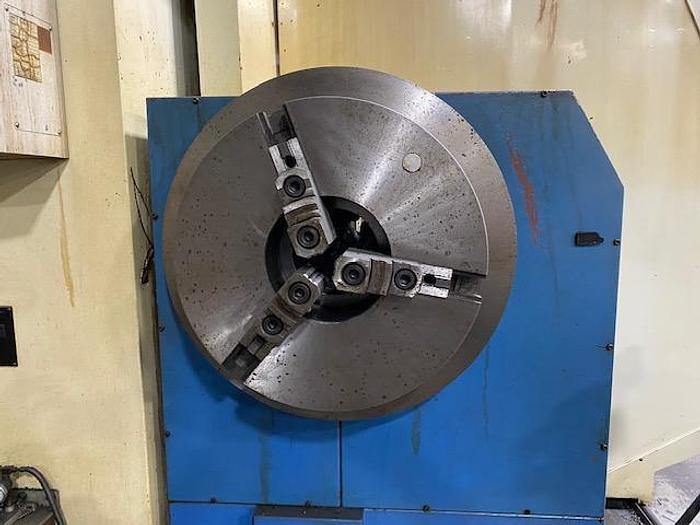

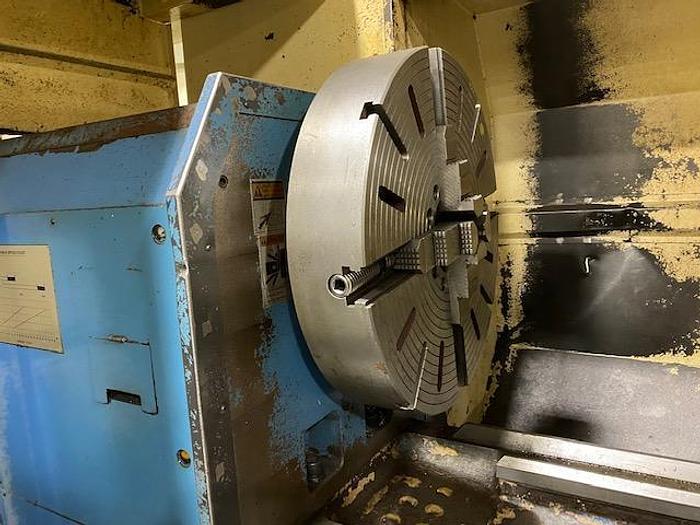

| Chuck Size | 30" 4-Jaws Front / 20" 3-Jaw Rear |
| Maximum Swing over Bed | 45" |
| Maximum Cutting Diameter | 27.5" |
| Distance Between Centers | 120" |
| X-axis travel | 22" |
| Z-axis travel | 120" |

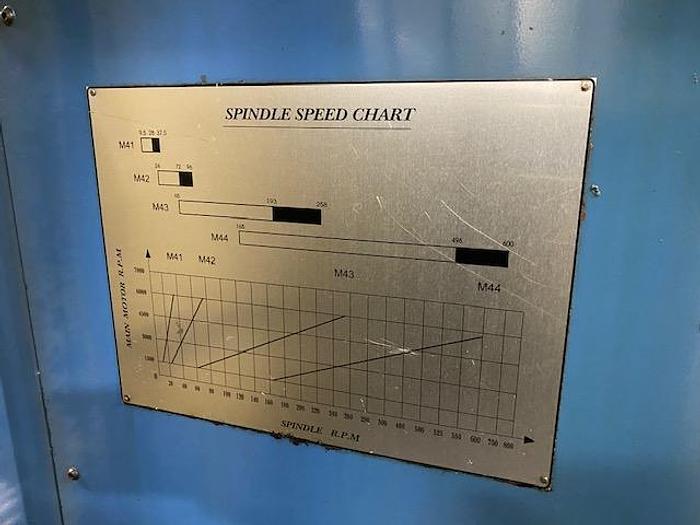

| Spindle Speeds | 4-1,000 rpm (2) Ranges |
| Spindle Motor | 50/60 hp |
| Spindle Nose / Bore / Bar Capacity | A2-15 / 6" / 6" |
| Number of Turret Positions | 8 |
| Rapid Traverse Rates X/Z | 236 ipm / 236 ipm |
| Tailstock Center / Diameter | #6MT |
| Tailstock Quill Travel / Quill Diameter | 7.1" / 9.4" |
| Machine Dimensions LxWxH | 269"x119"x88.7" |
| Machine weight (approximately) | 33,242 lbs |
