2002 Southwest Industries Trak TRL-1840 CSS
No longer available
2002 Southwest Industries Trak TRL-1840 CSS
$16,950 (USD)
Location:Illinois
Description
10" 4-Jaw Manual Chuck

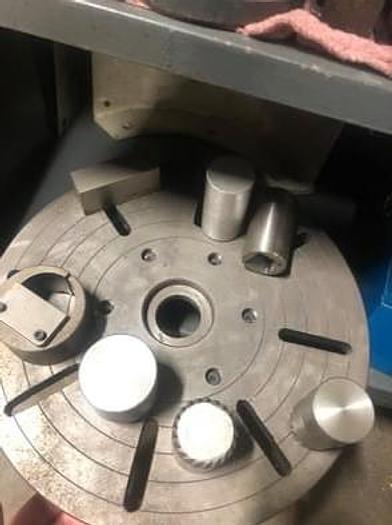

14" Face Plate

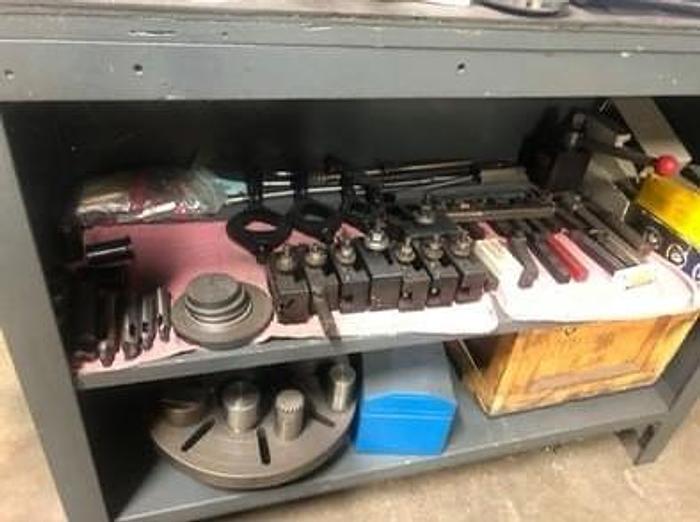

Miscellaneous Tool Holders
Coolant System
Lube System
Specifications
| Manufacturer | Southwest Industries |
| Model | Trak TRL-1840 CSS |
| Year | 2002 |
| Condition | Used |
| Stock Number | 117576 |

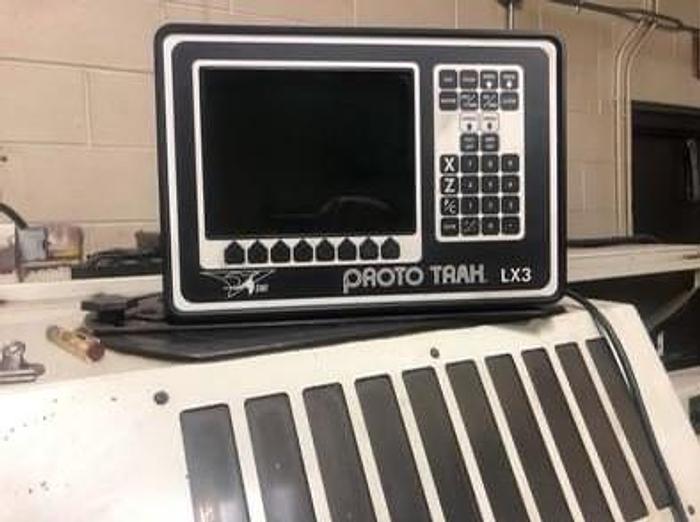

| Machine Control | Proto Trak LX3 |
| Chuck Size | 12" & 10" 3-Jaw Manual |
| Maximum Swing | 18.5" |
| Maximum Swing Over Cross Slide | 9" |
| Distance Between Centers | 40.25" |
| Spindle Nose / Bore / Bar Capacity | D1-6 / 2.36" / 2.36" |

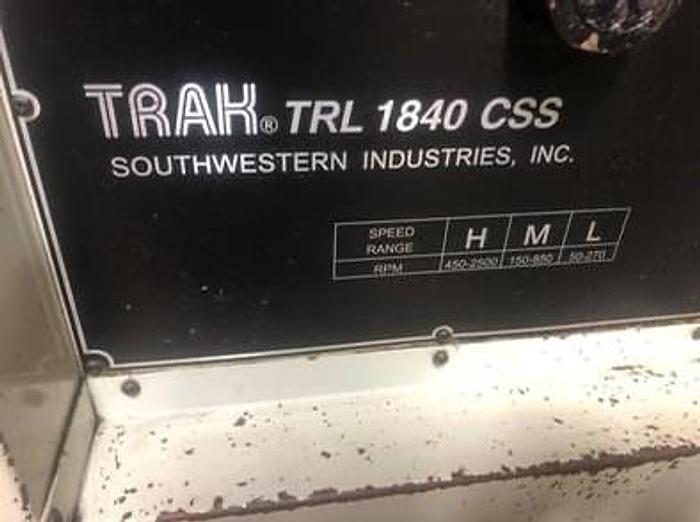

| Spindle Speed | 25-2,500 rpm |
| Spindle Motor | 10 hp |
| Number of Turret Positions | 8 |
| Tailstock Quill Diameter / Center | 2.375" / #4MT |
| Tailstock Quill Travel | 6.5" |
| Machine Dimensions LxWxH | 91"x53"x64" |
| Machine Weight | 4,930 lbs |
