2016 Haas Mini Mill 2
No longer available
2016 Haas Mini Mill 2
$34,500 (USD)
Florida
Description
Pre-Wired for 4th Axis - Brushless
Haas Wireless Probing - Both Tool Probe & Part Probe
20 Station Tool Changer Option
Chip Auger
User Definable Macros
Coordinate Rotation & Scaling
M19 Spindle Orientation
VPS Editing
1 GB Programming Memory
Compensation Tables
Media Display
Coolant Tank with1/4 HP Pump
Coolant Oil Skimmer

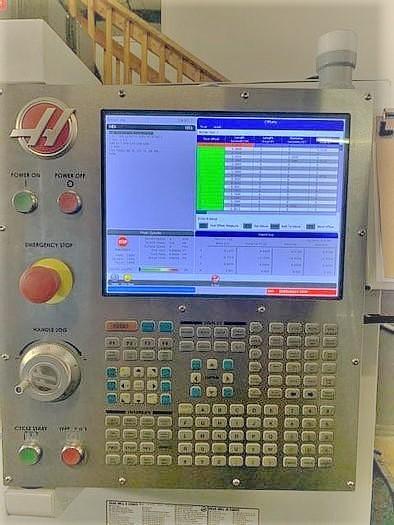

15" Color LCD Monitor
Memory Lock Key Switch
Haas Connect Option
Ethernet Interface
USB Port Interface
RS 232 Port Interface
LED Work Light
All Available Manuals
220V 3-Phase
This Machine has been used about 90% on Aluminum

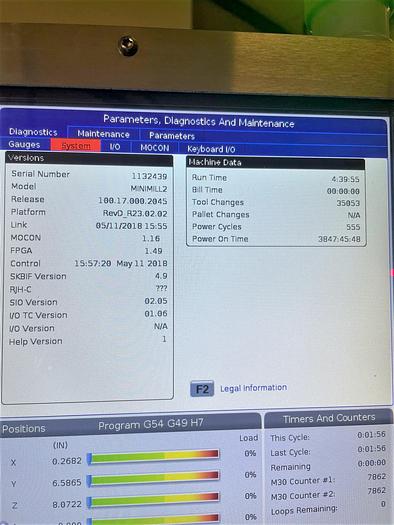

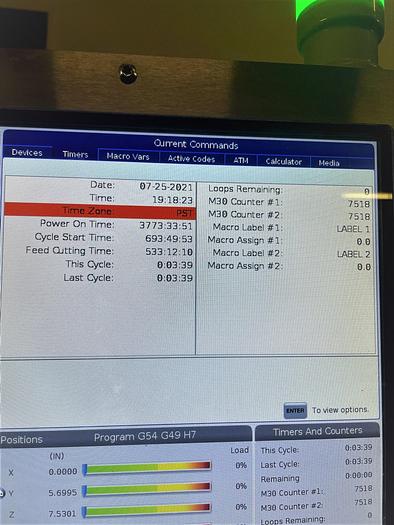

Machine Hours as of 7/30/21
- Power On Hours 3,773
- Cycle Start Hours 693
- Feed Cutting Hours 533

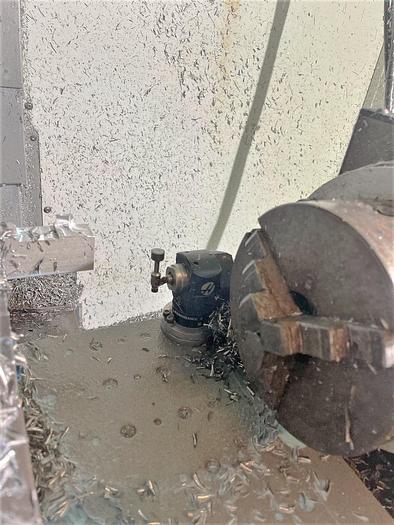

**4th-Axis in the picture does no go with the machine**
** Price new as equipped at $ 54,480 **
Specifications
| Manufacturer | Haas |
| Model | Mini Mill 2 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 117575 |
| Machine Control | Haas Next Generation Control |
| Table Size | 40" x 14" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 14" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 6,000 rpm |
| Spindle Motor | 10 HP |
| Rapid Traverse Rates | 600 IPM |
| Tool Magazine Capacity | 20 Station Tool Changer |
| Distance Spindle Nose to Table Top | 18" - 4" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91"x88"x100" |
| Machine Weight | 5,100 lbs |
