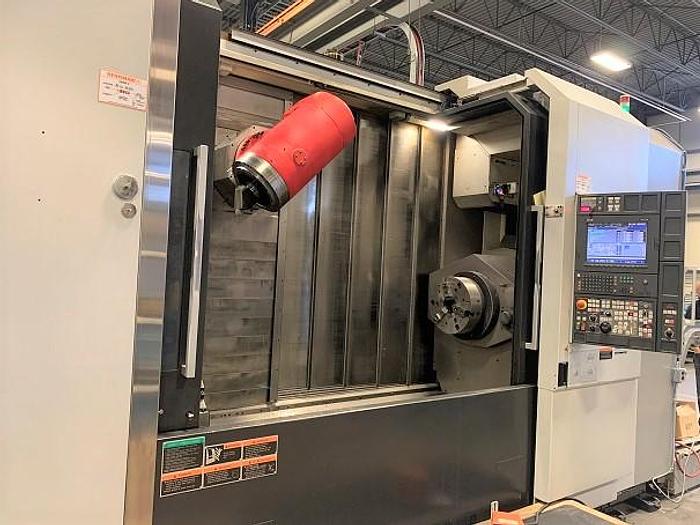

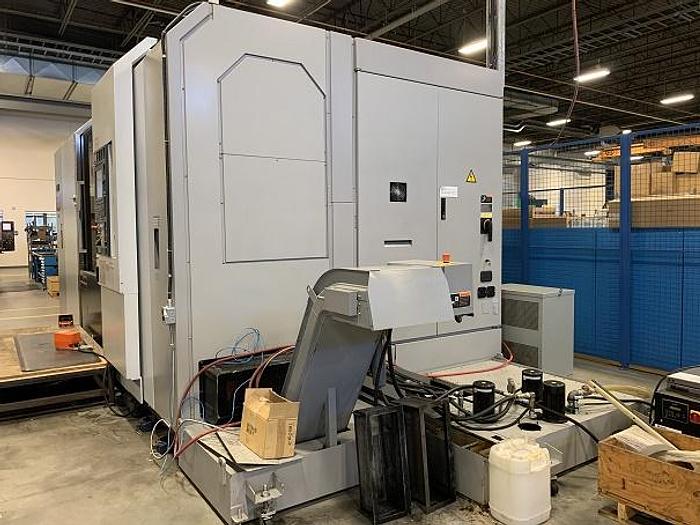

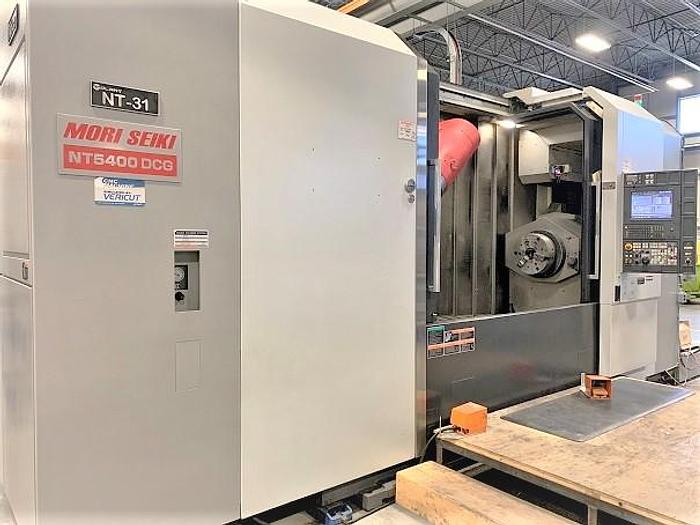

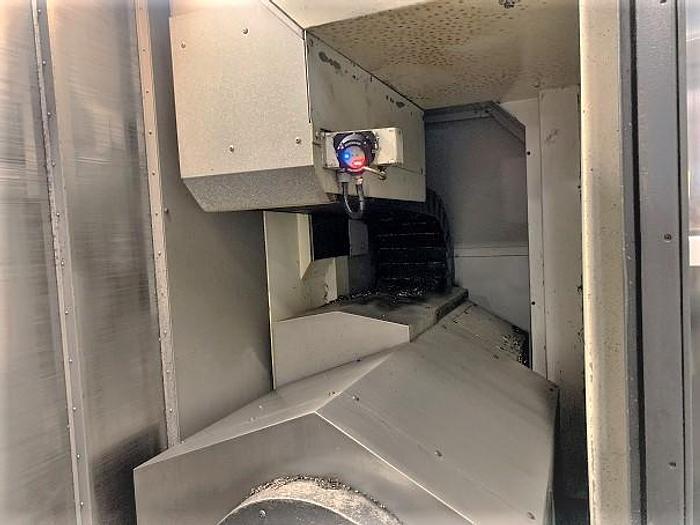

2006 Mori Seiki NT5400 DCG/1800SZ
2006 Mori Seiki NT5400 DCG/1800SZ
Canada
Description

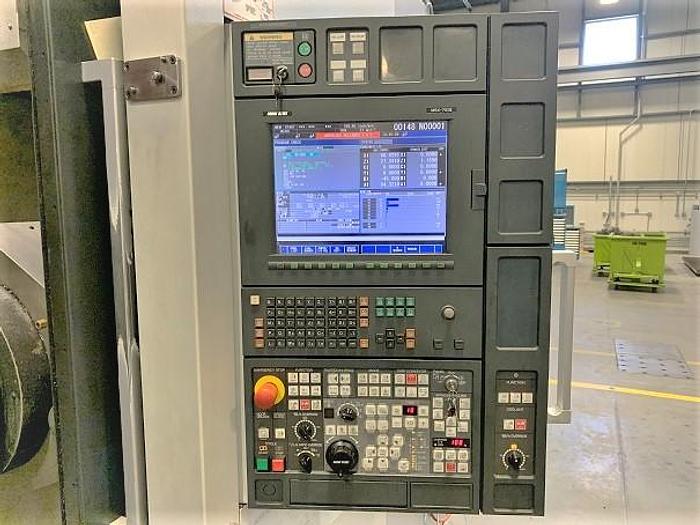

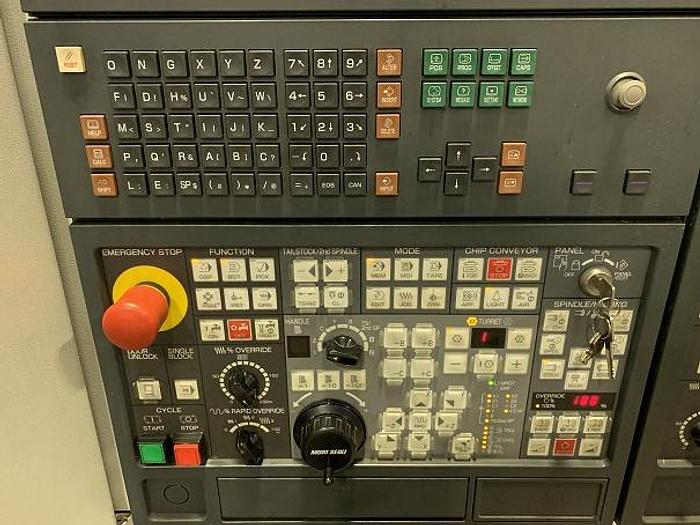

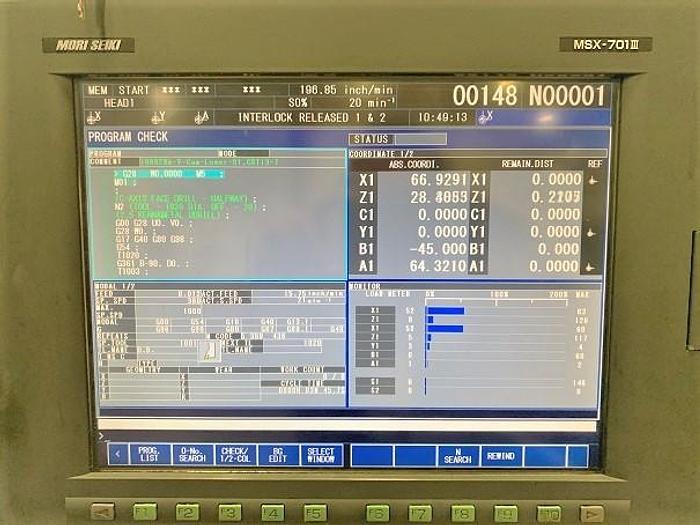

Fanuc MSX-701 III CNC Control

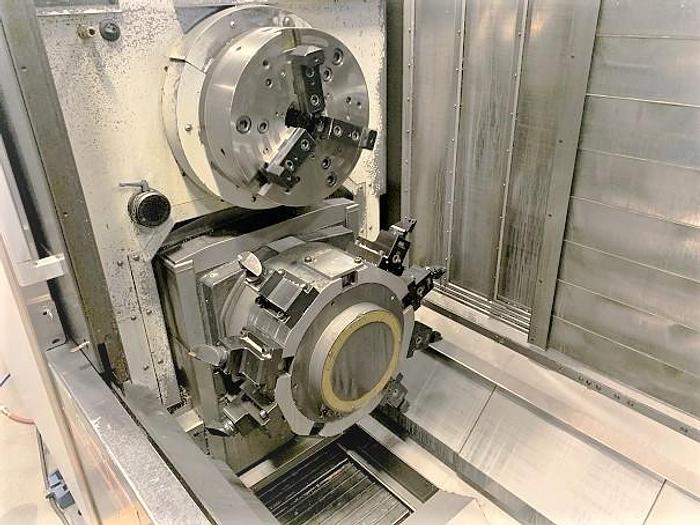

(2) Opposing Spindles

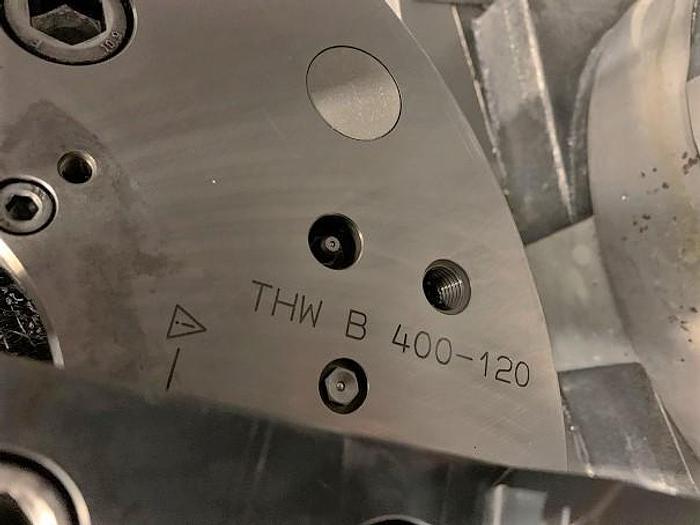

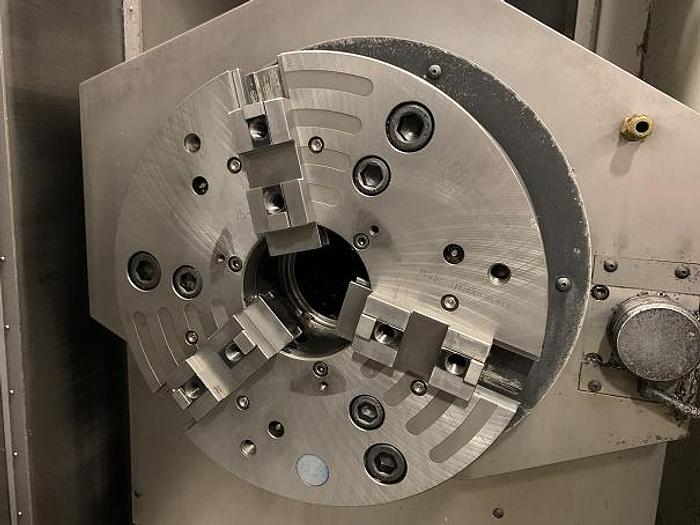

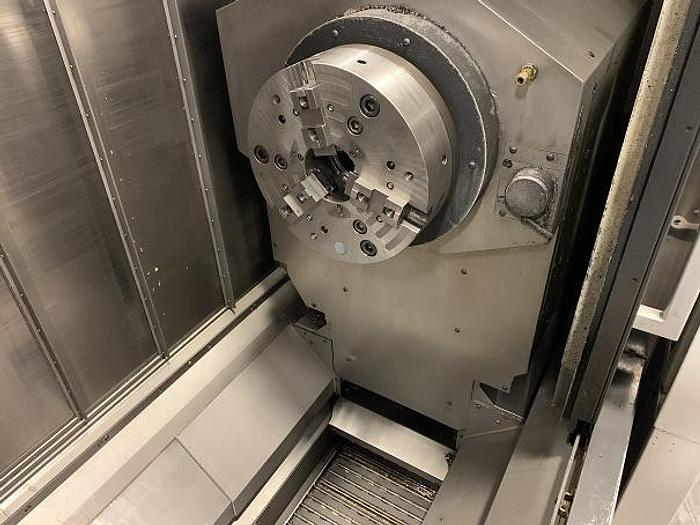

(2) 15" 3 Jaw Hydraulic Schunk THW B 400-120 Chucks
Full C Axis Spindle Rotation of Both Spindles
Live Milling / Drilling Capability

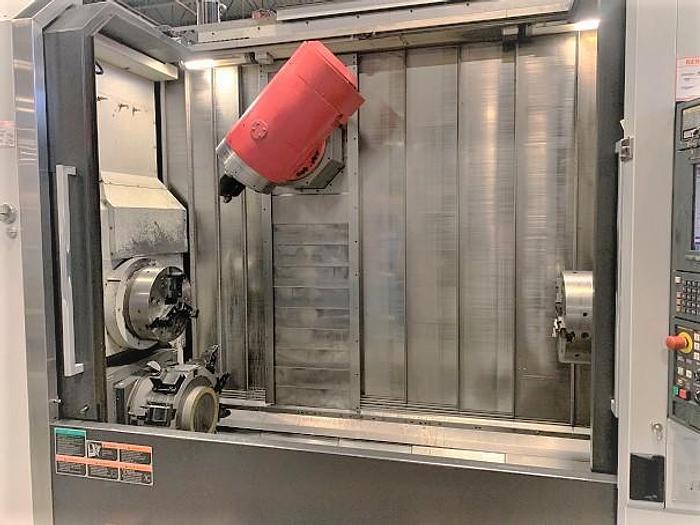

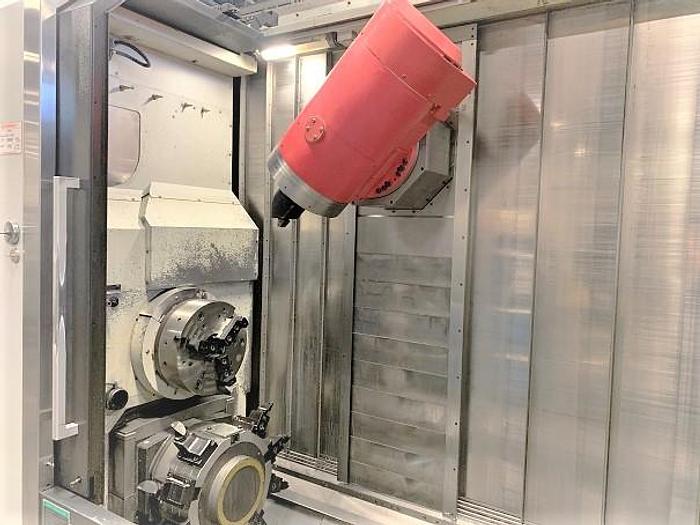

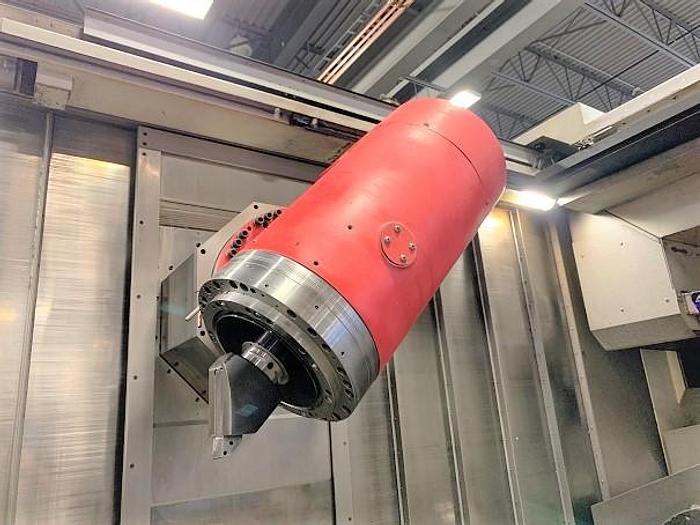

Pendulum Style B Axis Head with +/- 120 Degree Movement

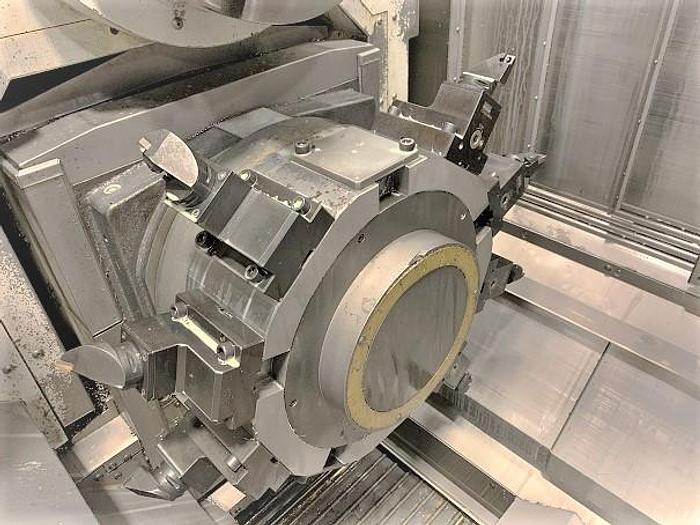

12 Station Lower Turret
40 Station Tool Changer
Chip Conveyor
Probing System
Daiken Inverter Automatic Lubrication System

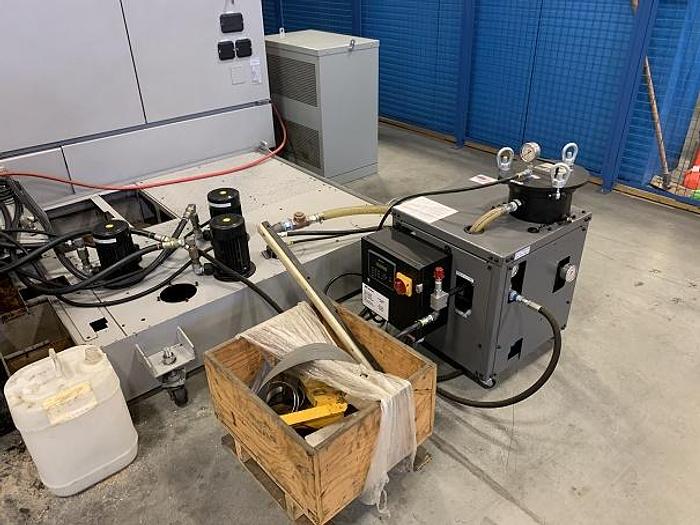

Coolant Chiller System
Transformer
USB Port Interface
Card Interface
RS232 Port Interface
Flood Coolant System
Coolant Guards
Simultaneous 5-axis machining of complex parts with the direct drive motor
High-speed, high-accuracy machining achieved by NT series original Box in Box
Tool spindle: Higher cutting performance and machining accuracy with 2-face
ORC (Octagonal Ram Construction) as a solution for heat control.
Specifications
| Manufacturer | Mori Seiki |
| Model | NT5400 DCG/1800SZ |
| Year | 2006 |
| Condition | Used |
| Stock Number | 117571 |
| Chuck Sizes Main / Subspindle | 15" Hyd. / 15" Hyd. |
| Maximum Swing over Bed | 36.2" |
| Maximum Swing Over Cross Slide | 36.2" |
| Maximum Machining Diameter | 36.2" |
| Maximum Machining Length | 75.6" |
| Maximum Bar Capacity | 4" on both spindles |
| X-Axis Travel | 40.9" |
| Y-Axis Travel | 10" |
| Z-Axis Travel | 76.4" + 7.9" |
| B-Axis Tilt Movement | +/- 120 Degrees |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | .001 Degree / .001 Degree |
| Spindle Nose / Spindle Bore - Both Spindles | A2-11" / 4.7" |
| Spindle Speeds - Both Spindles | 2,400 RPM |
| Spindle Motor - Both Spindles | 50 HP |
| Milling Spindle Taper | Capto C8 |
| Milling Spindle Speed | 8,000 RPM |
| Milling Spindle Motor | 40 HP |
| Number of Tool Positions | 40 Station Tool Magazine |
| Machine Weight | 83,600 lbs. |
