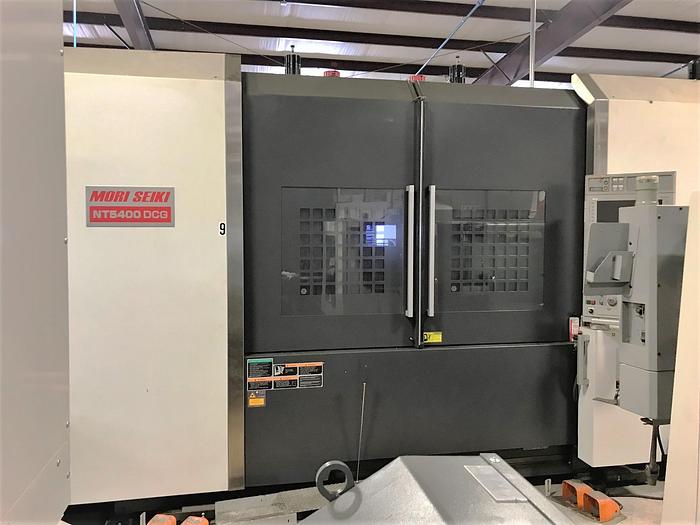

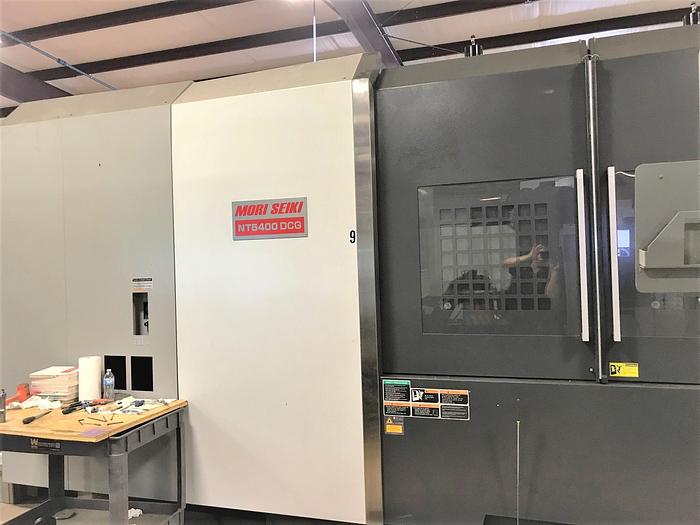

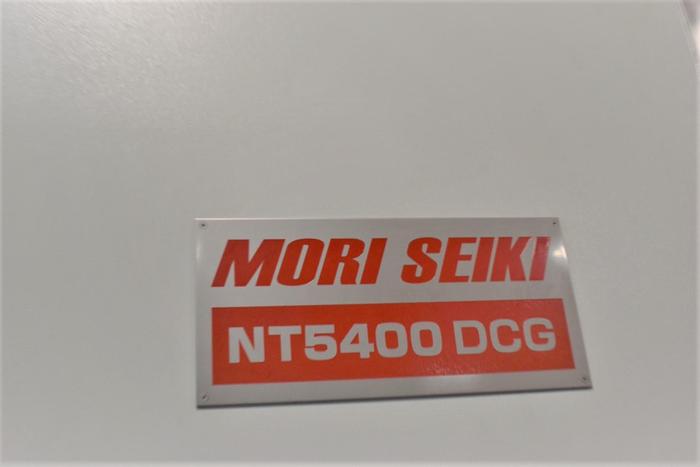

2011 Mori Seiki NT5400 DCG/1800S
2011 Mori Seiki NT5400 DCG/1800S
$359,500 (USD)
Location:Alabama
Description

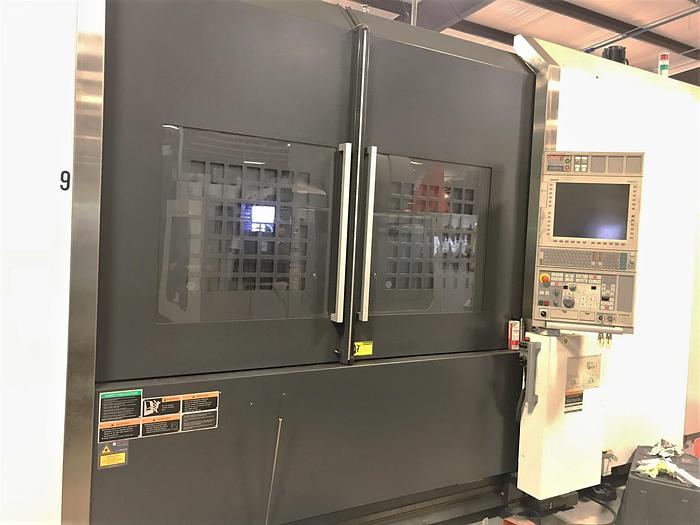

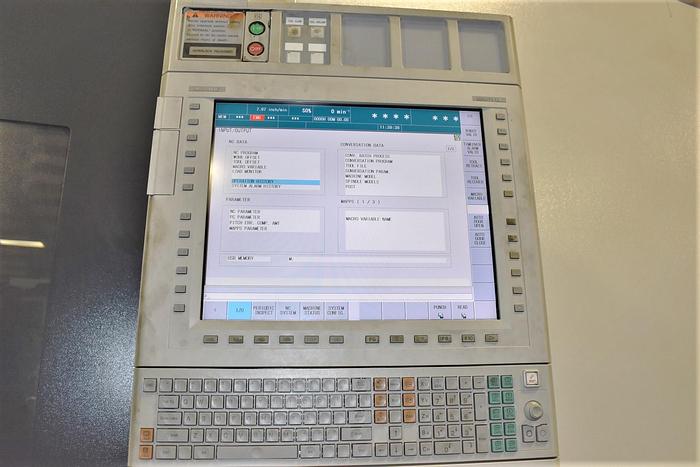

Fanuc MSX-711 IV CNC Control
(2) Opposing Spindles

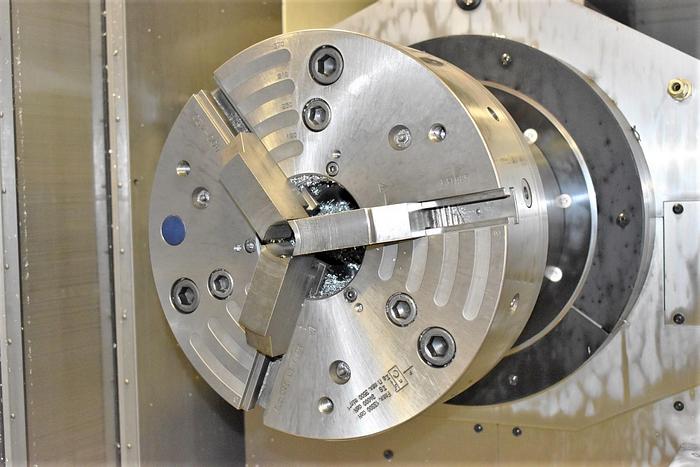

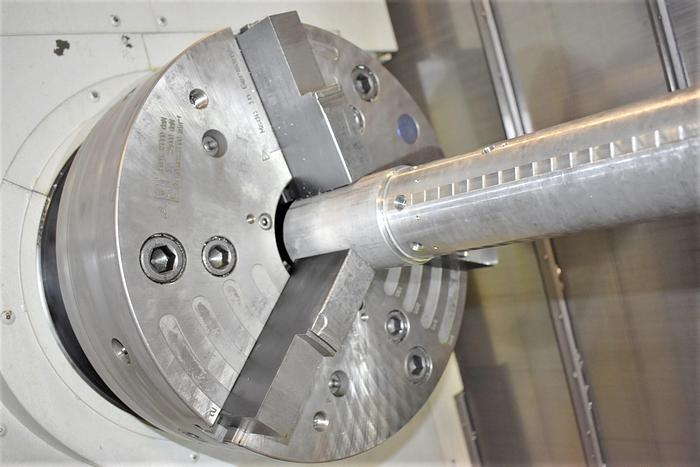

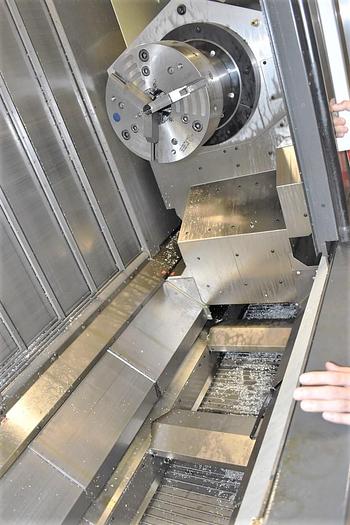

(2) 15.7" 3 Jaw Hydraulic Schunk Chucks
Full C Axis Spindle Rotation of Both Spindles
Live Milling / Drilling Capability

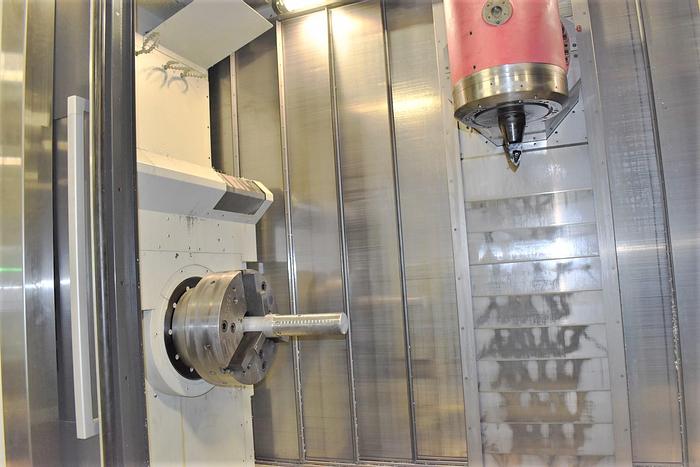

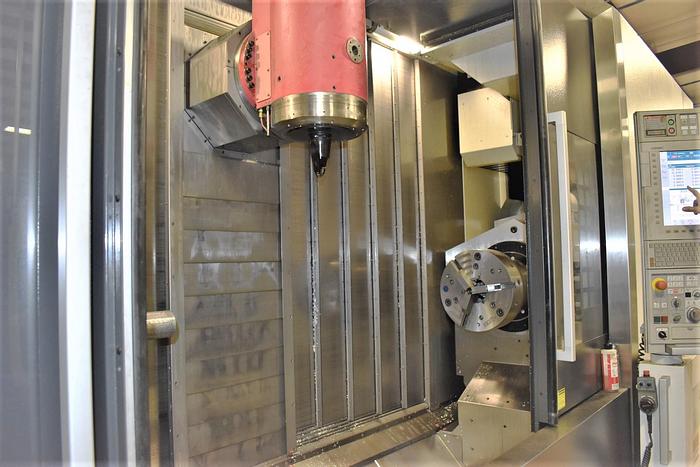

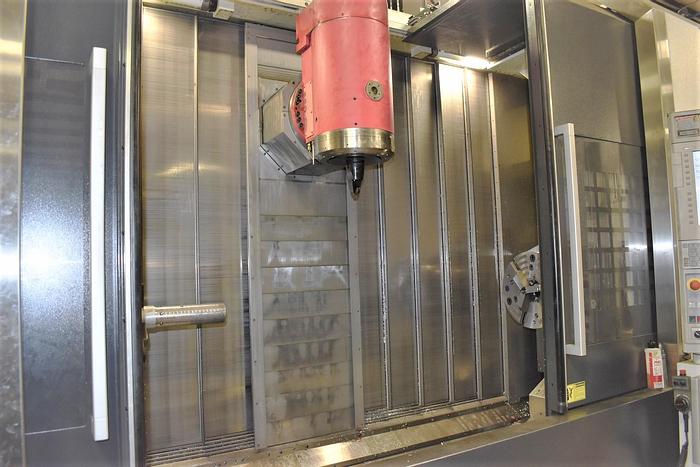

Pendulum Style B Axis Head with +/- 120 Degree Movement

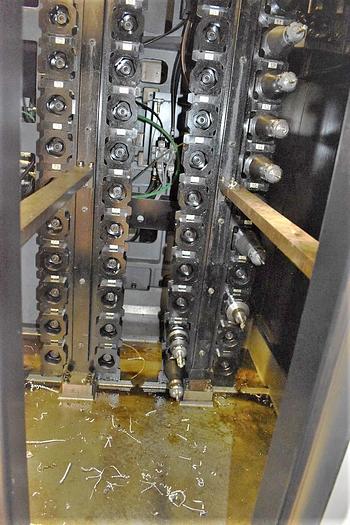

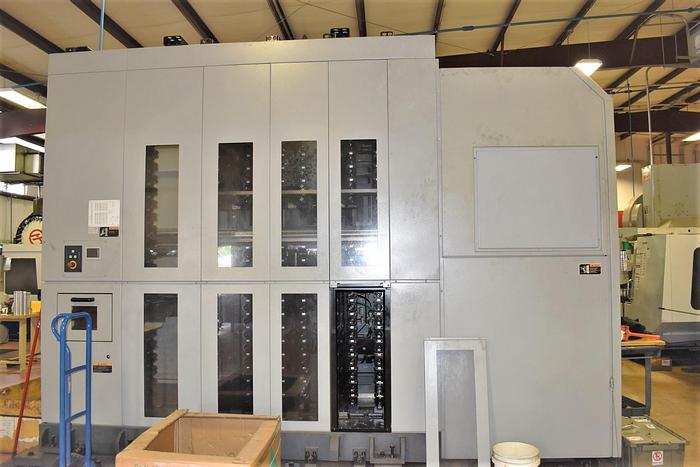

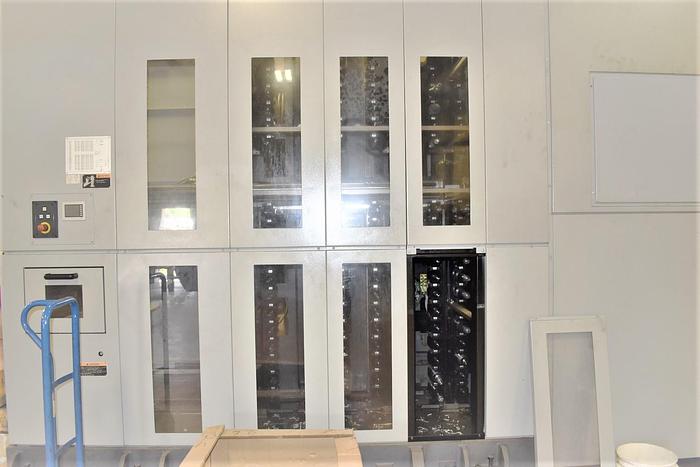

179 Station Tool Change Carousel
Chip Conveyor
Renishaw Probing System
Daiken Inverter Automatic Lubrication System

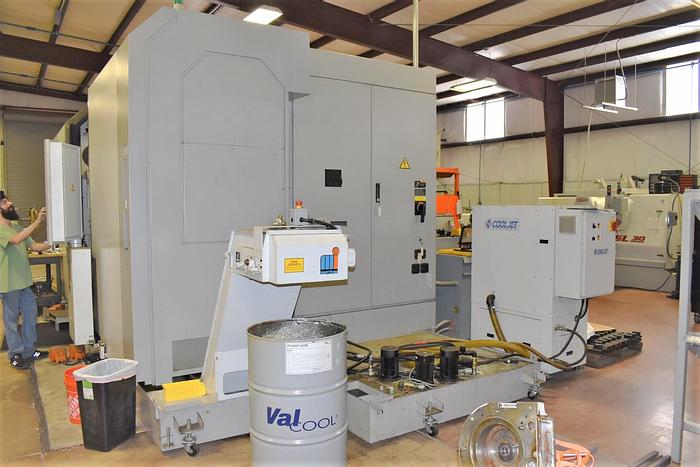

CoolJet Coolant Chiller System
Transformer
USB Port Interface
Card Interface
RS232 Port Interface
Flood Coolant System
Coolant Guards
Simultaneous 5-axis machining of complex parts with the direct drive motor
High-speed, high-accuracy machining achieved by NT series original Box in Box
Tool spindle: Higher cutting performance and machining accuracy with 2-face
ORC (Octagonal Ram Construction) as a solution for heat control.

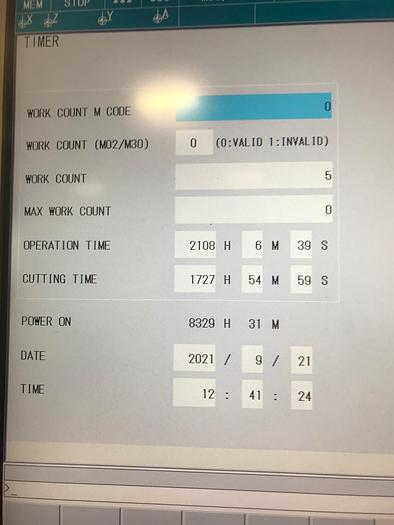

Power On Hours 8,329 as of September 21, 2021
Operation Hours 2,108
Cutting Hours 1,727
Specifications
| Manufacturer | Mori Seiki |
| Model | NT5400 DCG/1800S |
| Year | 2011 |
| Condition | Used |
| Stock Number | 117685 |
| Chuck Sizes Main / Subspindle | 15.7" Hyd. / 15.7" Hyd. |
| Maximum Swing over Bed | 36.2" |
| Maximum Swing Over Cross Slide | 36.2" |
| Maximum Machining Diameter | 36.2" |
| Maximum Machining Length | 75.6" |
| Maximum Bar Capacity | 4" on both spindles |
| X-Axis Travel | 40.9" |
| Y-Axis Travel | 10" |
| Z-Axis Travel | 76.4" + 7.9" |
| B-Axis Tilt Movement | +/- 120 Degrees |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | .001 Degree / .001 Degree |
| Spindle Nose / Spindle Bore - Both Spindles | A2-11" / 4.7" |
| Spindle Speeds - Both Spindles | 2,400 RPM |
| Spindle Motor - Both Spindles | 50 HP |
| Milling Spindle Taper | Capto C8 |
| Milling Spindle Speed | 8,000 RPM |
| Milling Spindle Motor | 40 HP |
| Number of Tool Positions | 179 Station Tool Magazine |
| Machine Electrics | 230V/3 Ph/60 Hz |
| Machine Dimensions LxWxH | 260" x 144" x 137" |
| Machine Weight | 83,600 lbs. |
