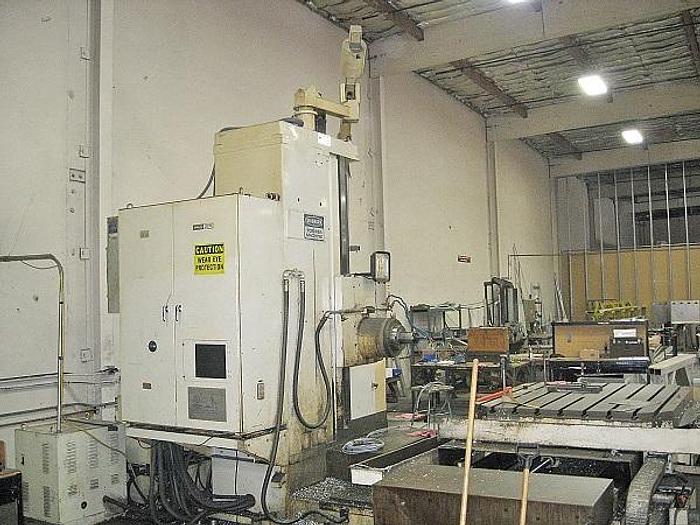

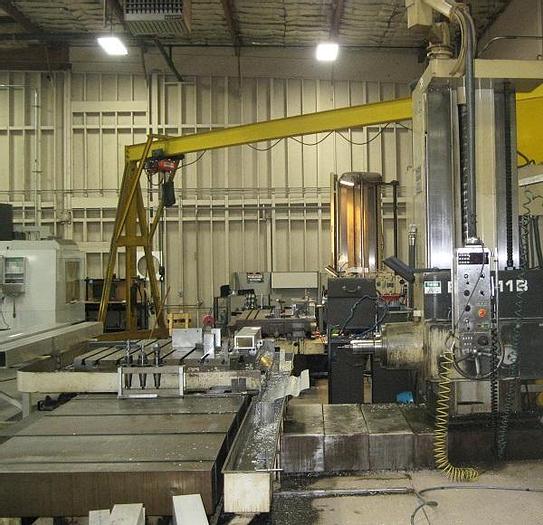

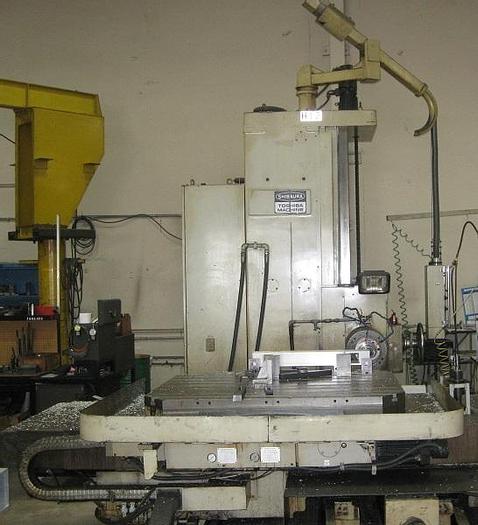

1980's Toshiba BTD-11 CNC Table Type
No longer available
1980's Toshiba BTD-11 CNC Table Type
$35,000 (USD)
Location:California
Description

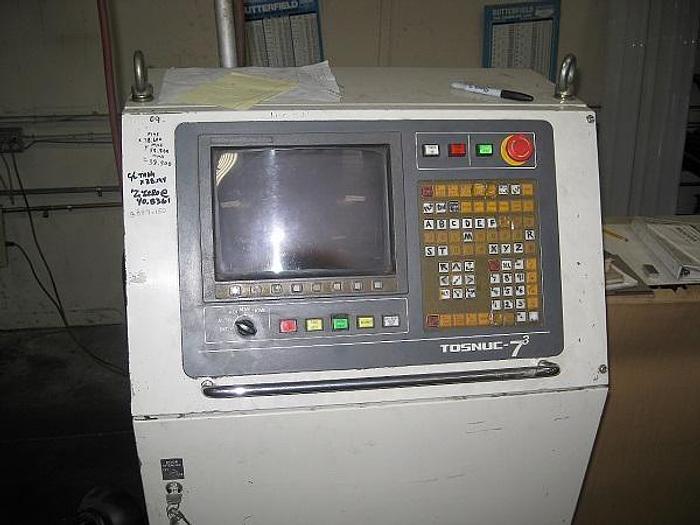

Tosnuc 777 CNC Control Retrofit in 1990's
Full Pendant Operation
B-Axis Power Rotary Table
Power Draw Bar
4-Way Bed Construction
Way Covers
Coolant System
20 HP Spindle Drive Motor
Specifications
| Manufacturer | Toshiba |
| Model | BTD-11 Tosnuc 777 Control |
| Year | 1985 |
| Condition | Used |
| Stock Number | 117568 |
| Table Size | 55.12" x 62.99" |
| Maximum Weight on Table | 13,860 lbs. |
| X-Axis Travel | 78.74" |
| Y-Axis Travel | 72" |
| Z-Axis Travel | 19.68" |
| W-Axis Travel | 78.74" |
| Spindle Taper | #50 Taper |
| Spindle Speeds | 2 - 2,500 RPM |
| Spindle motor | 20 HP |
| Transmission | 2 Speeds |
| Spindle Diameter | 4.33" |
| Rapid Traverse Rates | 394 IPM |
| Cutting Feedrates | 157 IPM |
| Machine Dimensions | 232" x 187" |
| Machine Weight | 58,300 lbs. |
