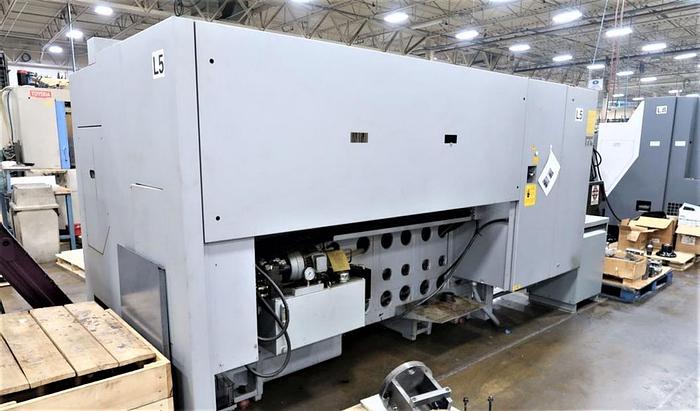

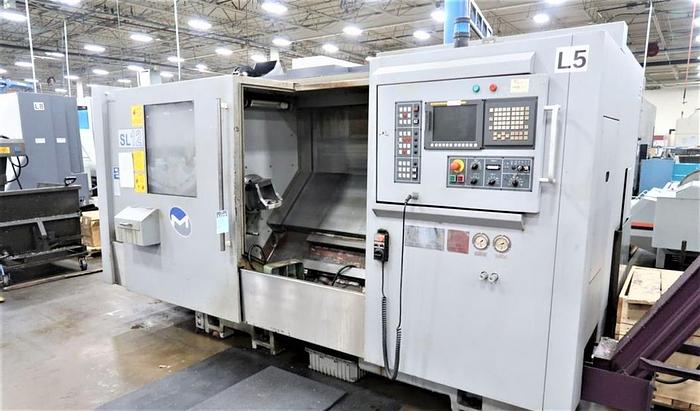

2009 Milltronics SL12 Microcut 92HTL
No longer available
2009 Milltronics SL12 Microcut 92HTL
$44,500 (USD)
Location:Illinois
Description
Programmable Tailstock
Spindle Brake
Tool Pre-Setter
Chip Conveyor
All Available Manuals
**Brand new 12" 3-Jaw Hydraulic Chuck**
Specifications
| Manufacturer | Milltronics |
| Model | SL12 Microcut 92HTL |
| Year | 2009 |
| Condition | Used |
| Stock Number | 117564 |

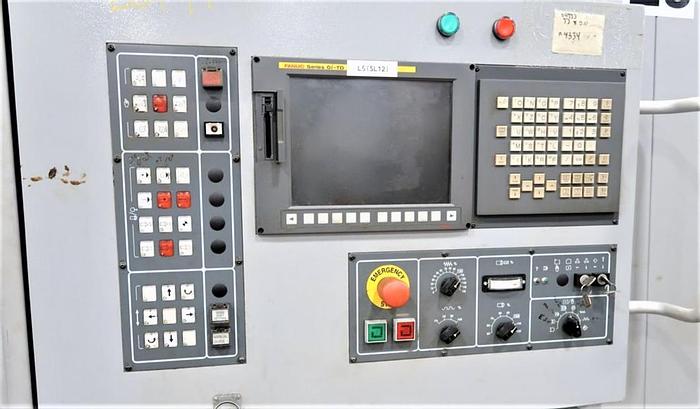

| Machine Control | Fanuc Oi-TD |
| Chuck Size | 12" 3-Jaw Hydraulic |
| Maximum Swing/Over Carriage | 30" / 23" |
| Maximum Turning Length | 49" |
| X-axis travel | 8.85" |
| Z-Axis Travel | 49.2" |
| Spindle Nose / Bore / Bar Capacity | A2-8 / 3.97" / 3.58" |
| Spindle Speeds | 25 to 2,500 rpm |
| Spindle Motor | 35 hp 2-Speed |

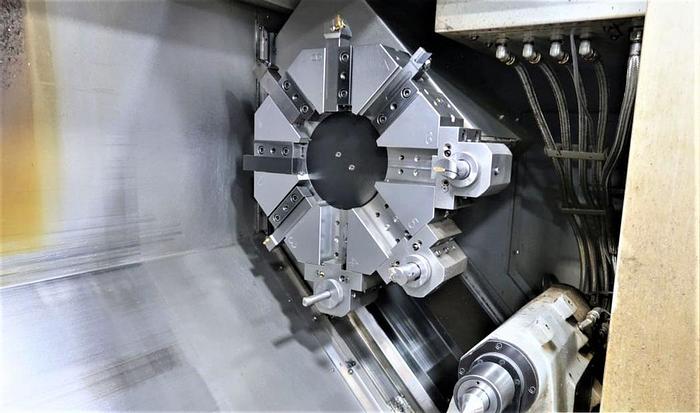

| Number of Turret Positions | 8 |
| Rapid Traverse Rates | 1,000 ipm |
| Machine Dimensions LxWxH | 150"x77"x74" |
| Machine Weight | 16,000 lbs |
