2007 Citizen A20-VI

2007 Citizen A20-VI

Contact us for price

Maryland

orCall (863) 439-6066

Description

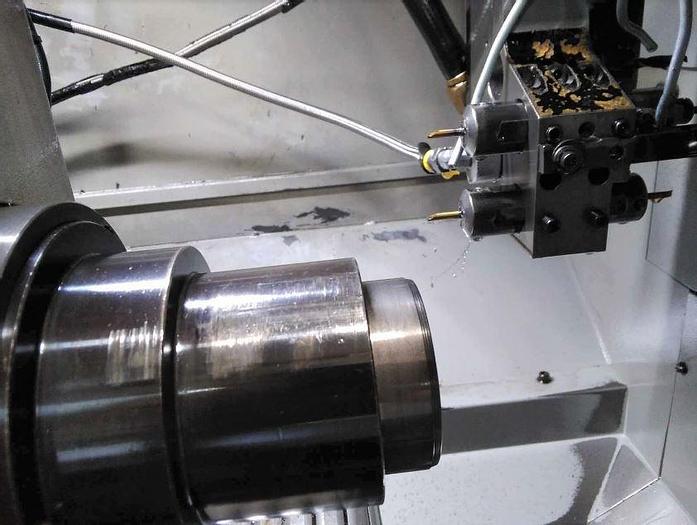

This 2007 Citizen A20-VI sliding headstock 20mm swiss action automatic 6-Axis screw machine with C1 & C2

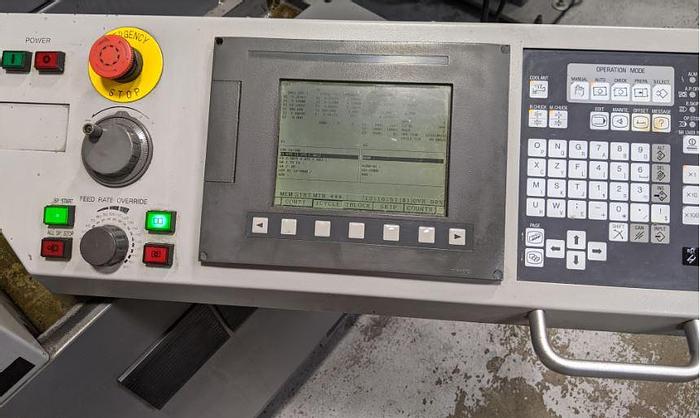

FANUC 32i-A

SLIDING HEADSTOCK

NON-GUIDE BUSHING

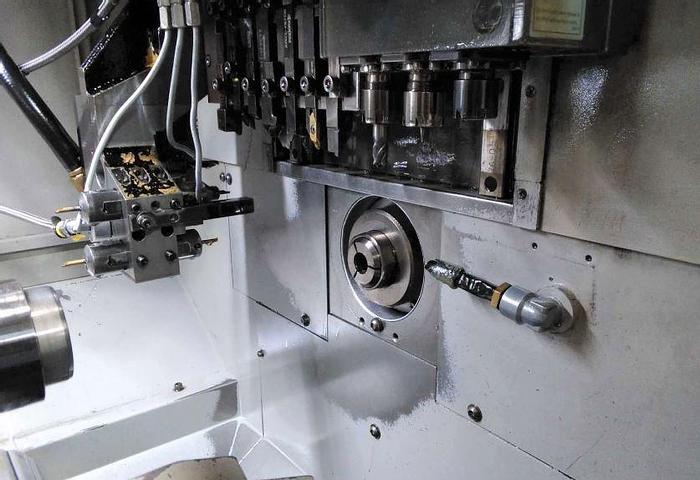

3 LIVE TOOL POSITIONS

6 AXES (X1, Y1, Z1, Z2, C1, C2)

4 CONTROLLABLE AXES

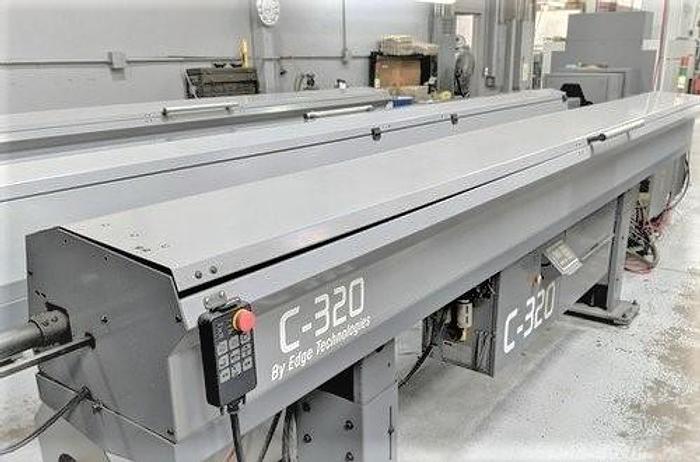

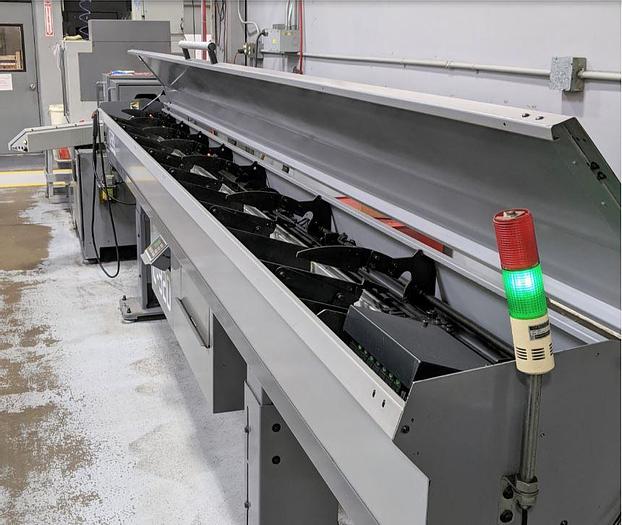

12' EDGE TECHNOLOGIES C-320 BAR FEEDER

COOL BLASTER CB510 HIGH PRESSURE COOLANT, 3 PORT, 2000PSI

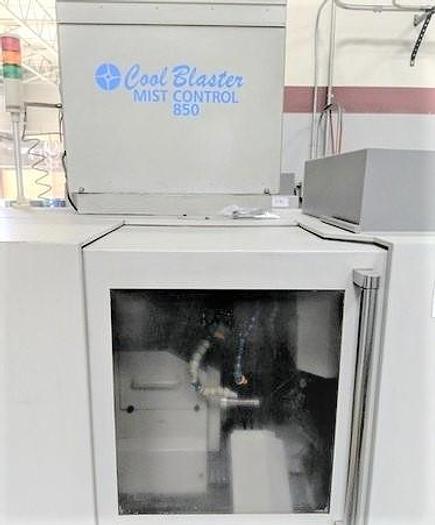

COOL BLASTER 850 MIST CONTROL

CHIP CONVEYOR

PARTS CATCHER

PARTS CONVEYOR

RIGID TAPPING


TOOLING INCLUDED:

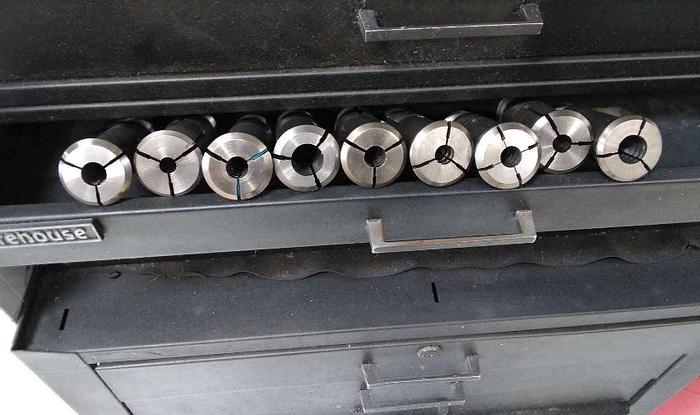

(10) COLLETS

(1) BAR LOADER CONE PUSHER FOR BAR EJECTION


ORIGINAL OWNER

INSTALLED MAY, 2008


RUNNING OIL

CUTTING PRIMARILY TITANIUM

Specifications

ManufacturerCitizen
ModelA20-VI
Year2007
ConditionUsed
Stock Number117562
Machining Diameter.813"
Maximum Cutting Length2"
Maximum Drilling Diameter.375"
Main & Subspindle Speeds10,000 rpm / 8,000 rpm
Main Spindle / Sub Spindle Motor5 hp / NA
Number of Tool Positions18 / 3 Live Tool Positions
Gang Slide Tool Positions7
Front / Back Work Tool Post Positions4 / 4
Live Tool Speed6,000 rpm
Controllable Axes4
Maximum Bar Capacity.813"
Machine Dimensions LxWxH84"x47"x71"
Machine Weight5,070 lbs
