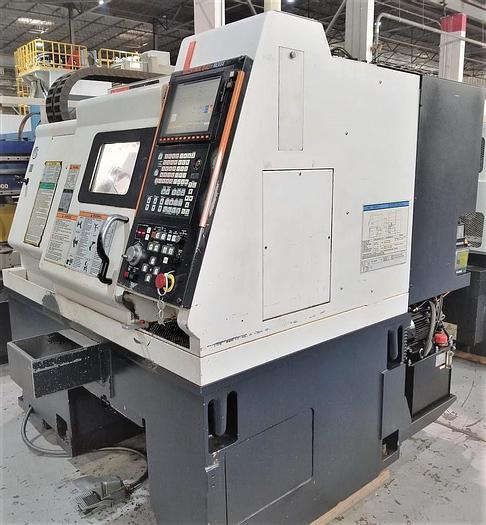

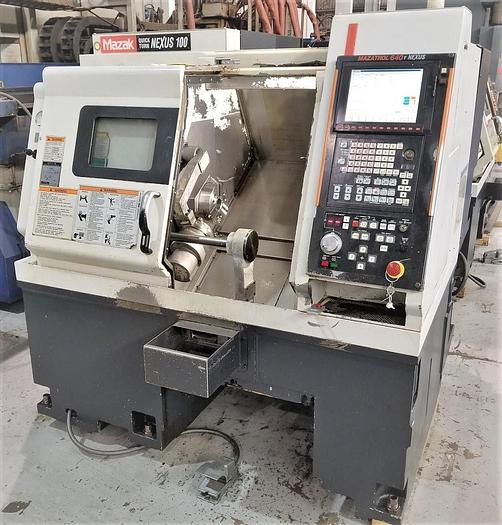

2004 Mazak Nexus QTN100
No longer available
2004 Mazak Nexus QTN100
$29,900 (USD)
Location:Illinois
Description
6" 3 Jaw Kitagawa Hydraulic Chuck

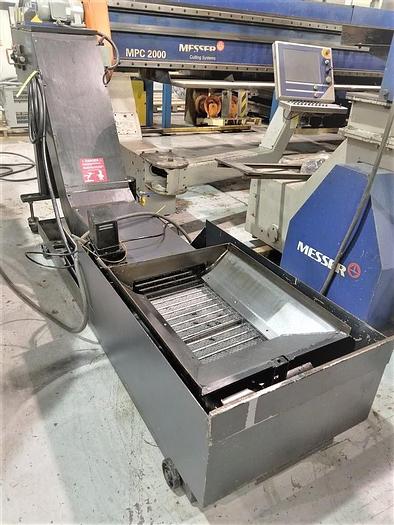

Chip Conveyor
Automatic Parts Catcher
Tailstock
2" Bar Capacity Option

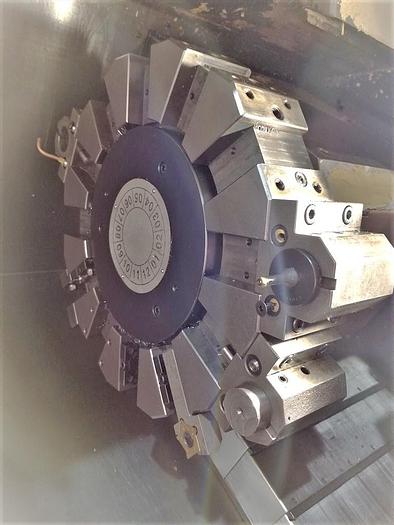

12 Position Turret Automatic Tool Eye Multi-Tap Transformer Coolant Tank with Pump All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN100 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117555 |
| Control | Mazatrol Fusion 640T |
| Chuck Size | 6" 3-Jaw Hydraulic |
| Maximum Swing | 21.6" |
| Maximum Cutting Diameter | 11" |
| Maximum Machining Length | 12.151" |
| X-Axis Travel | 7.5" |
| Z-Axis Travel | 13" |
| Spindle Nose / Bore / Bar Capacity | A2-5 / 2.4" / 2.00" |
| Spindle Speeds | 60 - 6,000 rpm |
| Spindle Motor | 15 HP |
| Number of Turret Positions | 12 Position Drum |
| Rapid Traverse Rates X/Z | 1181 / 1299 IPM |
| Tailstock Body Travel / Center | 13.7" / MT#4 |
| Machine Dimensions LxWxH | 66"x65"x67" |
| Machine Weight | 7,770 lbs. |
