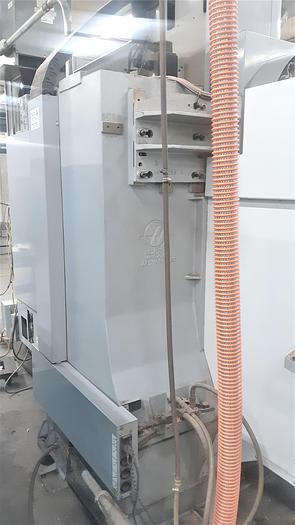

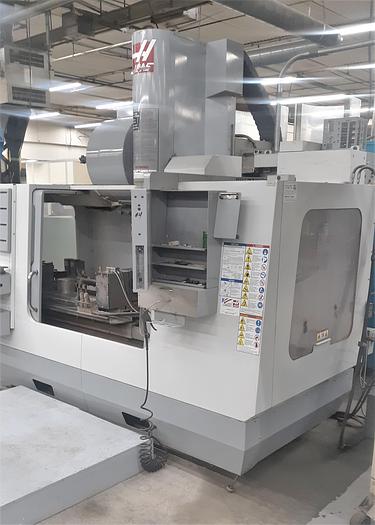

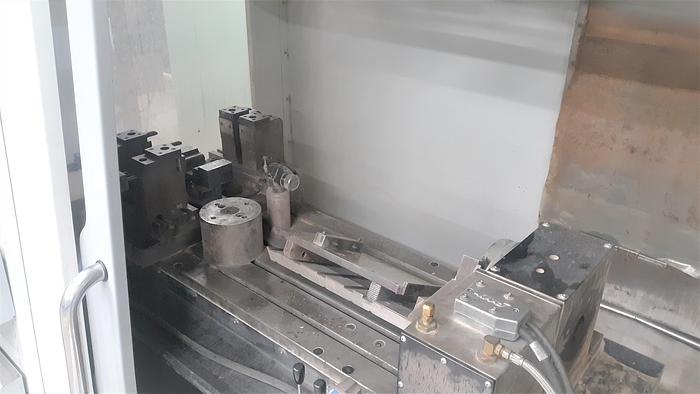

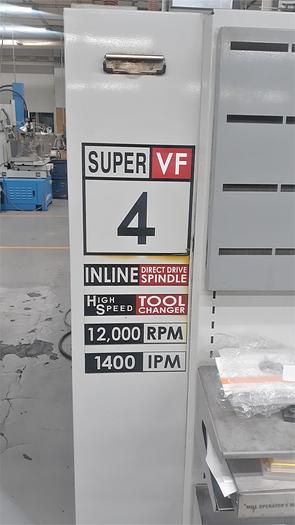

2009 Haas VF4SS

2009 Haas VF4SS

$59,950 (USD)

Alabama

orCall (863) 439-6066

Description

Haas 4th Axis Rotary Table

4th Axis Drive & Wiring

30+1 Position Side Mounted Tool Changer

Haas Wireless Tool & Part Probing

Auger Style Chip Conveyor

Spindle Orientation

Coordinate Rotation & Scaling

User Definable Macros

Programmable Coolant Nozzle

Rigid Tapping

Coolant Tank with Pump

Inline Direct Drive 12,000 RPM Spindle

External High Voltage Transformer

Wired 230V Electrics

Ethernet Interface

USB Port Interface

RS 232C Port Interface for DNC Operation

All Available Manuals

Specifications

ManufacturerHaas
ModelVF4SS
Year2009
ConditionUsed
Stock Number117546
Table size52" x 18"
Max table load1,750 lbs
X axis travel50"
Y axis travel20"
Z axis travel25"
Spindle taper#40
Spindle speed12,000 RPM
Spindle motor30 HP - Direct Drive
Spindle nose to table top4.2" - 29.2"
Number of tool positions30 + 1 Position Side Mount
Max tool weight12 lbs.
Rapid feed rate (x,y,z)1,400 IPM
Cutting feed rate0.1 - 833 IPM
Machine dimensions152" x 99" x 106"
Machine weight (approximately)13,800 lbs.
