2003 Doosan/Daewoo Puma 230B
No longer available
2003 Doosan/Daewoo Puma 230B
Location:Mississippi
Description

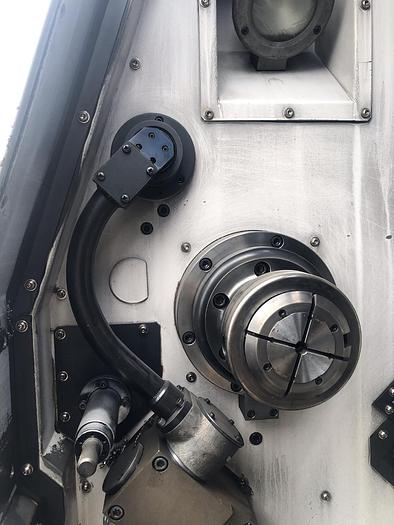

Collet Chuck
Tool Presetter

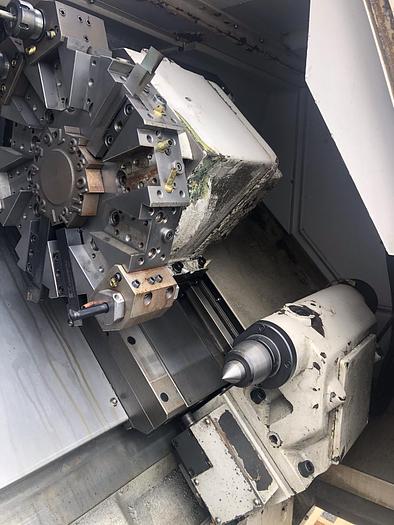

Programmable Tailstock
RS 212 Port
All Available Manuals
Specifications
| Manufacturer | Doosan/Daewoo |
| Model | Puma 230B |
| Year | 2003 |
| Condition | Used |
| Stock Number | 117551 |

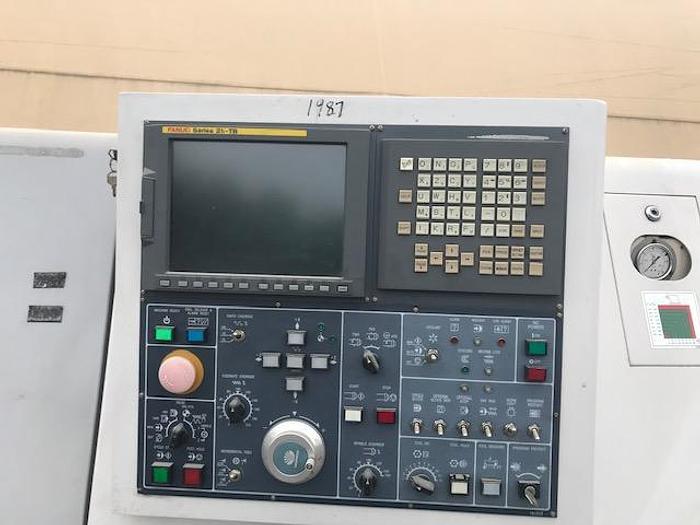

| Machine Control | Fanuc 21T |
| Chuck Size | Collet Chuck |
| Maximum Swing over Bed | 21.7" |
| Maximum Cutting Diameter | 13.8" |
| Distance Between Centers | 26.3" |
| X-Axis Travel | 9.3" |
| Z-Axis Travel | 22.8" |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 2.99" / 2.6" |
| Spindle Speeds | 45-4,500 rpm |
| Spindle Motor | 25 hp |

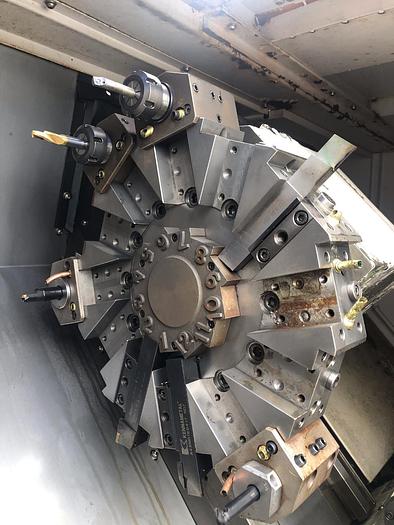

| Number of Turret Positions | 12 |
| Rapid Traverse Rates X/Z | 945 / 1,200 ipm |
| Tailstock Quill Diameter / Center | 3" / #4 MT |
| Tailstock Body Travel / Quill Travel | na / 3.1" |
| Machine Dimensions LxWxH | 126"x63"x69" |
| Machine Weight | 9,470 lbs |
