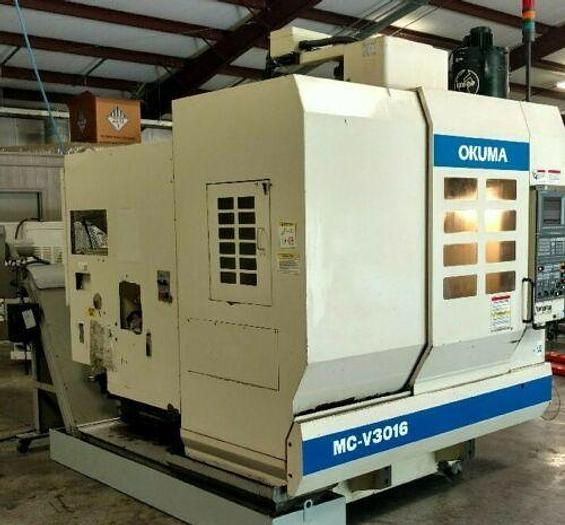

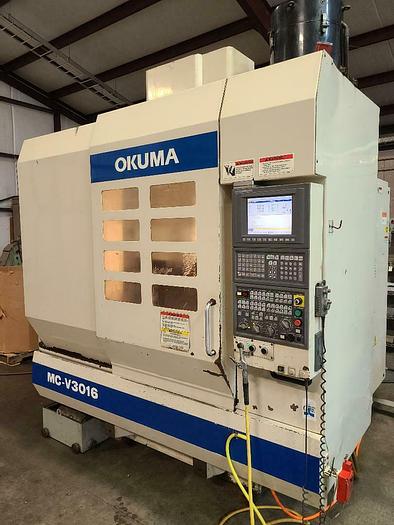

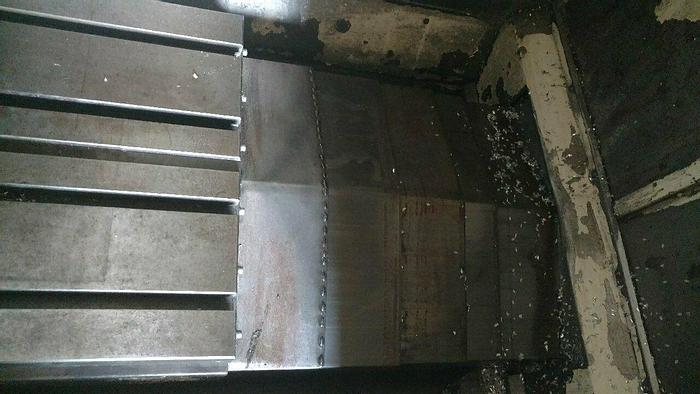

2004 Okuma MC-V3016
No longer available
2004 Okuma MC-V3016
Location:Georgia
Description

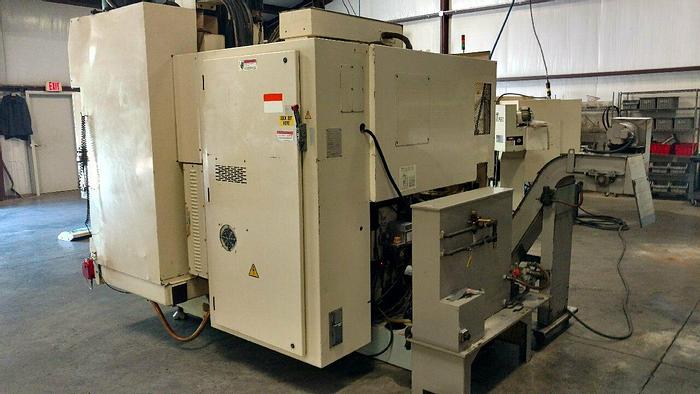

Chip Conveyor
Remote Jog Handle

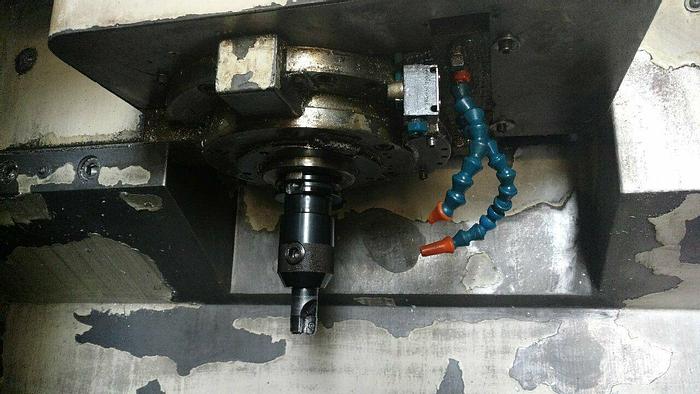

Coolant System
All Available Manuals
Specifications
| Manufacturer | Okuma |
| Model | MC-V3016 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117549 |

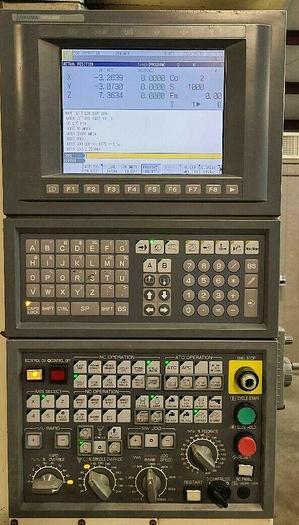

| Machine Control | OSP-E100M |
| Table Size | 39"x20" |
| Maximum Table Load | 1,500 lbs |
| X-axis travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 17" |
| Spindle Nose to Table Top | 6.3" - 24" |
| Spindle Speed | 15,000 rpm |
| Spindle Taper | CAT 40 |
| Spindle Motor | 15 hp |
| Maximum Tool Diameter / Length / Weight | 4.92" / 11.8" / 18 lbs |

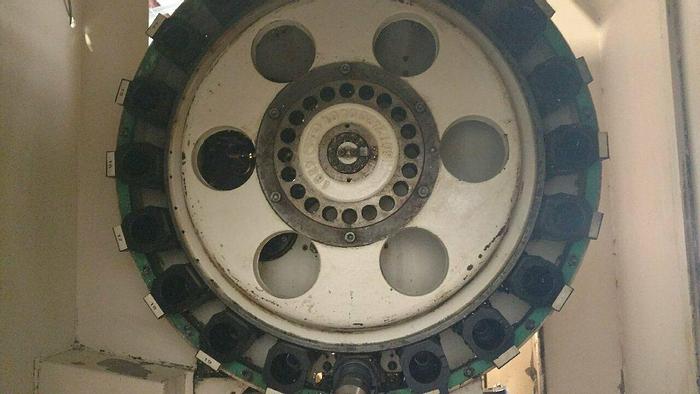

| Tool Magazine Capcity | 20 Position ATC |
| Rapid Traverse Rates (X, Y, Z) | 1417, 1417 / 1191 ipm |
| Machine Dimensions LxWxH | 89"x107"x104" |
| Machine Weight | 14,300 lbs |
