2015 Mazak Quick Turn Universal 250
No longer available
2015 Mazak Quick Turn Universal 250
$49,950 (USD)
Location:Texas
Description
10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Automatic Tool Eye
Parts Catcher (Needs Bucket)
Programmable Tailstock
USB Port Interface
PCMCIA Card Interface
EIA/ISO Input Function
Card Interface
USB Port Interface
RS 232 Port Interface
All Available Manuals
All Available Tool Holders
Wired 460 Voltage Electrics
Specifications
| Manufacturer | Mazak |
| Model | Quick Turn Universal 250 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119810 |

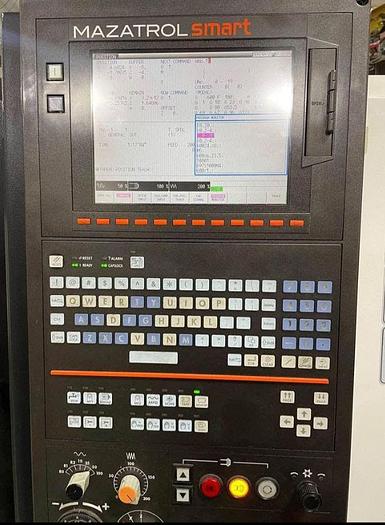

| Machine Control | Mazatrol Smart Control |
| Chuck Sizes Main / Subspindle | 10" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 26" |
| Maximum Cutting Diameter | 16" |
| Maximum Cutting Length | 19.868" |
| X-Axis Travel | 8.26" |
| Z-Axis Travel | 22" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3.0" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 35 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 1181 IPM / 1299 IPM |
| Tailstock Body Travel / Center | 20.65" / MT #4 |
| Tailstock Quill Travel / Quill Diameter | 3.7" / 3.7" |
| Machine Dimensions LxWxH | 120"x87"x90" |
| Machine Weight | 10,125 lbs |
