2022 Kitamura MyCenter 3XV
No longer available
2022 Kitamura MyCenter 3XV
Location:Florida
Description
Thru the Spindle Coolant 1,000 PSI
30 Station Side Mounted Tool Changer

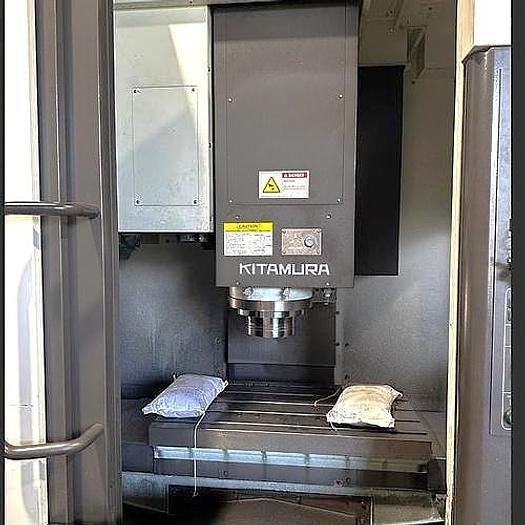

15,000 RPM High Speed Spindle
High-Speed Machining

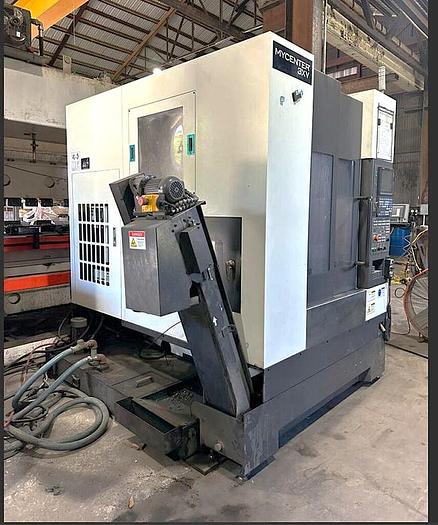

Chip Conveyor
Remote Jog Handle
Spindle Orientation
Rigid Tapping
Status Lights
Coolant System with Tank & Pump
USB Memory Interface
RS 232 Port Interface
Maintenance Support Functions
2 MB Data Server
Tooling Included
Wired 200/220V Electrics
G Code Style Programming

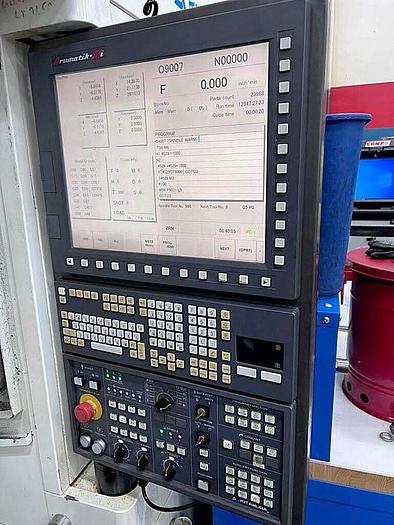

Fanuc User Friendly Control with Ability to Run Fanuc Programs with Little to No Modification
19" LCD Monitor with Touch Screens
**724 Total Run Time Hours**
Specifications
| Manufacturer | Kitamura |
| Model | MyCenter 3XV |
| Year | 2022 |
| Condition | Used |
| Stock Number | 119731 |
| Machine Control | Arumatik Mi |
| Table size | 33.9" x 19.7" |
| X-Axis Travel | 29.9" |
| Y-Axis Travel | 20.1" |
| Z-Axis Travel | 20.1" |
| Distance Spindle Nose to Table Top | 4 to 24" |
| Spindle taper | CAT 40 |
| Spindle speed | 15,000 RPM |
| Spindle Motor | 41 HP |
| Tool Magazine Capcity | 30 Position Side Mount ATC |
| Tool Change Time Chip to Chip / Tool to Tool | 2.2 Seconds / 4.2 Seconds |
| Rapid Traverse Rates X, Y / Z | 2,047 IPM / 1890 IPM |
| Machine Dimensions LxWxH | 119.6" x 90.3" |
