2007 Haas SL-40LB with 7.09" Bore and 80" centers
2007 Haas SL-40LB with 7.09" Bore and 80" centers
Location:Texas
Description

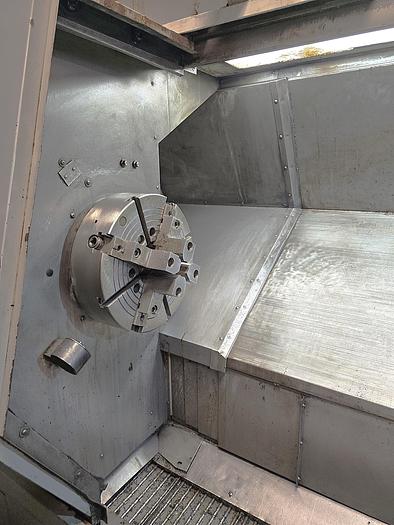

20" 4 Jaw Manual Chuck 7.08" Big Bore Spindle Option
80" Between Centers Option Tool Presetter - No Probe included Chip Conveyor - Belt Style Extra Performance Package with 55 HP Spindle Motor

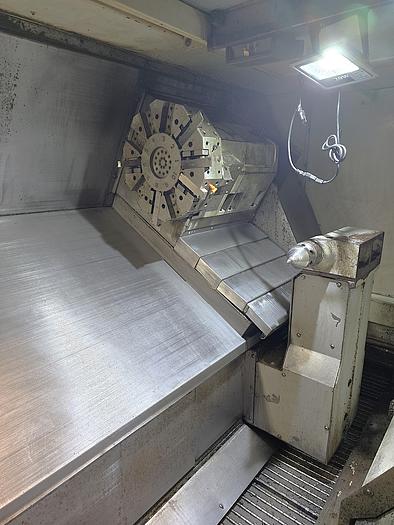

Fully Programmable Tailstock
Rear Chuck Mount Provision for A2-11" Spindle Nose
2 Speed Gearbox
Early Power Failure Detection Module 2 Speed Geared Headstock
USB Port Interface RS 232 Port Interface Rigid Tapping All Available Manuals
All Available Tool Blocks
**Feed Cutting Hours 16,792**

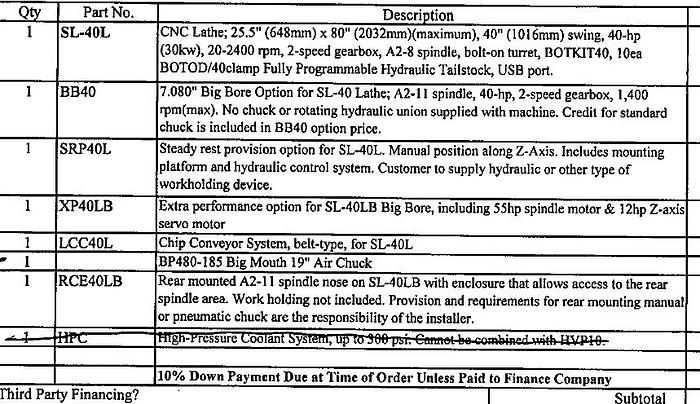

**This machine was sold new with a 19" Air Chuck that was subsequently replaced with the current manual chuck**
**This machine was sold new with the Haas steady rest provision which included a mounting platform and the hydraulic control system for it. It has since been removed**
Specifications
| Manufacturer | Haas |
| Model | SL-40LB |
| Year | 2007 |
| Condition | Used |
| Stock Number | 119730 |

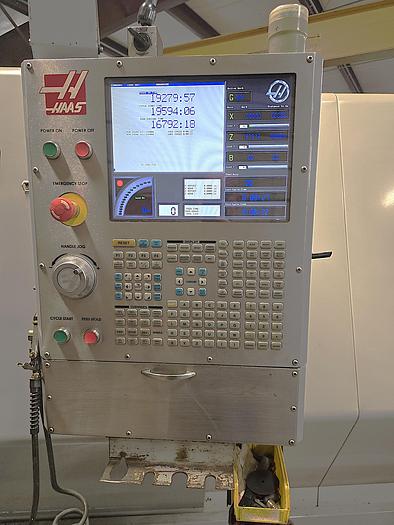

| Control | Haas CNC Control |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25" |
| Maximum Cutting Diameter | 25.5" |
| Maximum Cutting Length | 80" |
| Maximum Distance Between Centers | 81" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 80" |
| Spindle Nose / Spindle Bore | A2-11" / 7.08" |
| Spindle Speeds | 1,400 RPM |
| Spindle Motor | 55 HP |

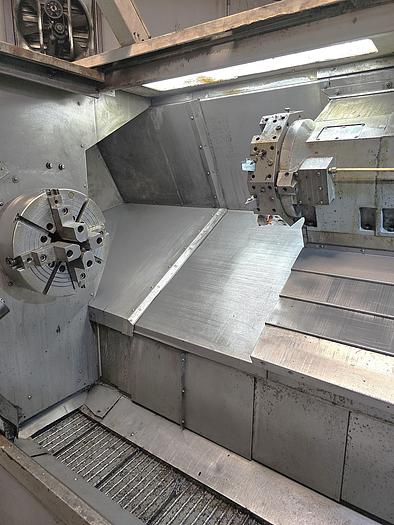

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Tailstock Taper | 74" / MT #5 |
| Machine Dimensions | 195" x 102" x 89" |
| Machine Weight | 27,000 lbs. |
