2014 Haas ST-45M with Milling Capability, 18" Hyd. Chuck, 6.5" Bar Capacity, Chip Conveyor, Tailstock,

Live Milling/Drilling Capability

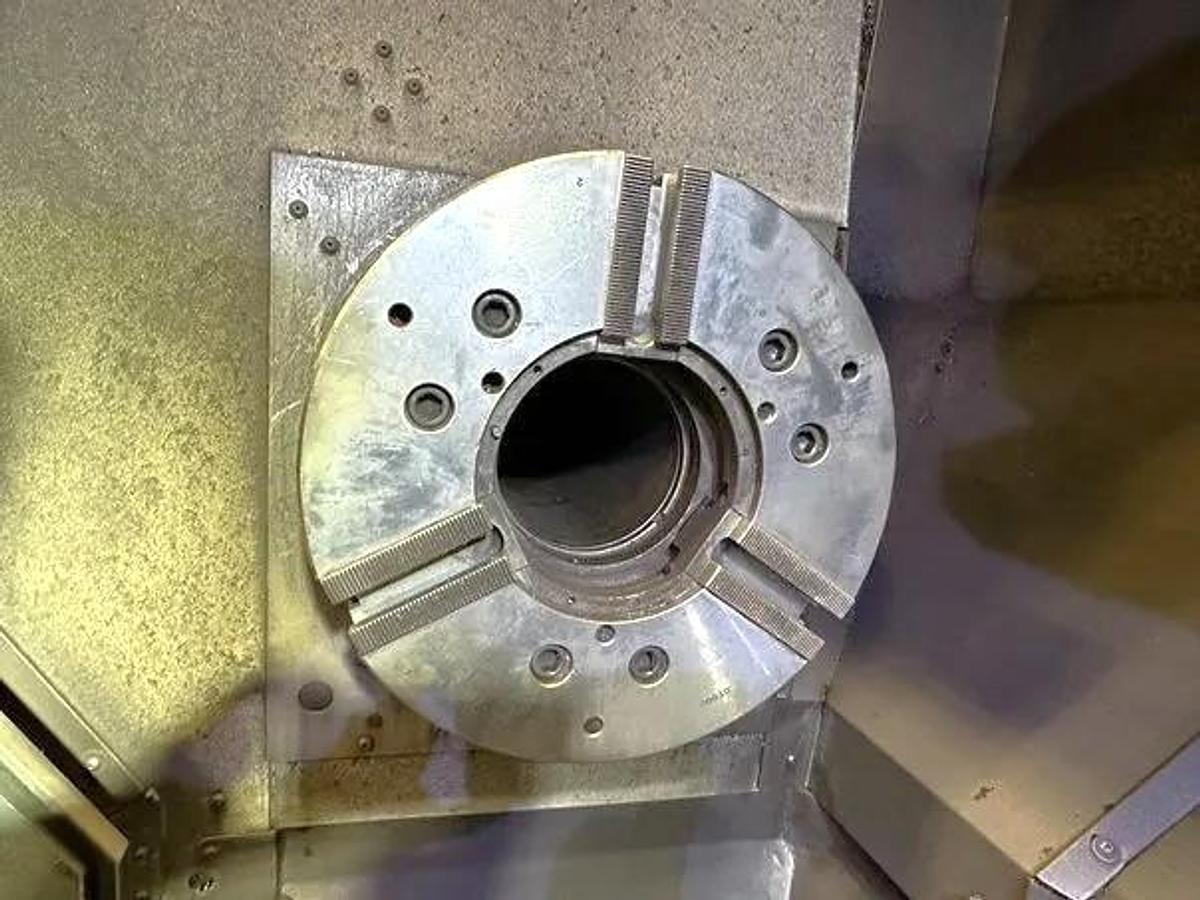

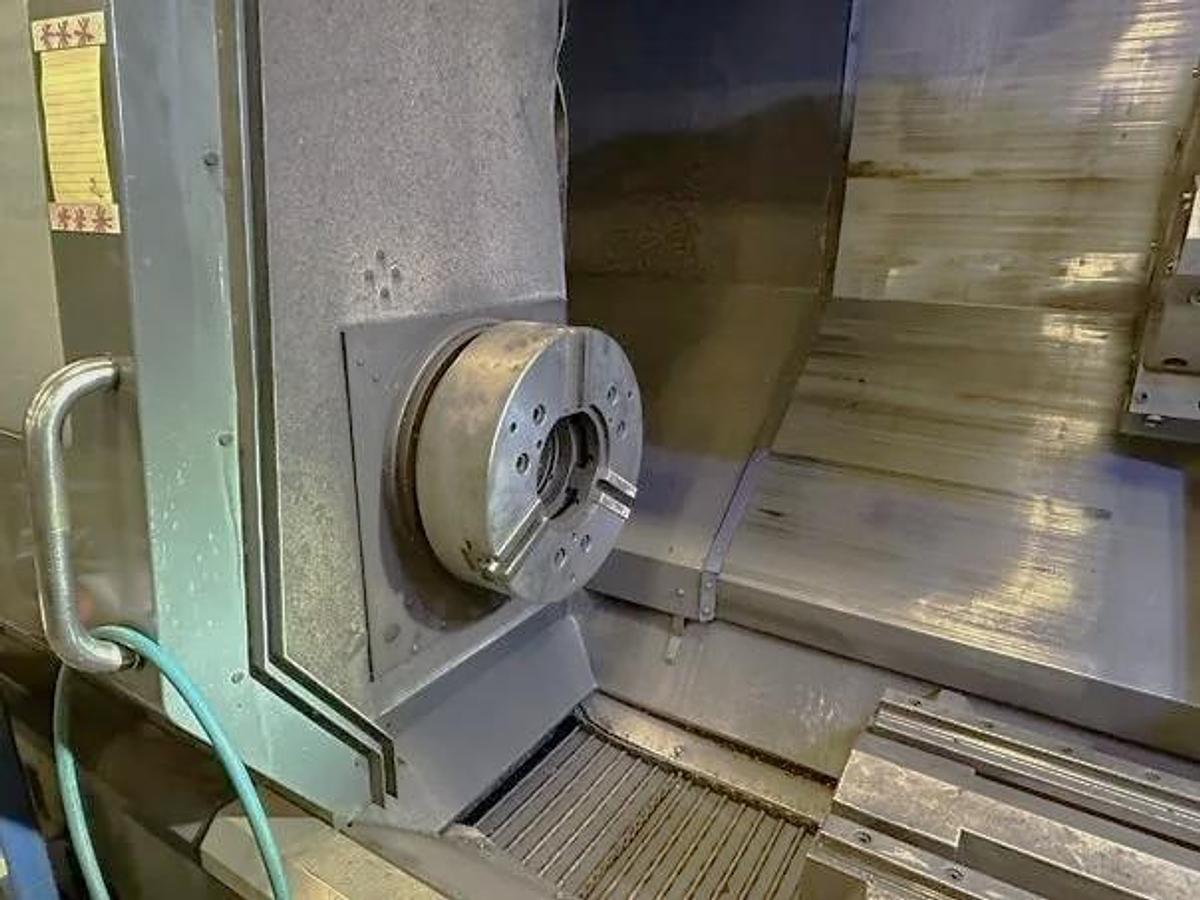

18" 3 Jaw Hydraulic Chuck with 6.5" Hole

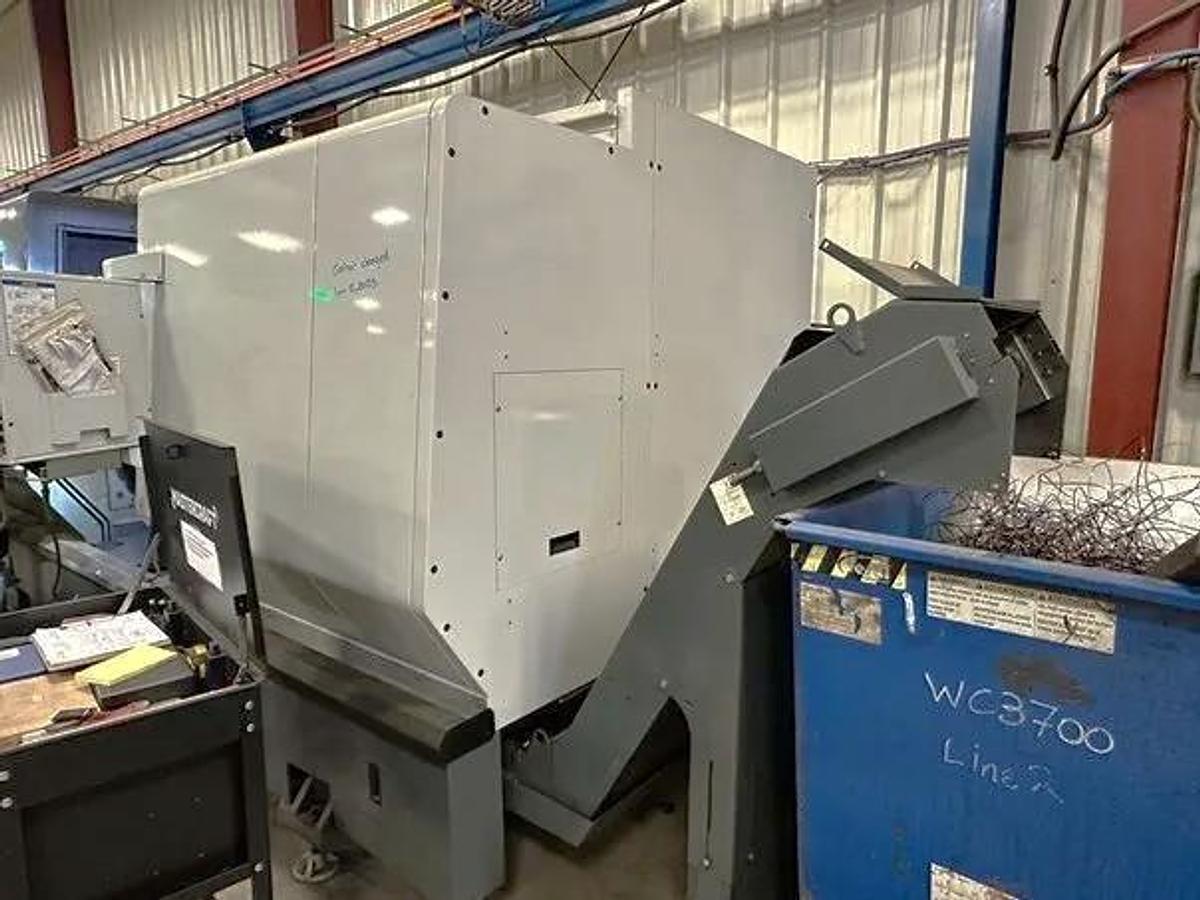

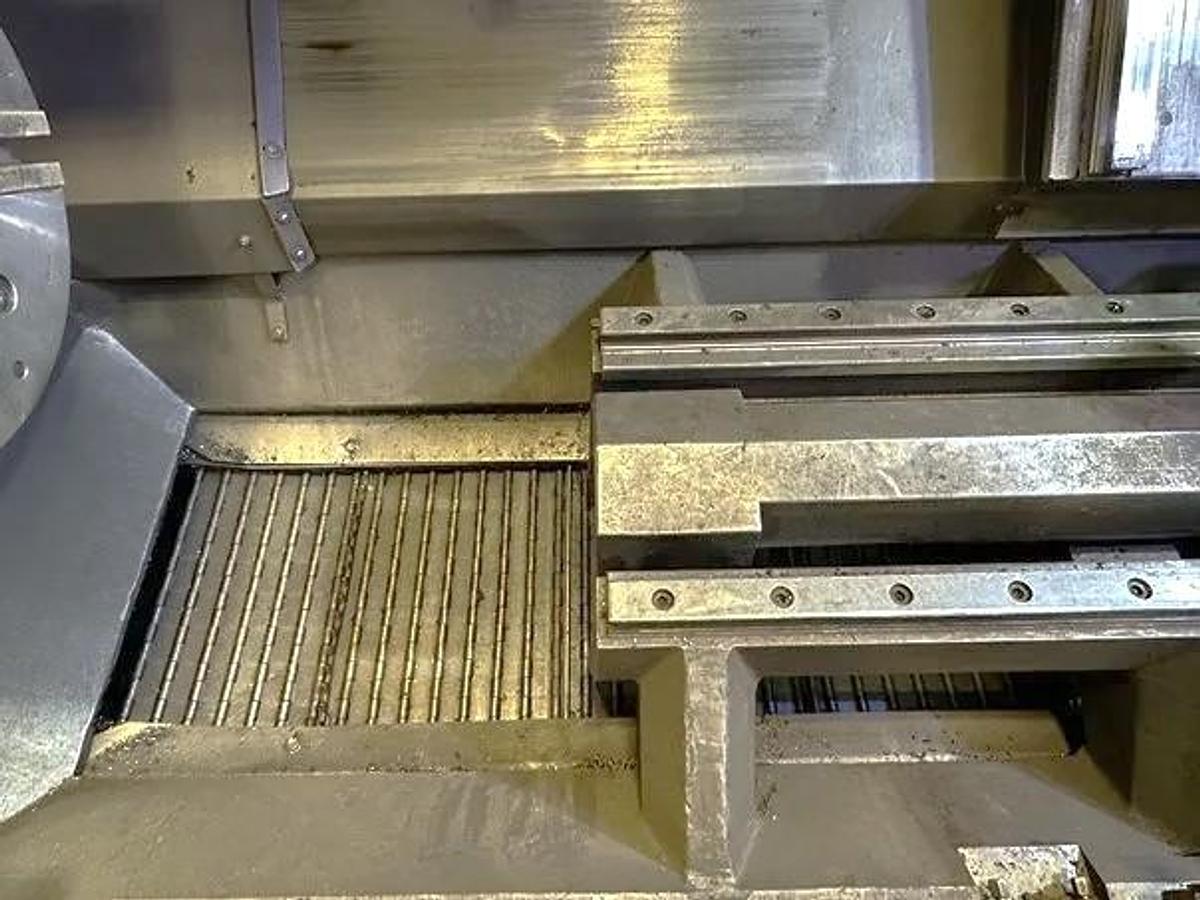

Belt Style Chip Conveyor

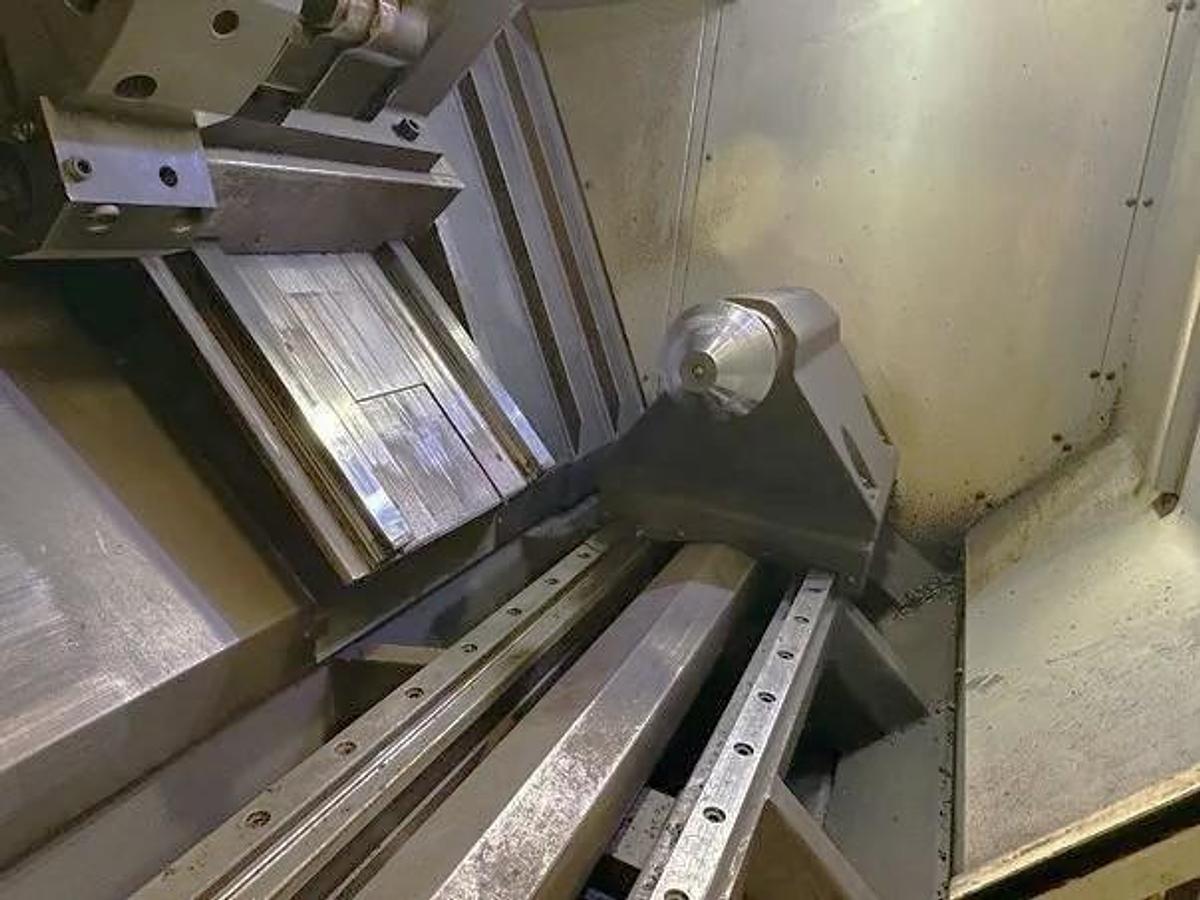

Tailstock

2-Speed Gearbox

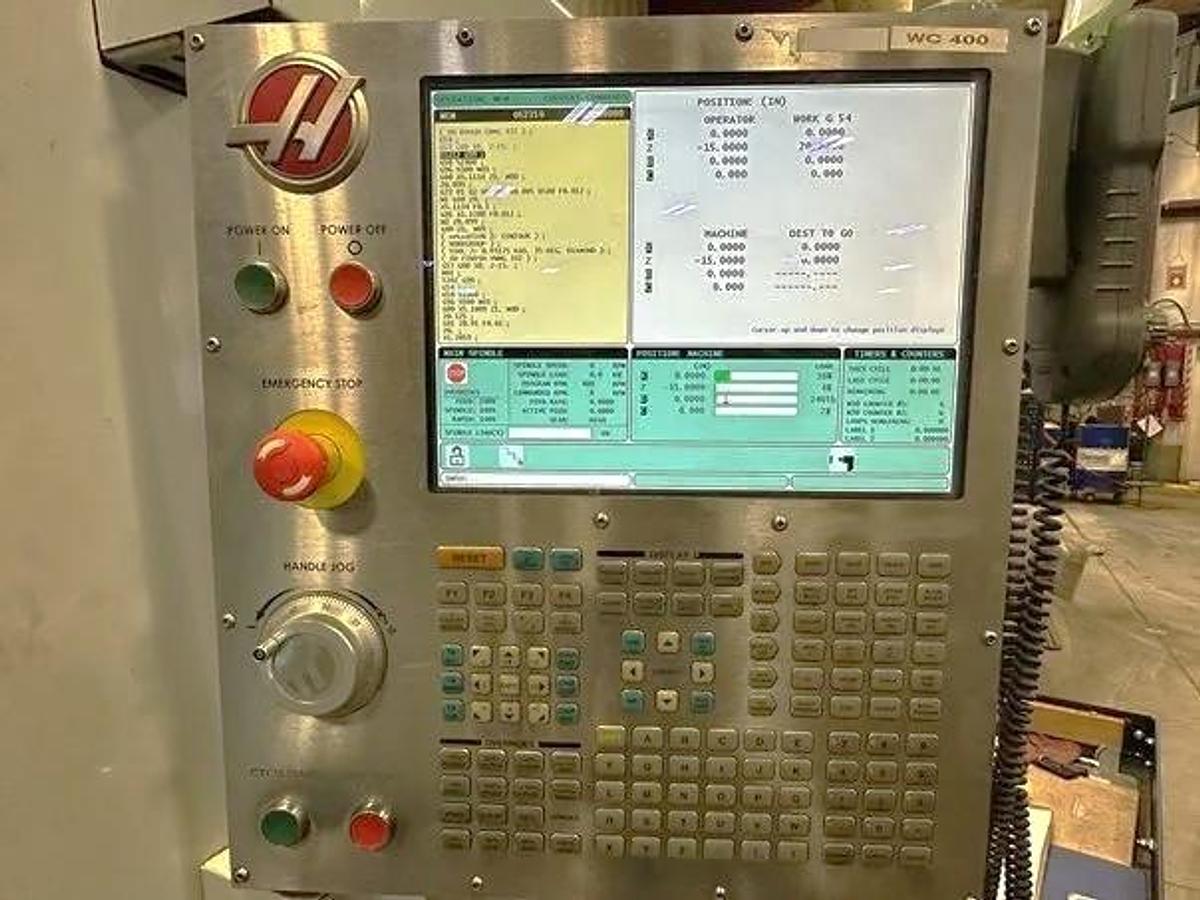

Remote Jog Handle

Rigid Tapping

Coolant System with Tank & Pump

Memory Key Lock Switch

USB Port Interface

RS 232 Port Interface

All Available Tool Blocks

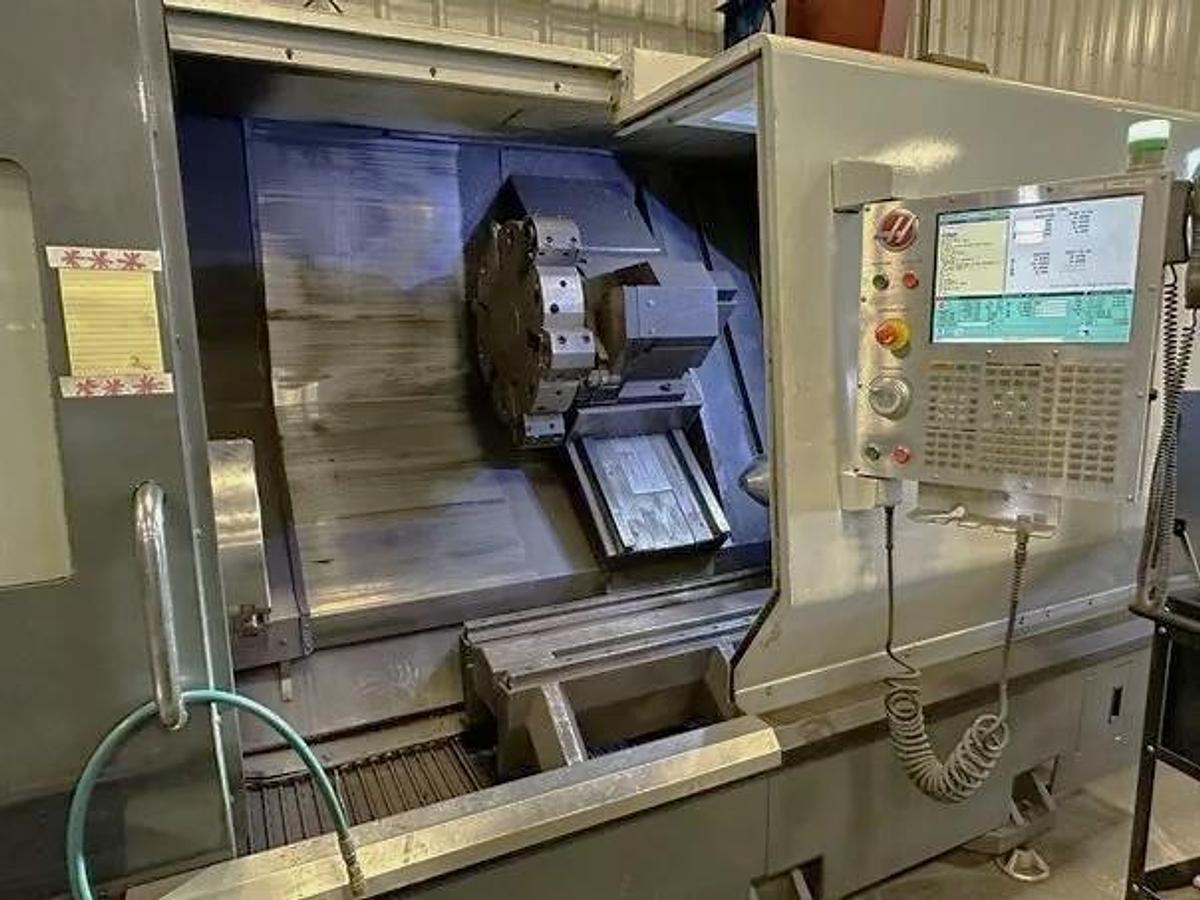

The 2014 Haas ST-45M is a versatile CNC lathe equipped with milling capabilities. It features an 18-inch hydraulic chuck and can accommodate a bar capacity of up to 6.5 inches. With a maximum swing of 34.5 inches and a turning diameter of 25.5 inches, this machine is well-suited for handling large workpieces. The machining length reaches up to 44 inches, supported by a robust X-axis travel of 17 inches and Z-axis travel of 44 inches.

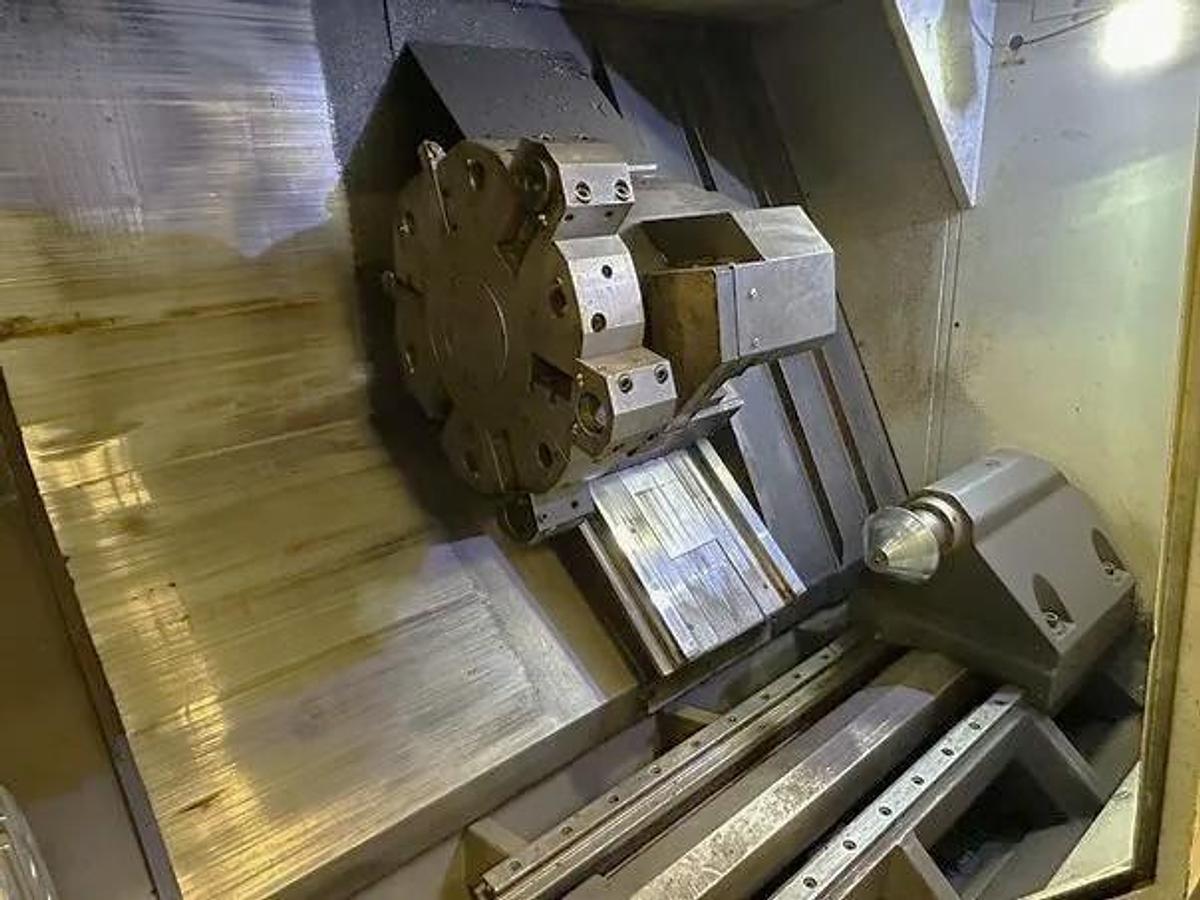

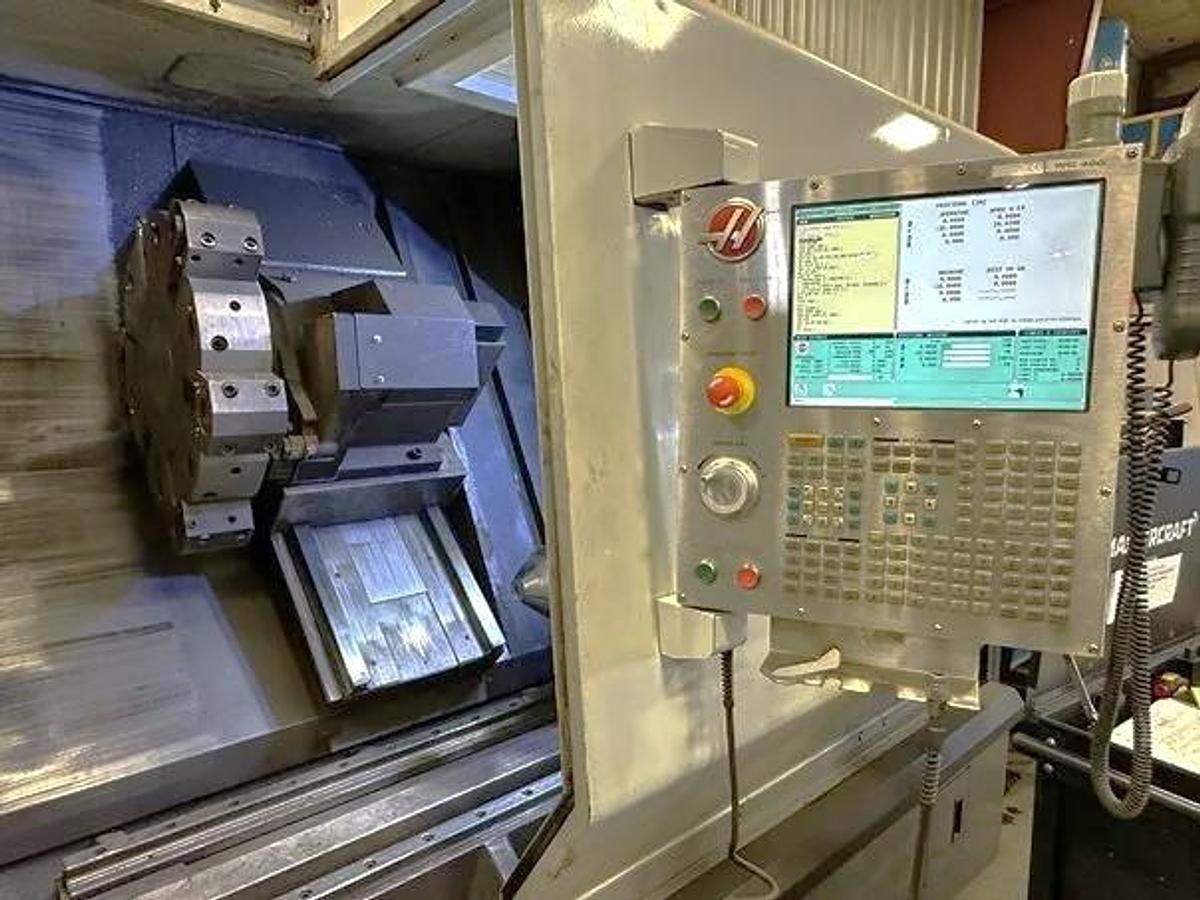

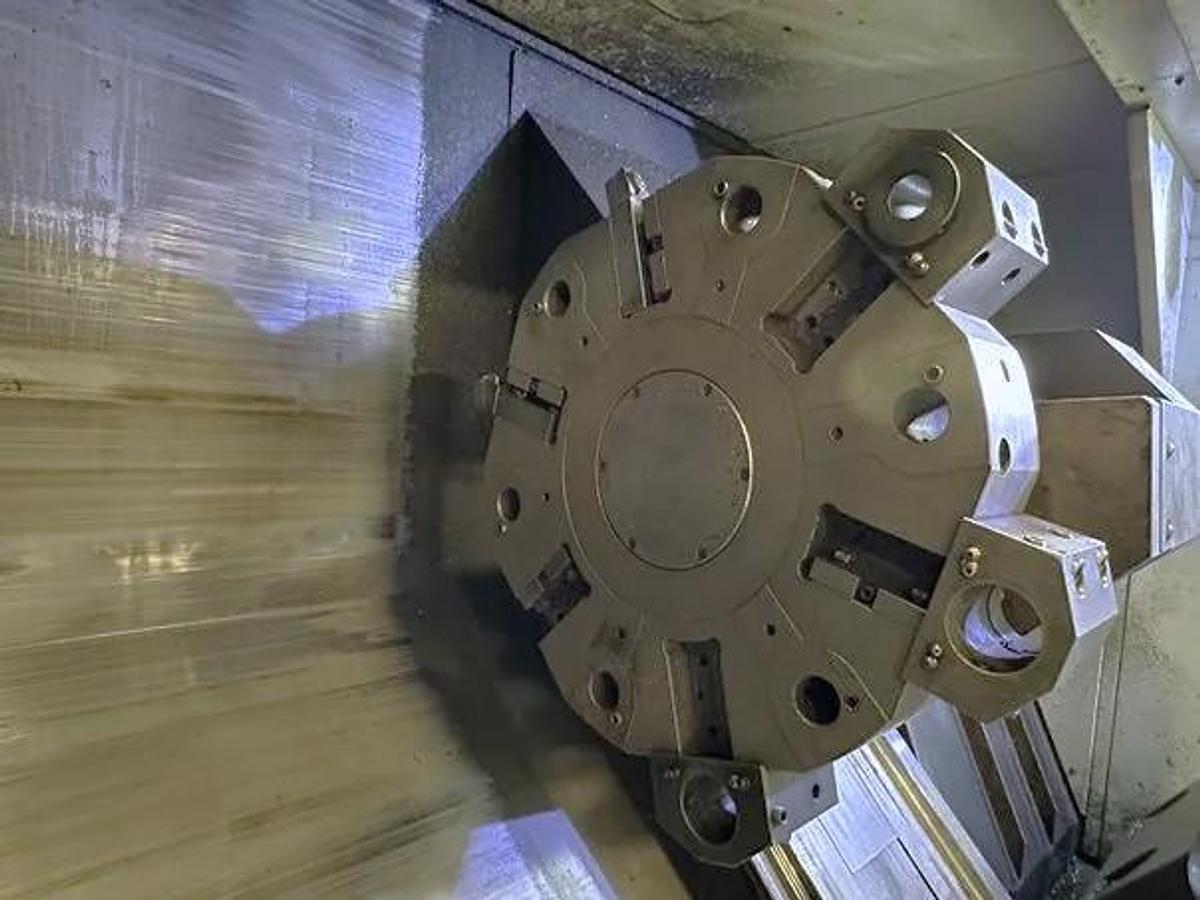

Powered by a 40 HP spindle motor, the ST-45M achieves a maximum spindle speed of 1,400 RPM. It boasts a spindle torque of 1,400 ft-lbf at 150 RPM, ensuring effective cutting performance. The 12-station bolt-on turret facilitates quick tool changes, enhancing machining efficiency. Rapid traverse rates for the X and Z axes are 710 IPM and 320 IPM, respectively, contributing to swift production cycles.

Additional features include a chip conveyor and tailstock, optimizing the machine's operational capabilities. With dimensions of 215 inches by 91 inches by 100 inches and a weight of 27,000 pounds, this used machine embodies stability and durability. Ideal for a range of industrial applications, the Haas ST-45M is a reliable choice for precision machining tasks.
