2005 Mazak Nexus QTN 300/1200 with Chip Conv., 3" Bar Cap., 10" Chk, Tailstock, Tool Presetter, Fusion 640T Nexus Control
2005 Mazak Nexus QTN 300/1200 with Chip Conv., 3" Bar Cap., 10" Chk, Tailstock, Tool Presetter, Fusion 640T Nexus Control
$49.500 (USD)
Ubicación:Texas
o
Llamar (863) 439-6066
Descripción

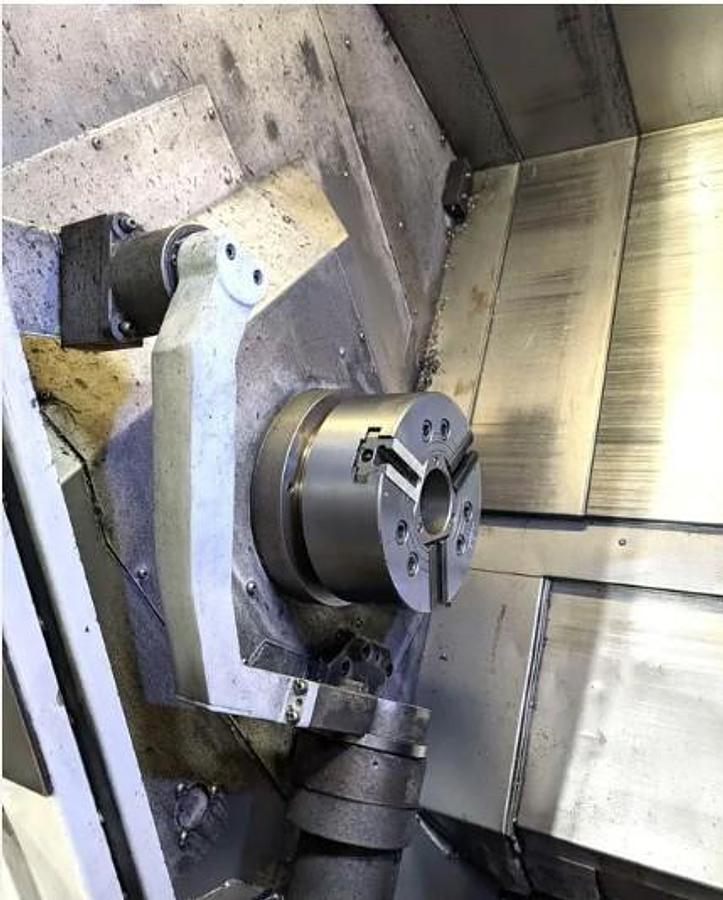

10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Automatic Tool Eye
Programmable Tailstock
EIA/ISO Input Function
IC Memory Card Interface
Ethernet Interface
PCM CIA Interface (2 slots)
RS232 Port Interface
Hydraulic Pressure Interlock
Chuck Open/Close Confirmation
Door Interlock
Multi-Tap Transformer
Coolant Tank with Pump with 118 PSI High Pressure
Backround Tool Path Check
User Macro
User Macro Interupt
600 Macro Variables
Work Coordinates Select
Direct DWG Size Input
All Available Manuals
All Available Tooling

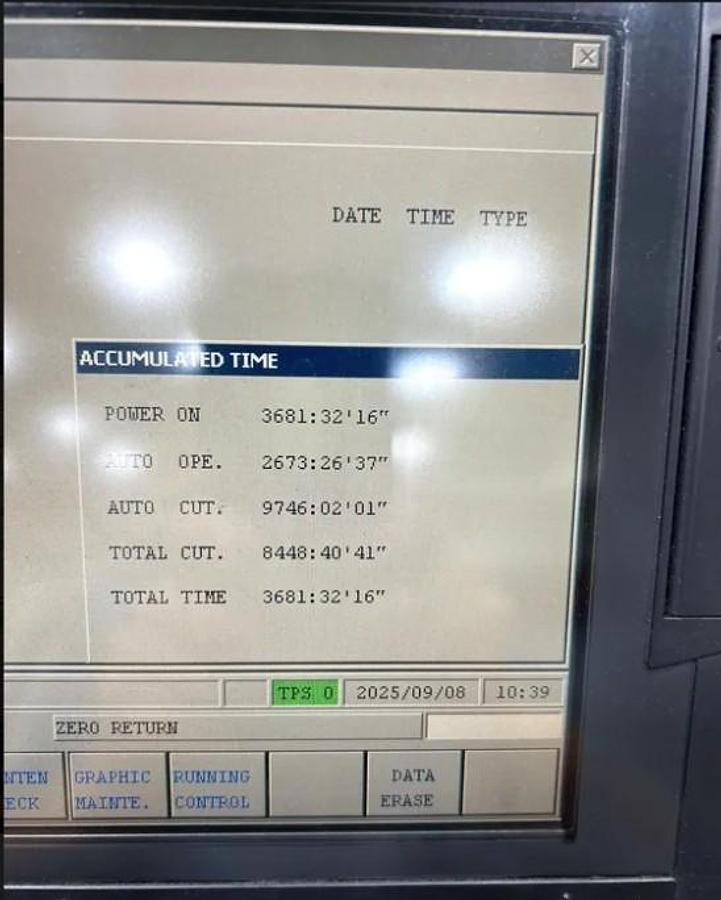

**Total Cutting Hours 8,448**
**Original Owner, Used to Primarily Cut Tool Steel**
Especificaciones
| Fabricante | Mazak |
| Modelo | Nexus QTN 300/1200 |
| Año | 2005 |
| Condición | Usado |
| Número de Stock | 120442 |
| Control | Mazatrol Fusion 640T Nexus |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 26.77" |
| Maximum Cutting Diameter | 16.53" |
| Maximum Machining Length | 48" |
| X-Axis Travel | 8.85" |
| Z-Axis Travel | 49" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3.00" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 35 HP |
| Number of Turret Positions | 12 Position Drum |
| Rapid Traverse Rates X/Z | 1181 IPM / 984 IPM |
| Tailstock Body Travel / Center | 21.75" / MT#5 |
| Machine Dimensions LxWxH | 135.8"x80.7"x78.7" |
| Machine Weight | 15,653 lbs. |
