2017 Yama Seiki GTW-1500Y Multi Axis Lathe

Y Axis Capability

Subspindle

Full C Axis Spindle Rotation Both

Live Milling / Drilling Capability

12 Station Turret

8 Station Gang Style Tool Slide

6" 3 Jaw Hydraulic Chuck on Main Spindle

5" 3 Jaw Hydraulic Chuck on Subspindle

Automatic Tool Eye

Chip Conveyor

Parts Catcher

Parts Conveyor

High Pressure Coolant System

Prepped for a Bar Feed System

USB Port Interface

RS 232 Port Interface

All Available Manuals

All Available Static/Live Holders

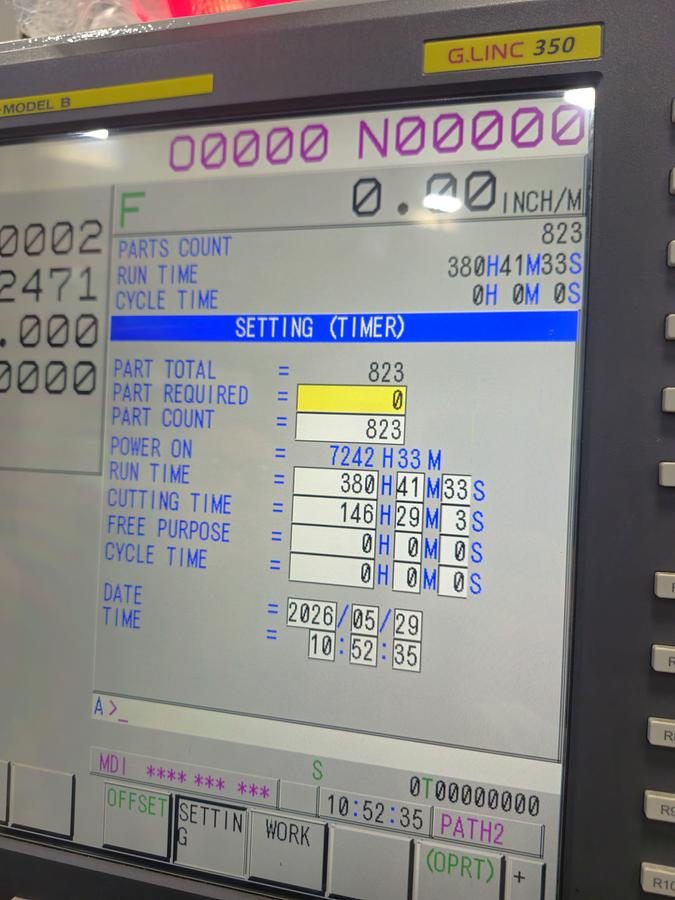

**ONLY 380 RUN TIME HOURS**

**JUST 146 CUT HOURS**

The 2017 Yama Seiki GTW-1500Y is a robust, used multi-axis CNC lathe designed to handle complex machining tasks with precision. It is equipped with a Fanuc 32i-B Series Control, offering advanced capabilities for precise operations. The machine features a main spindle with a 6" hydraulic chuck and a subspindle with a 5" hydraulic chuck, both capable of achieving high speeds, with the main spindle reaching up to 5,000 RPM and the subspindle up to 6,000 RPM.

This lathe provides a maximum swing of 15.7" and a maximum cutting diameter of 9.8", with the ability to handle workpieces up to 8.2" in length. It offers travel lengths of 10.5" in Z1 and 21.6" in Z2, ensuring flexibility and efficiency in operations. The GTW-1500Y also supports a 12-station turret along with additional gang slide positions, offering versatility in tooling arrangements.

Additionally, this lathe boasts rapid traverse rates up to 1180 IPM in the Z-axis, facilitating quick positioning, and is supported by a powerful 25 HP spindle motor. Measuring 100.2" x 81.3" x 79.4" and weighing approximately 8,820 lbs., it is a substantial machine suited for industrial environments requiring precision and efficiency in metalworking applications.
