2005 Haas TM-1P

No Tool Changer

Coolant Pump Kit

Flood Coolant System

Work Light

Full Sheet Metal Enclosure

USB Port Interface

RS 232 Port Interface

Memory Lock Key Switch

15" Color LCD Monitor

Vector Drive Spindle

Single Phase or Three Phase Power

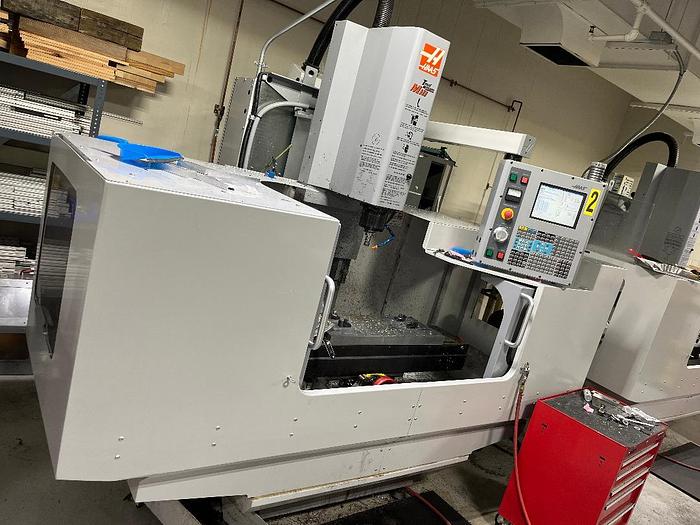

The 2005 Haas TM-1P is a reliable, used 3-Axis Vertical Machining Center designed to provide precision and efficiency in a compact form. It features a Haas CNC Control system, which is user-friendly and known for its stability in operations. The machine boasts a substantial table size of 47.75" x 10.5", capable of handling loads up to 1,000 lbs with ease. Its travel capacities cover 30" on the X-axis, 12" on the Y-axis, and 16" on the Z-axis, offering a versatile range for various machining tasks.

Equipped with a CAT 40 spindle taper, the TM-1P can reach speeds of up to 6,000 RPM, driven by a 7.5 HP spindle motor. Although it doesn't come with a tool changer, it accommodates a maximum tool diameter of 3.5" and can handle individual tool weights up to 12 lbs, suitable for moderate machining jobs. With rapid traverse rates of 400 IPM, productivity is enhanced while maintaining precision.

In terms of dimensions, the machine measures 96" x 72" x 103" and weighs 3,850 lbs, ensuring a sturdy operating base. This model is designed for shops needing robust performance without large spatial requirements, providing a practical solution for a variety of industrial machining needs.
