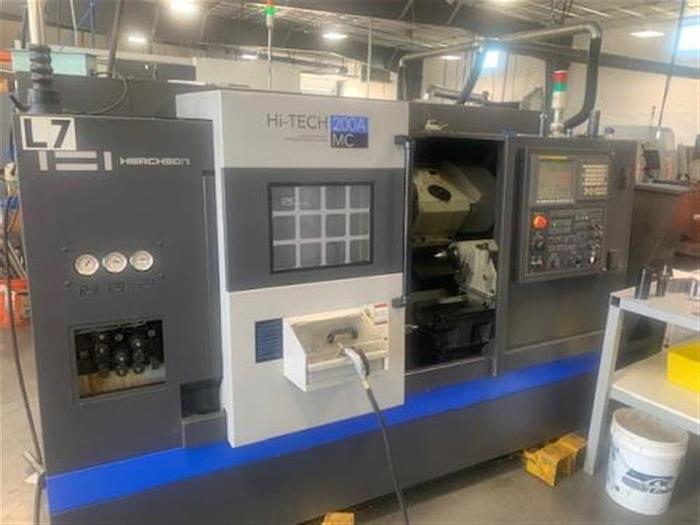

2013 Hwacheon Hitech 200A MC
No longer available
2013 Hwacheon Hitech 200A MC
$42,500 (USD)
California
Description
8" 3 Jaw Hydraulic Chuck Full C Axis Spindle Rotation Live Milling/Drilling Capability Tailstock Parts Catcher Chip Conveyor Tool Presetter RS 232 Port Interface Machine Status Condition Lights Complete Coolant System with Tank & Pump (5) Live Tool Holders Included All Available Manuals All Available Tooling
Specifications
Manufacturer | Hwacheon |
Model | Hitech 200A MC |
Year | 2013 |
Condition | Used |
Stock Number | 116181 |
Quantity | 1 |
Control | Fanuc 21T |
Chuck Size | 8" 3 Jaw Hydraulic |
Maximum Swing | 19.7" |
Maximum Turning Diameter | 12.8" |
Maximum Turning Length | 12.54" |
Maximum Bar Capacity | 2.0" |
X-Axis Travel | 7.68" |
Z-Axis Travel | 16.93" |
C Axis Spindle Rotation | .0001 Degrees |
Spindle Nose / Spindle Bore | A2-6" / 2.95" |
Spindle Speed | 5000 RPM |
Spindle Motor | 20 HP |
Milling Spindle Motor | 3.7 HP |
Number of Tool Positions | 12 Station Turret |
Rapid Traverse Rates | 1181 IPM |
Tailstock Center / Diameter | MT #4 / 3.15" |
Tailstock Quill Travel | 3.94" |
Machine Dimensions | 104.13" x 65.95" x 67.72" |
Machine Weight | 9,590 lbs. |
