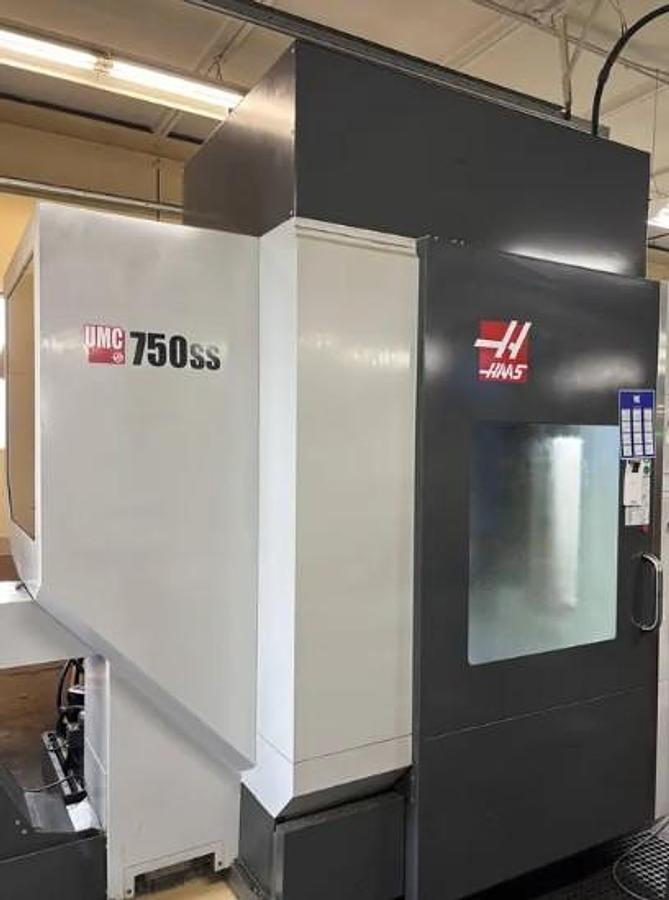

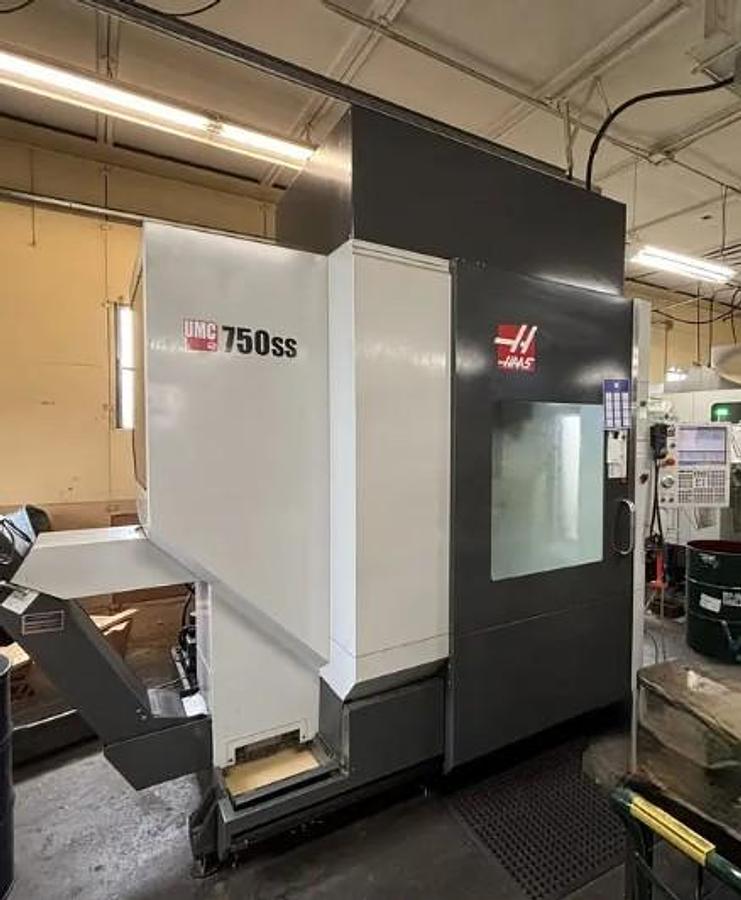

2019 Haas UMC-750SS, Built in 5-Axis Table, Thru the Spindle Coolant, 40 Position ATC, Remote Jog Handle, Rigid Tapping, Wi-Fi Connection
2019 Haas UMC-750SS, Built in 5-Axis Table, Thru the Spindle Coolant, 40 Position ATC, Remote Jog Handle, Rigid Tapping, Wi-Fi Connection
$144,500 (USD)
Location:Illinois
or
Call (863) 439-6066
Description

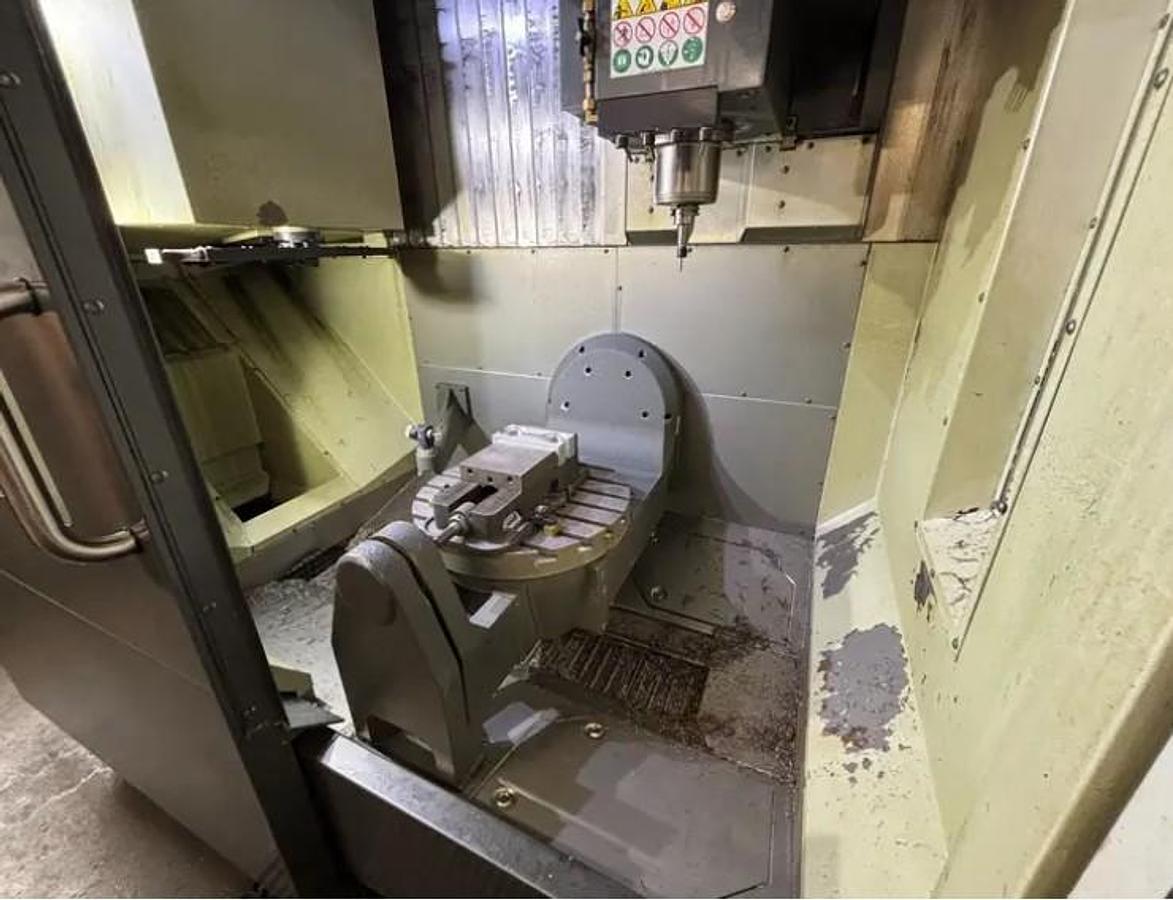

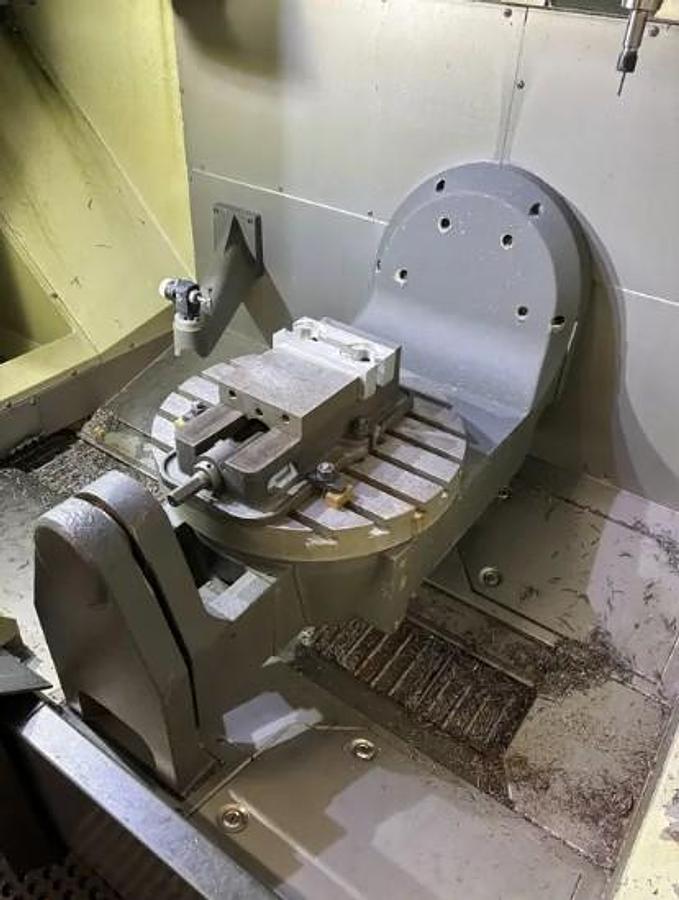

Trunnion Style 5th Axis Table
4th & 5th Axis Drives & Wiring
Coolant Through the Spindle
WIPS Renishaw Part & Tool Probing System
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Intuitive Programming System
Belt Chip Conveyor
40 Station Tool Changer
High Speed Machining
Wi-Fi Connection
Rigid Tapping
Remote Jog Handle
Through the Tool Air Blast
1GB Memory
Second Home Position
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals

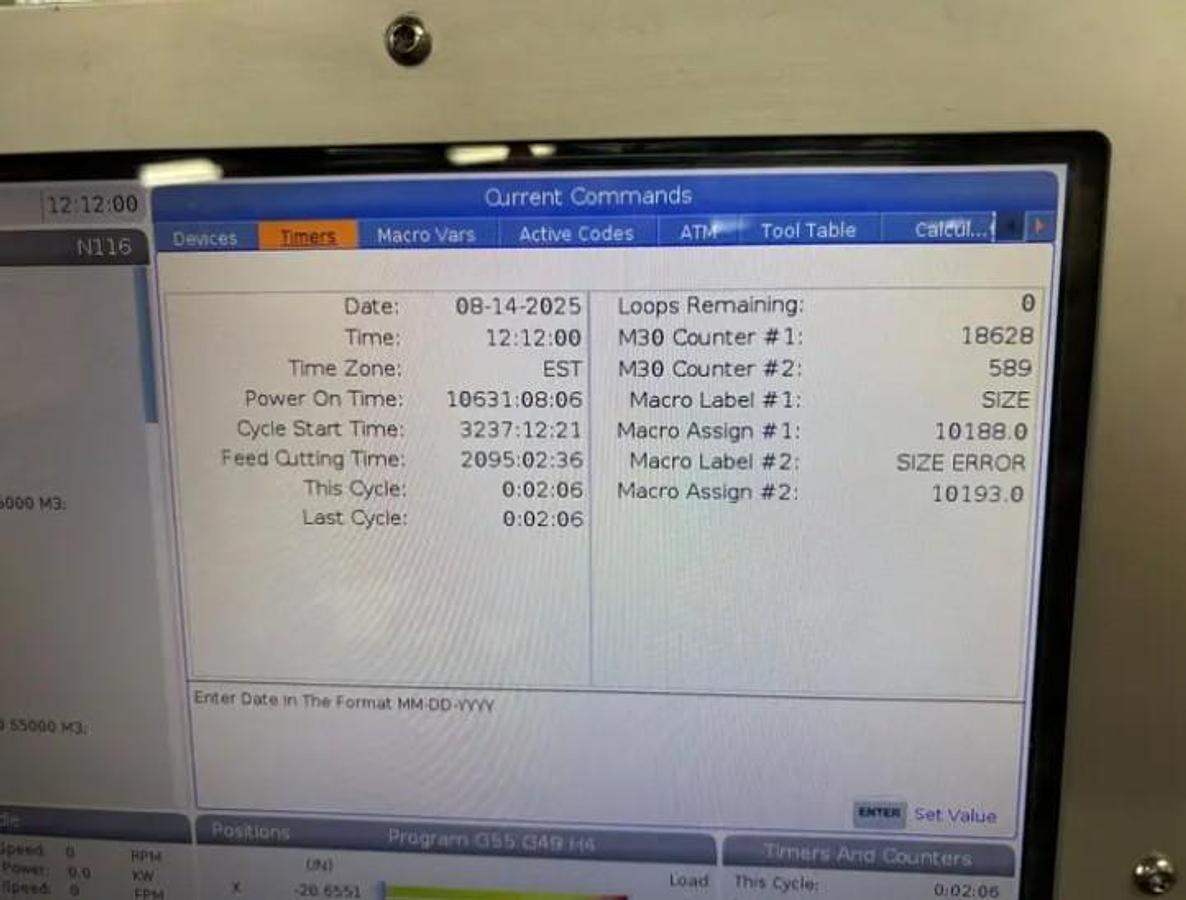

As of August 14th the cutting time hours are 2,095
Machine cut primarily Aluminum, Brass & Stainless Steel
Replacement cost as equipped is $281k
Specifications
| Manufacturer | Haas |
| Model | UMC-750SS, Built in 5-Axis Table, Thru the Spindle Coolant, 40 Position ATC, Remote Jog Handle, Rigid Tapping, Wi-Fi Connection |
| Year | 2019 |
| Condition | Used |
| Stock Number | 120508 |
| Table size | 19.7" x 24.8" |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |

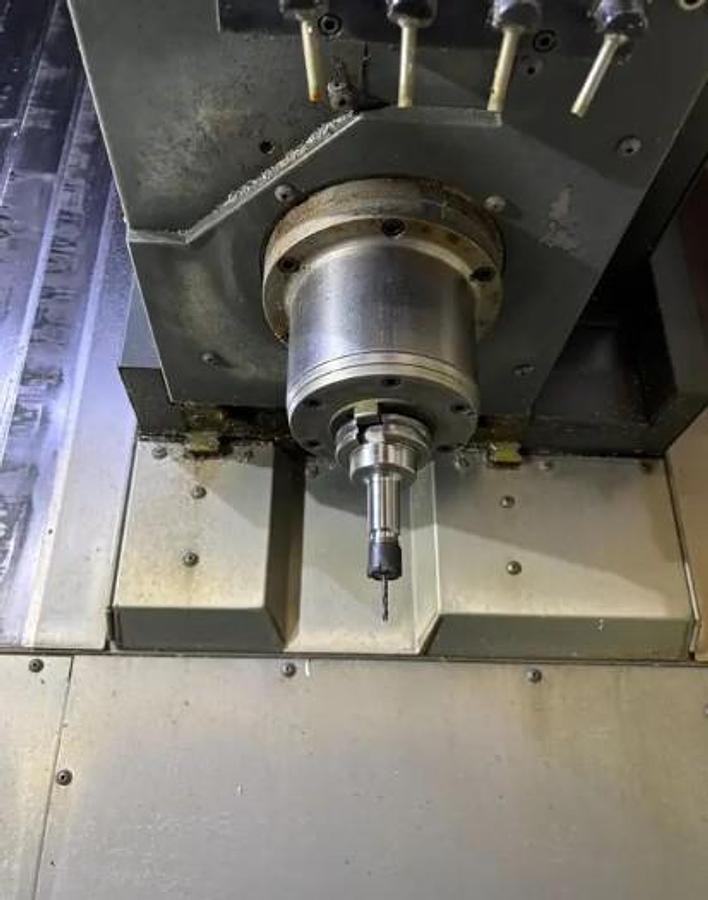

| Spindle taper | CAT #40 |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 19,100 lbs |
