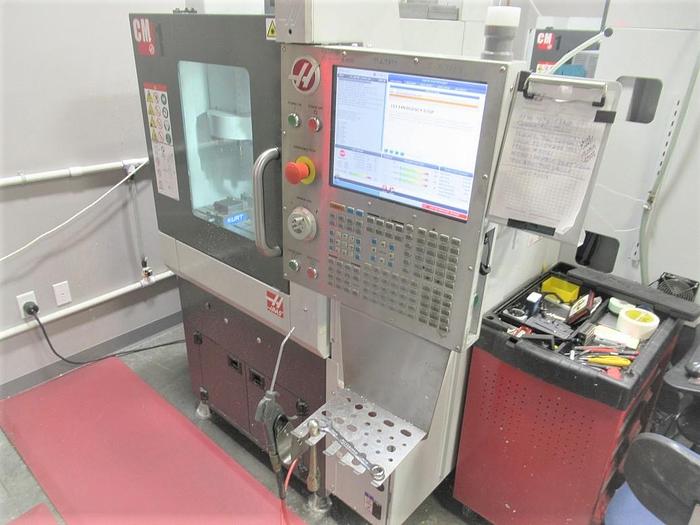

2017 Haas CM-1
No longer available
2017 Haas CM-1
$57,500 (USD)
Illinois
Description
Haas Wireless Probing - Both Tool & Part
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
Haas Visual Part Programming System
High Speed Machining
50,000 RPM Spindle
Rigid Tapping
1 GB Expanded Programming Memory
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Complete 15 Gallon Coolant System w/ Tank & Pump
Ultra Compact Footprint
**ALMOST NO USE**
**Price today at $78,685 as equipped**
Specifications
| Manufacturer | Haas |
| Model | CM-1 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 118415 |
| Machine Control | Haas CNC Control |
| Table Size | 22.5" x 10" |
| Maximum Table Load | 150 lbs |
| X-Axis Travel | 12" |
| Y-Axis Travel | 10" |
| Z-Axis Travel | 14" |
| Spindle Taper | ISO 20 |
| Spindle Speed | 50,000 RPM |
| Spindle Motor | 5 HP |
| Tool Magazine Capacity | 20 Station Umbrella Style ATC |
| Maximum Tool Diameter / Length / Weight | 2.3" / na / 5 lbs |
| Rapid Traverse Rates | 757 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions LxWxH | 62"x78"x92" |
| Machine Weight | 2,200 lbs |
