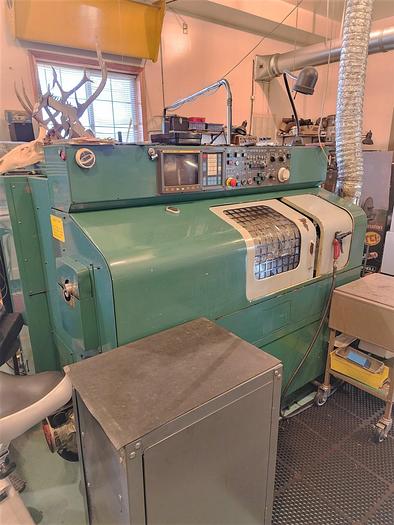

1991 Nakamura Tome TMC15

1991 Nakamura Tome TMC15

$9,950 (USD)

Colorado

orCall (863) 439-6066

Description

10 Position Turret

Chip Conveyor

6" 3 Jaw Hydraulic Chuck

Coolant System with Tank and Pump

RS 232 Port Interface All Available Tooling All Available Manuals


**Nice clean machine in excellent condition from a R&D/Prototyping shop

Specifications

ManufacturerNakamura Tome
ModelTMC-15
Year1991
ConditionUsed
Stock Number118406
ControlFanuc 0T
Chuck Size6" 3 Jaw Chuck
Maximum Swing11.81"
Maximum Cutting Diameter7.09"
Maximum Machining Length10.06"
X-Axis Travel4.33"
Z-Axis Travel10.63"
Spindle Nose / Bore / Bar CapacityA2-5" / 1.85" / 1.34"
Spindle Speeds4,500 RPM
Spindle Motor10 HP
Number of Turret Positions10 Position Turret
Rapid Traverse Rates X/Z472 IPM / 945 IPM
Machine Dimensions LxWxH81" x 50" x 61"
Machine Weight5,060 lbs.
