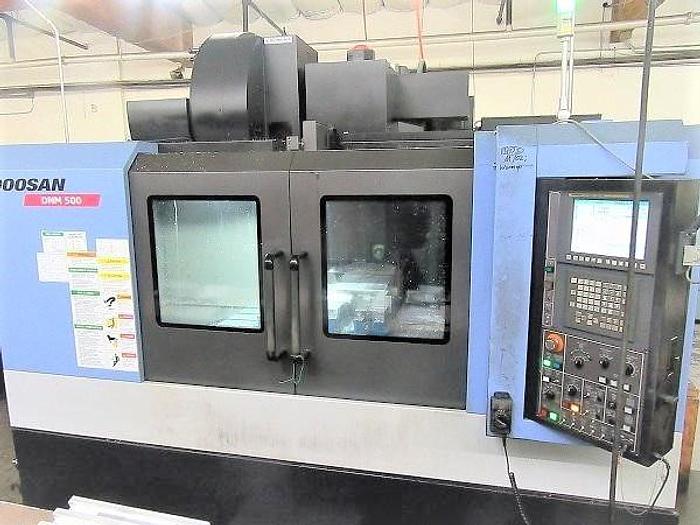

2012 Doosan DNM 500
No longer available
2012 Doosan DNM 500
California
Description
Coolant Through the Spindle
4th Axis Rotary Table
30 Station Side Mounted Tool Changer
Rigid Tapping
Remote Jog Handle
Spindle Orientation
Custom Macro B
Work Light
Machine Status Condition Lights
Wired 220V/3/50-60 Hz Electrics
All Available Manuals
*Great Condition, Mostly Aluminum Machining
*Correct Hours Not Available Due to Batteries Being Changed Last Year
Specifications
Manufacturer | Doosan |
Model | DNM 500 |
Year | 2012 |
Condition | Used |
Stock Number | 117968 |
Machine Control | Fanuc i Series Control |
Table size | 47.24" x 21.25" |
Maximum Table Load | 1,764 lbs. |
X-Axis Travel | 40" |
Y-Axis Travel | 21.25" |
Z-Axis Travel | 20" |
Spindle Taper | CAT #40 |
Spindle Speeds | 12,000 RPM |
Spindle Motor | 20 HP |
Number of Tool Positions | 30 Station Side Mounted ATC |
Tool Change Time Tool to Tool | 1.3 Seconds |
Rapid Traverse Rates X, Y / Z | 1417 IPM / 1181 IPM |
Cutting Feedrates | 590 IPM |
Machine Dimensions | 124" x 107" x 116" |
Machine Weight | 16,500 lbs. |
