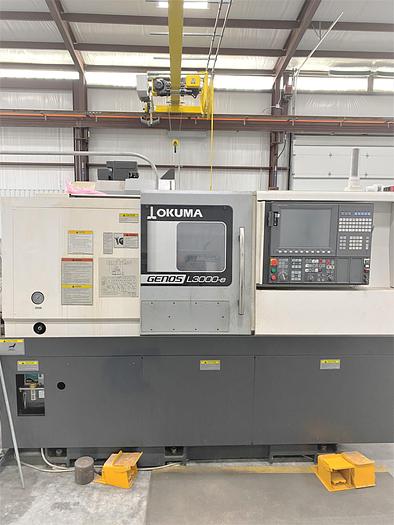

2017 Okuma Genos L3000-e
No longer available
2017 Okuma Genos L3000-e
$83,500 (USD)
Texas
Description
10" 3 Jaw Hydraulic Chuck
Tool Presetter
Chip Conveyor
Tailstock
One Touch Advanced IGF - Conversational
Tool Length Measurement
USB Port Interface
RS 232 Port Interface
Integral Spindle Motor Design
Coolant Tank with Pump
All Available Tool Blocks
All Available Manual
Specifications
Manufacturer | Okuma |
Model | Genos L3000-e |
Year | 2017 |
Condition | Used |
Stock Number | 117884 |
Machine Control | OSP P300LA-E Control |
Chuck Size | 10" 3-Jaw Hydraulic |
Maximum Swing | 20.4" |
Maximum Turning Diameter | 13.39" |
Maximum Machining Length | 19.69" |
X-Axis Travel | 9.25" |
Z-Axis Travel | 17.72" |
Spindle Nose / Bore / Bar Capacity | A2-8" / 3.15" / 2.75" |
Spindle Speed | 38 - 3,800 RPM |
Spindle Motor | 20 HP |
Number of Turret Positions | 12 Station Turret |
Rapid Traverse Rates X/Z | 984 IPM / 1181 IPM |
Tailstock Quill Diameter / Quill Travel / Taper | 3.54" / 3.94" / MT #5 |
Machine Dimensions LxWxH | |
Machine Weight |
