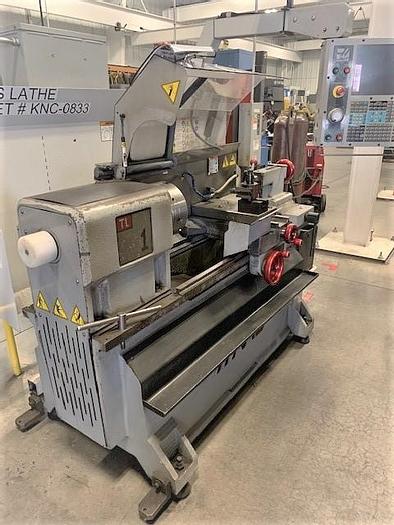

2007 Haas TL-1
No longer available
2007 Haas TL-1
$19,950 (USD)
Ohio
Description
Tool Post
Tailstock
Manual Hand Wheels
8" 3 Jaw Manual Chuck Rigid Tapping Coolant Pump System Flip Down Safety Chip/Coolant Enclosure 1 MB Program Memory RS 232 Port Interface Haas Intuitive Turning System Vector Drive Spindle
Integral Chip-Flow Channel Can Be Wired Either 240V Single or 208V Three Phase Power
Manufactured New in May of 2007
Specifications
| Manufacturer | Haas |
| Model | TL-1 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 117827 |
| Control | Haas 32 BIT |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 1,800 RPM |
| Spindle Motor | 7.5 HP |
| Number of Turret Positions | Tool Post |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 101" x 55" x 78" |
| Machine Weight | 4,000 lbs. |
