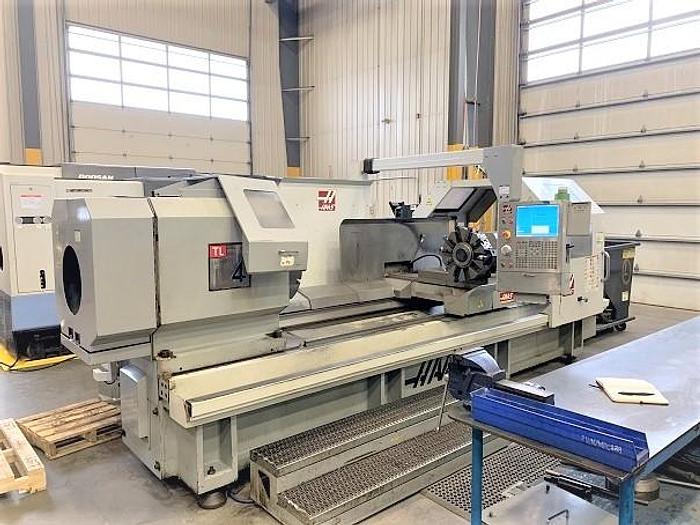

2009 Haas TL-4
No longer available
2009 Haas TL-4
$97,500 (USD)
Alberta, Canada
Description
Front 24" 4 Jaw Chuck with 10" Thru Hole
Rear 24" 3 Jaw Chuck with 10" Thru Hole
Rear Chuck Cover
10 Station Turret Option
Chip Conveyor
Tailstock
Intuitive Programming System
Spindle Orientation
Rigid Tapping
Coolant System with Tank & Pump
15" LCD Color Monitor
USB Port Interface
Wired 220 Voltage
Haas Manual
Specifications
Manufacturer | Haas |
Model | TL-4 |
Year | 2009 |
Condition | Used |
Stock Number | 117808 |
Machine Control | Haas 32 BIT |
Chuck Size | 24" Front & Rear |
Maximum Swing | 35" |
Maximum Swing Over Cross Slide | 16" |
Maximum Cutting Diameter | 35" |
Distance Between Centers | 91" |
X-Axis Travel | 18" |
Z-Axis Travel | 80" |
Spindle Speeds | 0 - 500 RPM |
Spindle Nose / Spindle Bore | A1-20" / 10.81" |
Spindle Motor | 55 HP |
Number of Tool Positions | 10 Position Turret - Option |
Tailstock Bore Taper | #5 MT |
Machine Dimensions LxWxH | 234" (288" w/ chip conveyor) x 100" x 88" |
Machine Weight | 29,380 lbs |
