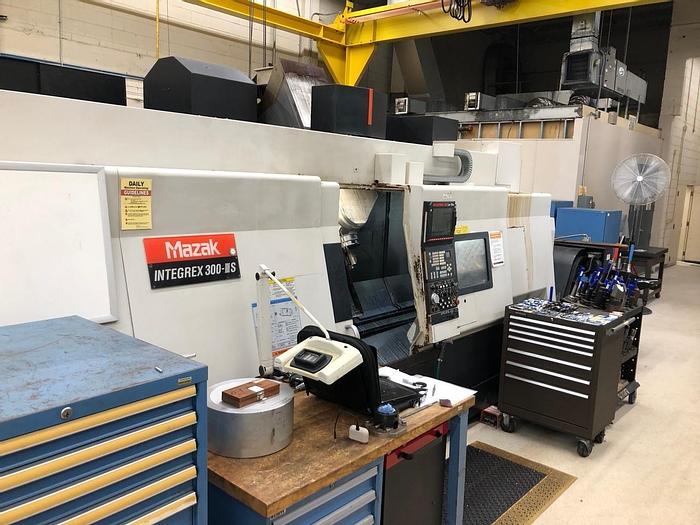

2004 Mazak Integrex 300-IIIS
No longer available
2004 Mazak Integrex 300-IIIS
$119,500 (USD)
Michigan
Description
5-Axis Machining
Automatic Tool Eye
B-Axis Pendulum Style Head
Full C-Axis
Chip Conveyor
RS-232C Port for DNC Interface
PCMCIA Interface 2-Slots
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Integrex 300-IIIS |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117760 |
| Machine Control | Mazatrol Fusion 640MT |
| Chuck Sizes Main / Subspindle | 10" 3-Jaw Hydraulic both spindles |
| Maximum Swing | 33.5" |
| Maximum Turning Diameter | 30" |
| Distance Between Centers | 60" |
| Spindle Nose / Bore / Bar Capacity | A2-8 / 3.46" / 3" |
| X-Axis Travel | 24.8" |
| Y-Axis Travel | 9.06" |
| Z-Axis Travel | 62.41" |
| C-Axis Rotation | .001 Degree |
| B-Axis Tilt Movement | 225 Degrees |
| Spindle Motor | 30 HP |
| Spindle Speed | 4,000 RPM |
| Subspindle Speed | 4,000 RPM |
| Subspindle Motor | 25/20 HP |
| Subspindle Travel | 41.34" |
| Milling Spindle Speed | 12,000 RPM |
| Milling Spindle Motor | 25 HP |
| Tool Magazine Capacity | 40 Position ATC |
| Rapid Traverse Rates (X, Y, Z) | 1496 IPM, 1024 IPM, 1496 IPM |
| Machine Dimensions LxWxH | 202"x93"x110" |
| Machine Weight | 28,700 lbs |
