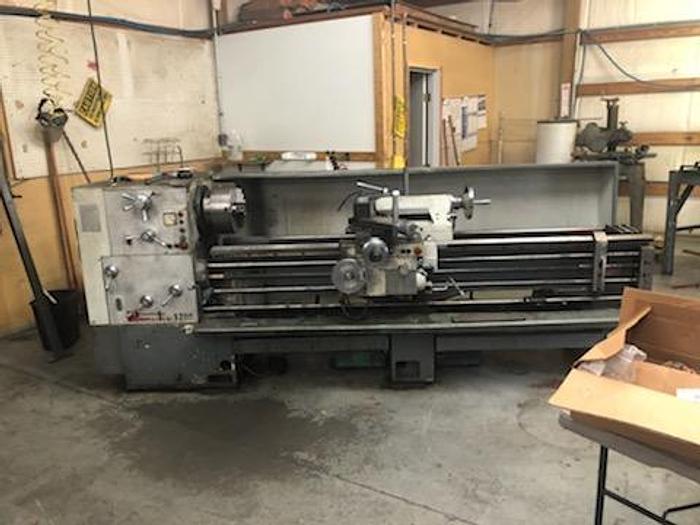

1997 Promaster 1780 Engine Lathe
Sold
1997 Promaster 1780 Engine Lathe
$8,350 (USD)
Dundee, FL
Description
Inch/Metric Threading
Follow Rest (.393" - 3.937" capacities)
Tailstock
Tool Post
10" 3 Jaw Chuck
(2) 12" 3 Jaw Chucks
12" 4 Jaw Chuck
16" 4 Jaw Chuck
(2) Pull Out Chip Trays with Coolant Return
Coolant System with Tank & Pump
230-460V / 3 Phase / 60 HZ
All Available Manuals
Additional Miscellaneous Fixturing
Specifications
| Manufacturer | Promaster |
| Model | 1780 Engine Lathe |
| Year | 1997 |
| Condition | Used |
| Stock Number | 117758 |
| Chuck Size | 12" 3 Jaw Chuck |
| Maximum Swing over Bed | 17.75" |
| Maximum Swing Over Cross Slide | 9" |
| Swing over Gap | 26" |
| Length of Gap from Spindle Face | 10.25" |
| X-Axis Travel | 12.5" |
| Compound Rest Travel | 5.125" |
| Center Distance | 80" |
| Spindle Nose / Spindle Bore | D1-8 Camlock / 3.125" |
| Spindle Speeds | 12 - 2,000 RPM, 24 Speeds |
| Spindle motor | 10 HP |
| Number of Tool Positions | Aloris Style Tool Post |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.1" / 8.34" / #5 MT |
| Machine Dimensions LxWxH | 133"x53"x48" |
| Machine Weight | 7,000 lbs |
