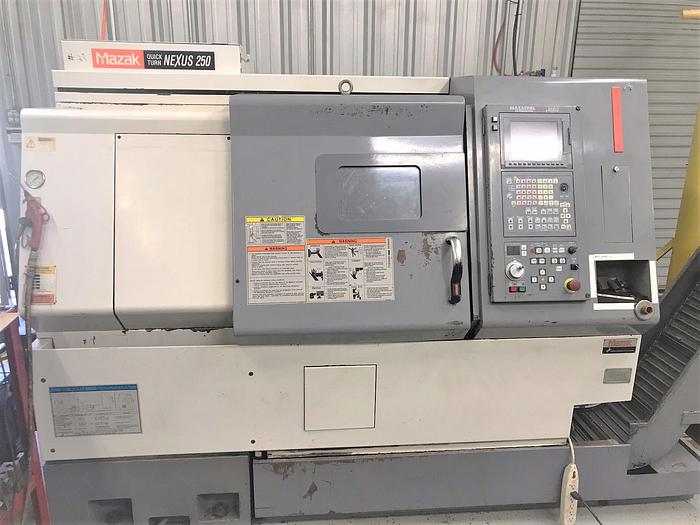

2003 Mazak Nexus QTN 250

Sold

2003 Mazak Nexus QTN 250

$26,500 (USD)

Texas

Description

10" 3 Jaw Hydraulic Chuck

Chip Conveyor

Automatic Tool Eye

Programmable Tailstock

IC Memory Card Interface

PCM CIA Interface (2 slots)

3.5" Floppy Disk Interface

RS232 Port Interface

Hydraulic Pressure Interlock

Chuck Open/Close Confirmation

Door Interlock

Tool Path Solid Model Multi-Tap Transformer Coolant Tank with Pump All Available Manuals

All Available Tooling

208V Electrics

Manufactured New in September of 2003


Specifications

ManufacturerMazak
ModelNexus QTN 250
Year2003
ConditionUsed
Stock Number117672
ControlMazatrol Fusion 640T Nexus
Chuck Size10" 3-Jaw Hydraulic
Maximum Swing24"
Maximum Cutting Diameter14"
Maximum Machining Length18.7"
X-Axis Travel7.5"
Z-Axis Travel20.25"
Spindle Nose / Bore / Bar CapacityA2-8" / 3.46" / 3.0"
Spindle Speeds4,000 RPM
Spindle Motor35 HP
Number of Turret Positions12 Position Drum
Rapid Traverse Rates X/Z1181 / 1299 IPM
Tailstock Body Travel / Center20.625" / MT#5
Machine Dimensions LxWxH102" x 80" x 76"
Machine Weight10,400 lbs.
