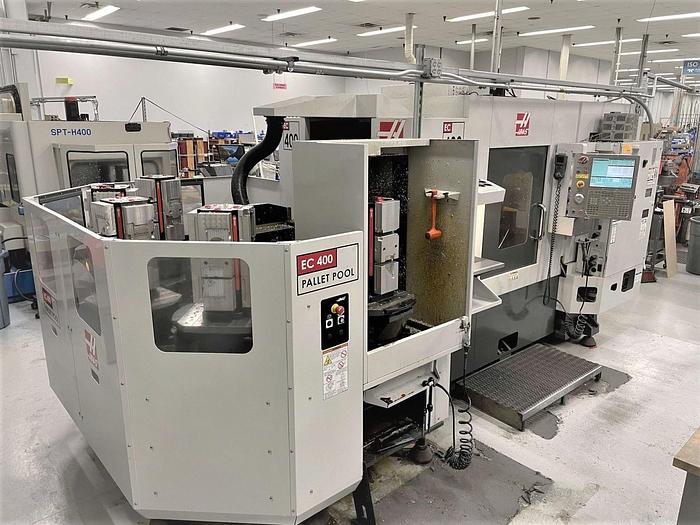

2011 Haas EC-400 PP

2011 Haas EC-400 PP

$129,950 (USD)

Nebraska

orCall (863) 439-6066

Description

6 Pallet Pool Configuation

(6) Chick 6" x 6" x 20" Tombstones

Full 4th Axis Rotary Table

70 Station Tool Changer

12,000 RPM Spindle

Coolant Thru the Spindle - 1,000 PSI

Chip Conveyor

Visual Quick Code Programming

Renishaw Wireless Intuitive Probing System

8 Spare M Codes

750 M Expanded Programming Memory

Spindle Orientation

User Definable Macros

Coordinate Rotation & Scaling

Haas Intuitive Programming System

Programmable Coolant Nozzle

Color Remote Jog Handle

Rigid Tapping

USB Port Interface

RS232 Port Interface

All Available Manuals

Wired 195-260V Electrics

ONLY 2,222 Feed Cutting Hours

Machine manufactured new in October of 2011


Specifications

ManufacturerHaas
ModelEC-400 PP
Year2011
ConditionUsed
Stock Number117661
Machine ControlHaas CNC Control
Table Size / Number of Pallets15.75" x 15.75" / 6 Pallet Changer
Maximum Table Load880 lbs
Pallet Indexing.001 Degrees Full 4th
X-Axis Travel22"
Y-Axis Travel25"
Z-Axis Travel22"
Spindle Speed12,000 RPM
Spindle TaperCAT 40
Spindle Motor20 HP Vector Direct Drive
Tool Magazine Capacity70 Station Tool Changer
Maximum Tool Diameter / Length / Weight5" / 12" / 12 lbs
Rapid Traverse Rates1,400 IPM
Cutting Feedrates833 IPM
Machine Dimensions LxWxH202" x 102" x 113"
Pallet Pool Dimensions127" x 91" x 85"
Machine Weight31,200 lbs all together
