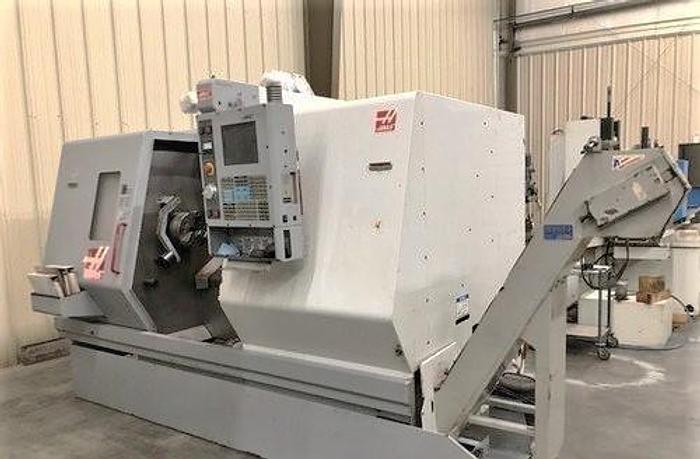

2004 Haas SL-30T
No longer available
2004 Haas SL-30T
South Carolina
Description
10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Programmable Tailstock
Tool Presetter
High Intensity Lighting
Rigid Tapping
208/230 V 3 phase Electrics
All Available Manuals
All Available Tool Blocks
Servo On Time 11,673
Motion Hours 7,311
Spindle Hours 7,311
Specifications
| Manufacturer | Haas |
| Model | SL-30T |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117658 |
| Machine Control | Haas 32 BIT |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 30" |
| Maximum Swing Over Cross Slide | 14.5" |
| Maximum Cutting Diameter | 17" |
| Maximum Turning Length | 34" |
| Maximum Bar Capacity | 3.0" |
| Distance Between Centers | 39" |
| X-Axis Travel | 11.3" |
| Z-Axis Travel | 34" |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 3,400 RPM |
| Spindle Motor | 30 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Taper | 33.5" / MT #4 |
| Machine Dimensions LxWxH | 161" x 77" x 74" |
| Machine Weight | 16,000 lbs |
