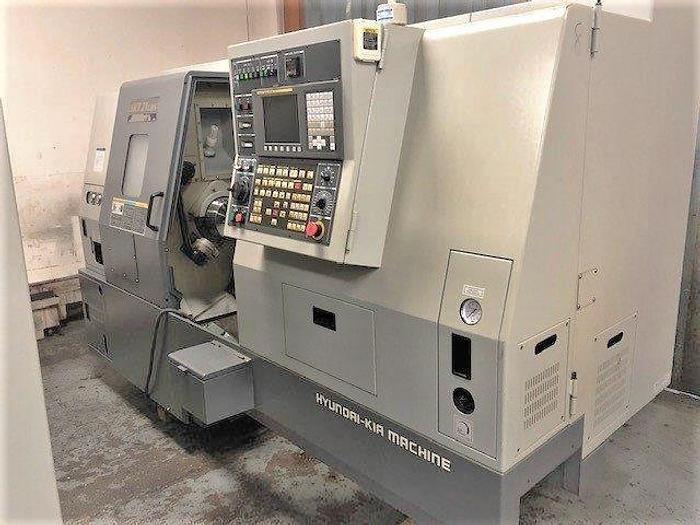

2006 Hyundai-Kia SKT-21LMS

2006 Hyundai-Kia SKT-21LMS

$39,500 (USD)

New Jersey

orCall (863) 439-6066

Description

Full C Axis Spindle Rotation

Live Milling/Drilling Capability

Subspindle

8" 3 Jaw Samchully Hydraulic Chuck on Main Spindle

5" 3 Jaw Samchully Hydraulic Chuck on Subspindle

Automatic Parts Catcher

Tool Presetter

Servo Turret

All Available Static Tooling

(4) Live Tool Holders

All Available Manuals

Complete Coolant System with Tank & Pump

Specifications

ManufacturerHyundai-Kia
ModelSKT-21LMS
Year2006
ConditionUsed
Stock Number117730
Machine ControlFanuc 0iTC
Chuck types main / subspindle8" Hydraulic Chuck / 5" Hydraulic Chuck
Maximum swing21.6"
Maximum cutting diameter10"
Maximum machining length20.9"
Maximum bar capacity2.8"
X-axis travel8.7"
Z-axis travel21.7"
Minimum spindle index increment0.001 Degree
Spindle nose / spindle boreA2-6" / 3.14"
Spindle speed40 - 4000 RPM
Spindle motor 30 min. / cont.20 HP / 15 HP
Subspindle Speed30 - 6,000 RPM
Subspindle Motor5 HP
Rotary tool speed30 - 3000 RPM
Rotary tool motor5.5 HP
Turret type / live positions12 Station VDI / 6 Positions
Rapid traverse ratesn/a
Machine dimensions124"x66"x68"
Machine weight10,100 lbs.
