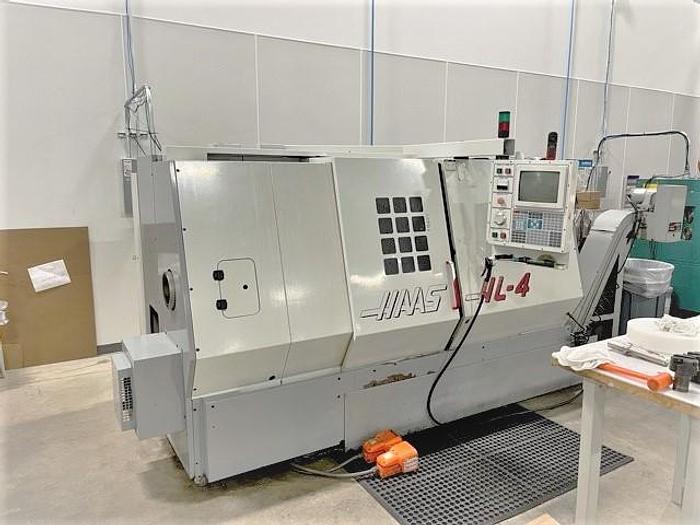

1997 Haas HL-4
No longer available
1997 Haas HL-4
$18,500 (USD)
Texas
Description
10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Tailstock
Gearbox Spindle
Rigid Tapping
RS 232 Port Interface
Coolant Tank with Pump
Machine Status Condition Lights
208/230 V 3 phase
All Available Tool Blocks
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | HL-4 |
| Year | 1997 |
| Condition | Used |
| Stock Number | 117612 |
| Machine Control | Haas 32 BIT |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 24" |
| Maximum Swing Over Cross Slide | 9.5" |
| Maximum Cutting Diameter | 14.5" |
| Maximum Cutting Length | 34" |
| Maximum Bar Capacity | 2.5" |
| Distance Between Centers | 39" |
| X-Axis Travel | 8.6" |
| Z-Axis Travel | 34" |
| Spindle Nose / Spindle Bore | A2-6" / 3.00" |
| Spindle Speeds | 3,500 rpm |
| Spindle Motor | 30 HP |
| Spindle Torque | 283 ft/lbs |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 700 IPM |
| Tailstock Body Travel / Center | 33.5" / MT #4 |
| Machine Dimensions LxWxH | 135" x 73" x 76" |
| Machine Weight | 14,000 lbs |
