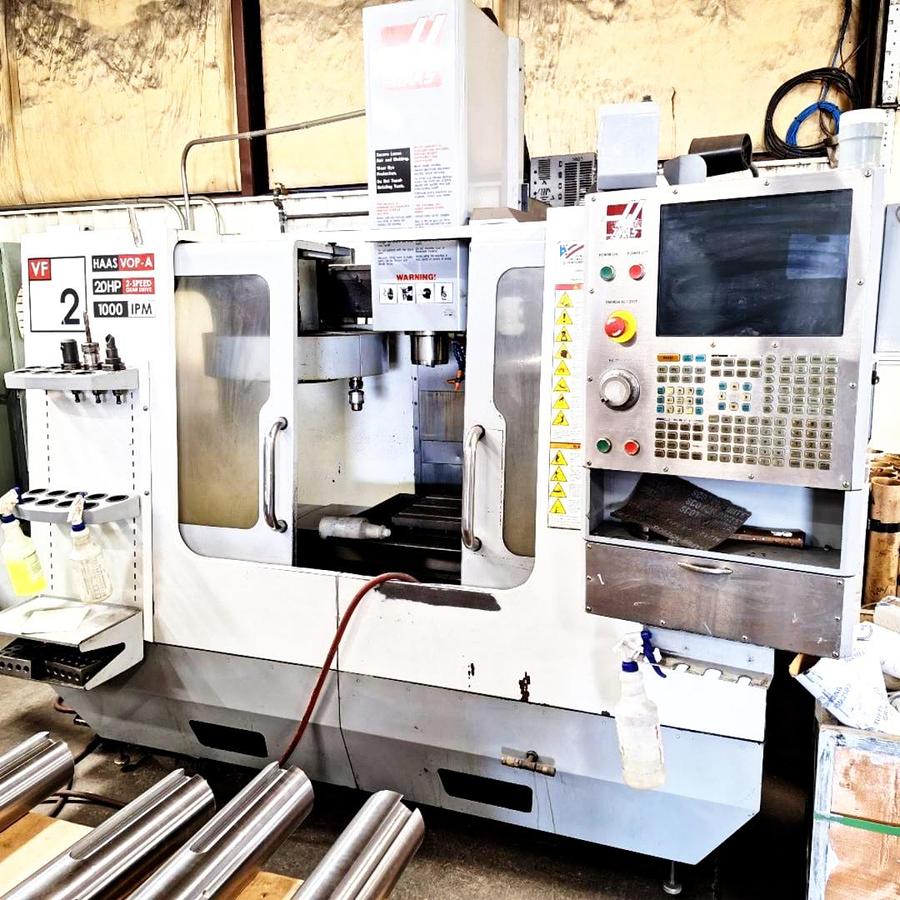

2007 Haas VF-2B

2007 Haas VF-2B

Contáctenos para conocer el precio

Ubicación:Carolina del Norte

o
Llamar (863) 439-6066

Descripción

Programmable Coolant Nozzle

Auger Style Chip Conveyor

1 MB Program Memory

Visual Quick Code Programming

Spindle Orientation

Coordinate Rotation & Scaling

2 Speed Gearbox

USB Port Interface

3.5" Floppy Disk Drive Interface

RS232 Port Interface

Flood Coolant

Coolant Tank with Pump

208-230V / 3 Phase / 60 HZ

All Available Manuals

Mostrar Todo

Especificaciones

FabricanteHaas
ModeloVF-2B
Año2007
CondiciónUsado
Número de Stock120403
Table Size36"x14"
Maximum Table Load3,000 lbs
X-Axis Travel30"
Y-Axis Travel16"
Z-Axis Travel20"
Distance Spindle Nose to Table Top4" - 24"
Spindle TaperCAT 40
Spindle Speed7,500 rpm
Spindle Motor20 HP
Tool Magazine Capacity20 Position ATC
Maximum Tool Diameter / Length / Weight3.5" / NA / 12 lbs
Rapid Traverse Rates1000 IPM
Machine Dimensions LxWxH88"x92.5"x104"
Machine Weight8,000 lbs
