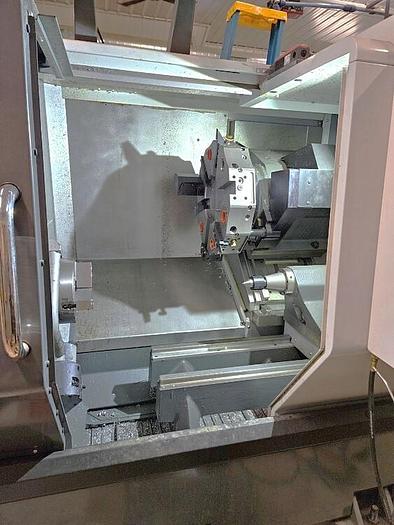

2015 Haas ST-20Y
2015 Haas ST-20Y
Contact us for price
Illinois
orCall (863) 439-6066
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
Y-Axis Capability
Belt Type Chip Conveyor
10" 3 Jaw Hydraulic Chuck
Automatic Tool Presetter
Programmable Tailstock
High-Intensity Lighting
Enclosure Exhaust System
12 Station Hybrid Turret 6 VDI BOT
Spindle Orientation
Rigid Tapping
Visual Programming System
1 GB Memory
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface
(2) Axial Live Tool Holders
(2) Radial Live Tool Holders

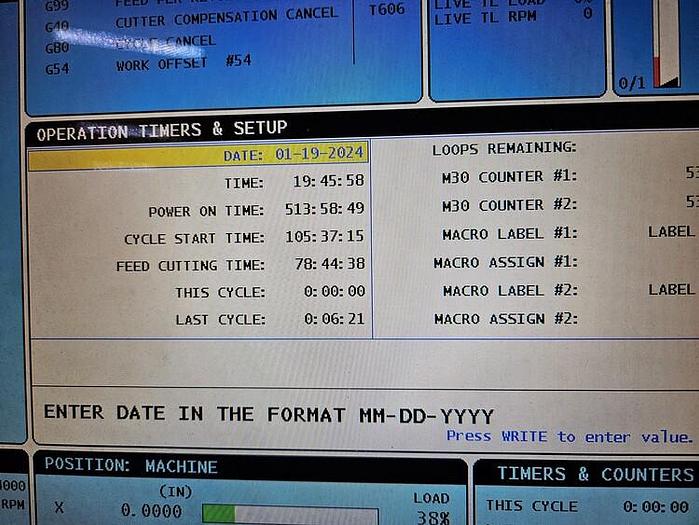

**Less than 100 Feed Cutting Hours**
Specifications
| Manufacturer | Haas |
| Model | ST-20Y |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119336 |
| Machine Control | Haas CNC Control |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Speeds | 4,000 RPM |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 3.5" / 2.5" |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Number of Turret Positions | 12 Station Hybrid Turret 6 VDI BOT |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 10,480 lbs. |
