2006 Hurco TM8
2006 Hurco TM8
Contact us for price
Tennessee
orCall (863) 439-6066
Description
Tailstock
Coolant System
Chip Conveyor
Status Lights
All Available Manuals
Specifications
| Manufacturer | Hurco |
| Model | TM8 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119316 |

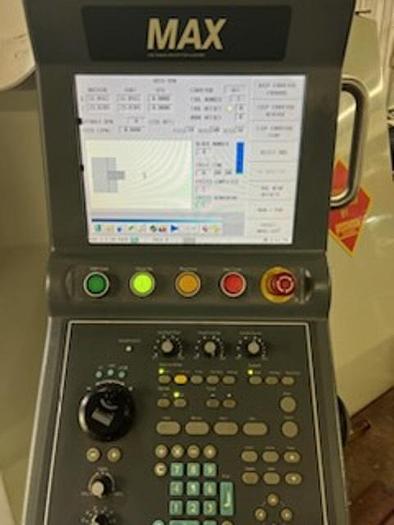

| Machine Control | Hurco Max |
| Chuck Size | 8" 3-Jaw Hydrualic |
| Maximum Swing over Bed | 21.6" |
| Maximum Swing Over Cross Slide | 12.6" |
| Maximum Turning Diameter | 12" |
| Maximum Machining Length | 18.8" |
| X-Axis Travel | 8" |
| Z-Axis Travel | 20" |
| Distance Between Centers | 23" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.44" / 2.04" |
| Spindle Motor | 15 hp |
| Rapid Traverse Rates X/Z | 750 IPM / 945 IPM |
| Number of Turret Positions | 10 |
| Machine Dimensions LxWxH | 116"x91"x80" |
| Machine Weight | 8,500 lbs |
