2019 Haas ST-20Y
2019 Haas ST-20Y
Contact us for price
Ontario, Canada
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
Y-Axis Capability
1,000 PSI High-Pressure Coolant System
Programmable Tailstock

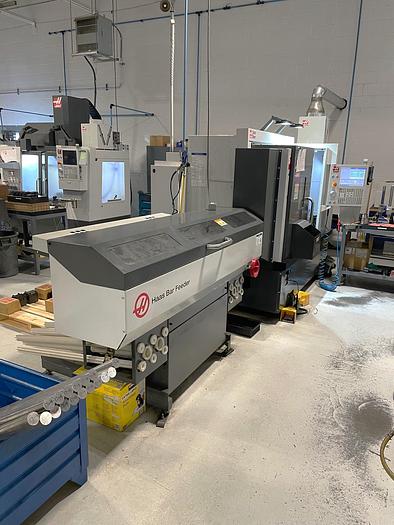

Haas Servo Bar 300 Barfeed Unit

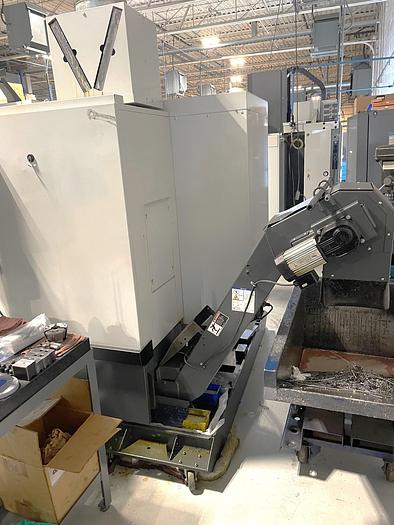

Belt Type Chip Conveyor
Parts Catcher
Automatic Tool Presetter

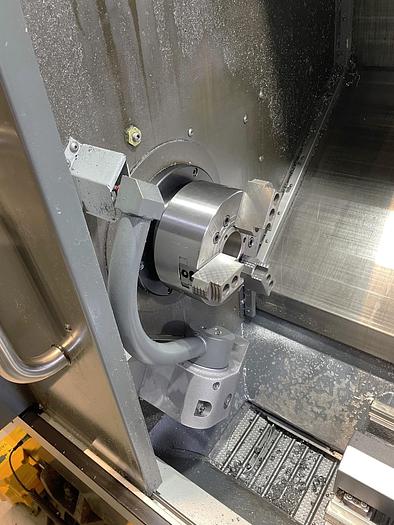

8.3" 3 Jaw Hydraulic Chuck

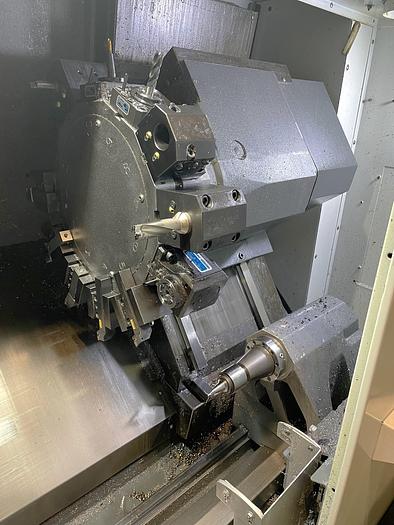

BMT65 Type Turret
Remote Jog Handle
High-Intensity Lighting
Chip Tray Filter Kit
Enclosure Exhaust System
Early Power Failure Detection Module
Spindle Orientation
Visual Programming System
1 GB Memory
Auto Door
Rigid Tapping
Memory Lock Key Switch
Haas Connect Option
WIFI
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Good Amount of Static & Live Tooling Included
Collection of Holders as seen on Pallet Photo includes the following:
-(21) Pieces OD Turning
-(32) Pieces ID Turning
-(4) Pieces 90 Degree Live Tooling
-(7) Pieces Straight Live Tooling
Specifications
| Manufacturer | Haas |
| Model | ST-20Y |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119314 |
| Machine Control | Haas CNC Control |
| Chuck Size | 8.3" 3-Jaw Hydraulic |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Speeds | 4,000 RPM |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 3.5" / 2.5" |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Number of Turret Positions | 12 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 10,480 lbs. |
