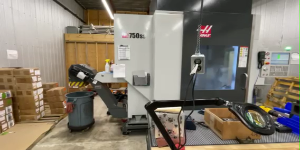

2018 Haas UMC-750SS
2018 Haas UMC-750SS
Contact us for price
Ontario, Canada
Description
Trunnion Style 5th Axis Table
300 PSI Coolant Through the Spindle
12,000 RPM Spindle
Programmable Coolant Nozzle
Haas Wireless Probing Package
Rotary Scales
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Intuitive Programming System
Belt Chip Conveyor
40 Station Tool Changer
High Speed Machining with Look Ahead
Rigid Tapping
Large Remote Jog Handle
High Intensity Lighting - 24V
Enclosure Exhaust System
Through the Tool Air Blast
Auxiliary Coolant Filter System for TSC
WiFi Connection for Haas Control
USB Port Interface
RS 232 Port Interface
Tough Screen Control
Dynamic Work Offsets
Early Power Failure Detection Module
Coolant System with Tank & Pump
Wired 220V Electrics
All Available Manuals
**Machine was manufactured new in July of 2018**
**Cycle Start Hours 6,614**
**Feed Cutting Hours 4,617**
Specifications
| Manufacturer | Haas |
| Model | UMC-750SS |
| Year | 2018 |
| Condition | Used |
| Stock Number | 119185 |
| Table size | 19.7" x 24.8" |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 19,100 lbs |
