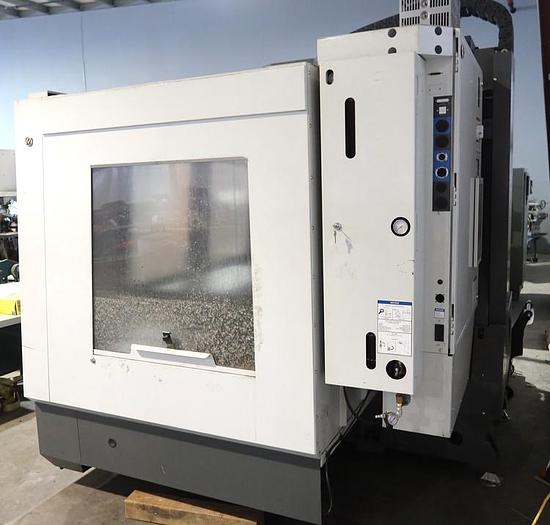

2015 Haas VF-3YT/40 w/4th axis
2015 Haas VF-3YT/40 w/4th axis
Contact us for price
Washington, DC
orCall (863) 439-6066
Description

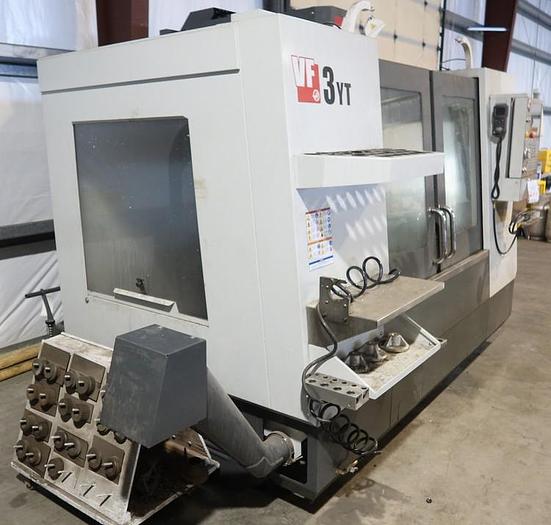

Auger Style Chip Conveyor
Wired for 4th Axis

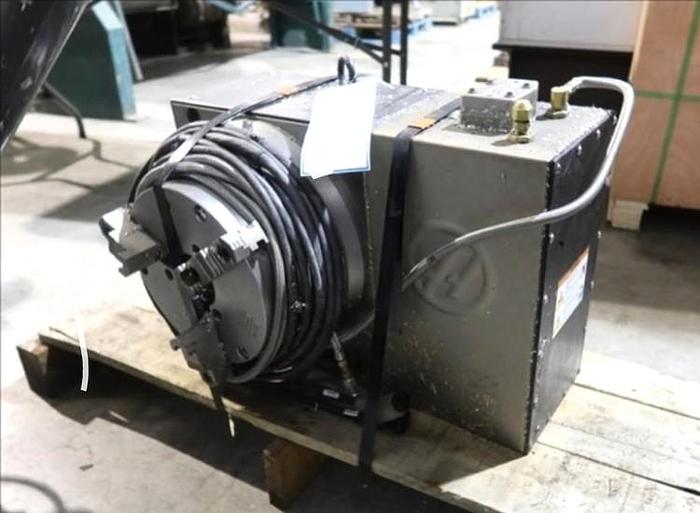

Haas 4th Axis Rotary Table w/ 3-Jaw Chuck
4th Axis Drive and Wiring Programmable Coolant Nozzle
Coolant Thru the Spindle

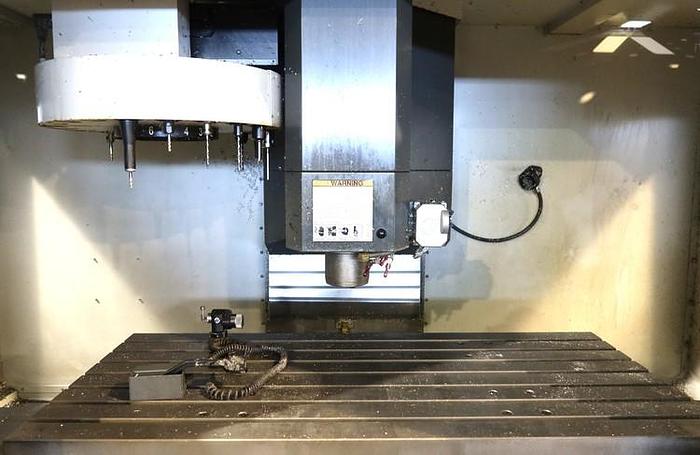

Tool & Part Probe (WIPS)
High-Intensity Lighting
Rigid Tapping Spindle Orientation Coordinate Rotation & Scaling
Haas Intuitive Programming System Remote Jog Handle User Definable Macros
Oil Skimmer Vector Drive Spindle
Ethernet Interface
USB Port Interface RS 232 Port Interface Coolant System All Available Manuals
**no air was available so the spindle wasn't able to be shown running in the video, it's prepped and located at a Riggers facility**
Specifications
| Manufacturer | Haas |
| Model | VF-3YT/40 w/4th axis |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119100 |

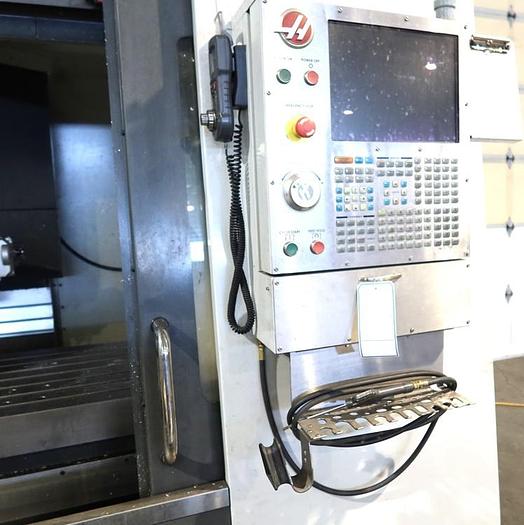

| Control | Haas CNC Control |
| Table Size | 52" x 23" |
| Maximum Weight on Table | 4,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 29" |
| X-axis travel | 40" |
| Y-Axis Travel | 26" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 8,100 RPM - 2 Speed Gearbox |
| Spindle Motor | 30 HP |

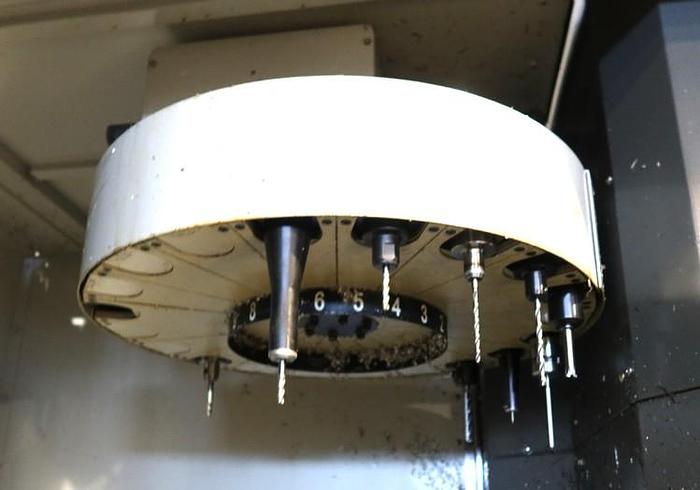

| Number of Tool Positions | 20 Station Umbrella Style ATC |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Tool Change Time Chip to Chip | 4.2 seconds |
| Rapid Traverse Rates | 710 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions | 158" x 135" |
| Machine Weight | 15,900 lbs. |
