2021 Okuma LB3000EXII-MYW 800 w/OGL10 Gantry Loader
2021 Okuma LB3000EXII-MYW 800 w/OGL10 Gantry Loader
Contact us for price
Illinois
orCall (863) 439-6066
Description
Live Tooling with Internal Coolant
Y-Axis
C-Axis
High-Pressure Coolant Pump

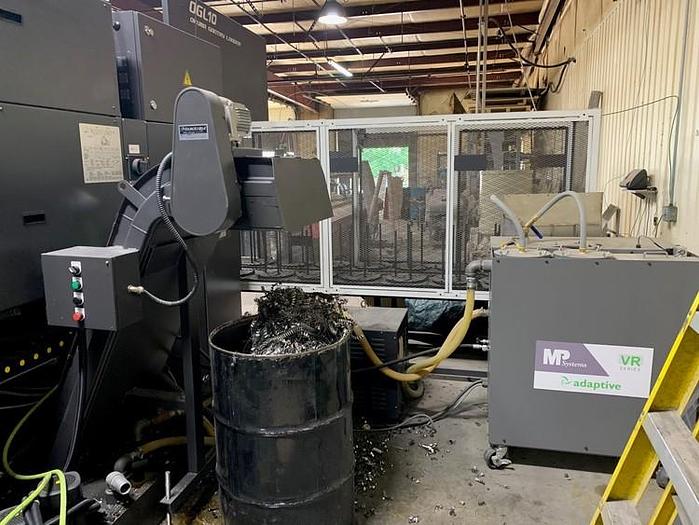

Chip Conveyor Rear Discharge
Auto Moon Roof

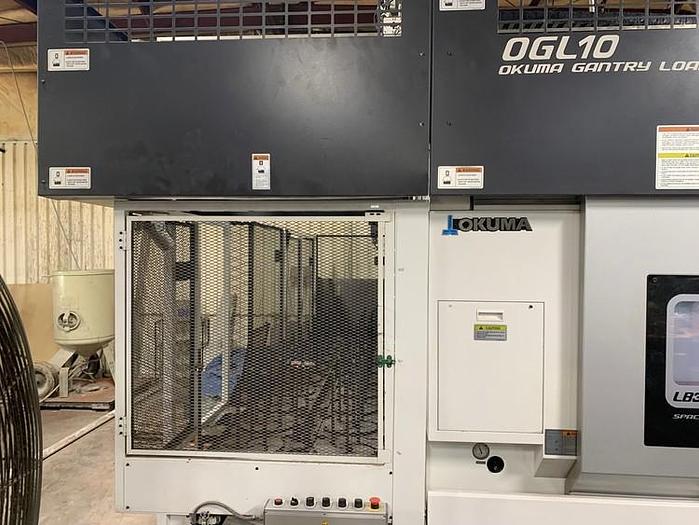

OGL-10 Loader with 20 Station Stacker Table
Automatic Tool Presetter
Coolant Hi/Lo Pressure Switchable
1,000 psi Coolant System
MP Ak Circui Breaker Kit
Shower Coolant
Remote Jog Handle
Multi-Tool Function
Parts Catcher Prep
Side Option Box for Film Panel
Home Position Function G20
Rapid Traverse Override Switch
Specifications
| Manufacturer | Okuma |
| Model | LB3000EXII-MYW 800 w/OGL10 Gantry Loader |
| Year | 2021 |
| Condition | Used |
| Stock Number | 119029 |

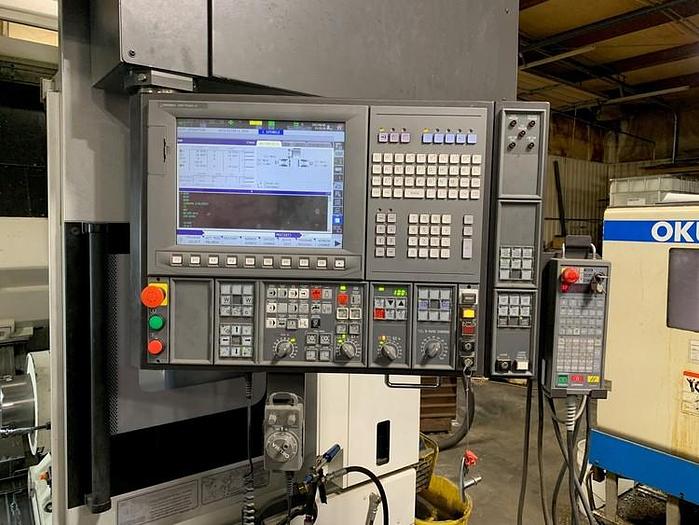

| Machine Control | Okuma OSP-P300LA |
| Chuck Sizes Main / Subspindle | 10" / 6" |
| Maximum Swing | 22.83" |
| Maximum Turning Diameter | 13.39" |
| Center distance | 42.72" |
| X-Axis Travel | 10.24" |
| Y-Axis Travel | +2.76" / -1.77" |
| Z-Axis Travel | 39.76" |
| C-Axis Rotation | 360 Degrees |
| Main Spindle Bore | 3.59" |
| Subspindle Bore | 2.44" |
| Main Spindle Motor | 40 hp |
| Subspindle Motor | 15 hp |
| Main & Subspindle Speeds | 5,000 RPM / 6,000 RPM |
| Milling Spindle Motor | 15 hp |
| Milling Spindle Speed | 6,000 rpm |
| Number of Turret Positions | 12 |
| Machine Dimensions LxWxH | 133"x80"x97" w/o Gantry |
| Machine Weight | 15,070 lbs w/o Gantry |
